SPECpower_ssj2008
Aggregate Performance Report
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkEdge SE100 | ssj_ops@100% = 2,943,394 ssj_ops@100% per Host = 981,131 ssj_ops@100% per JVM = 61,321 |
||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Multi Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Aug 18, 2025 |
| Hardware Availability: | May-2025 | Software Availability: | Sep-2024 | Publication: | Sep 9, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 2,467,916 | ||
| Calibration 2 | 2,904,790 | ||
| Calibration 3 | 2,988,855 | ||
| ssj_ops@calibrated=2,946,823 | |||
| 100% | 99.9% | 2,946,823 | 2,943,394 |
| 90% | 90.0% | 2,652,140 | 2,652,253 |
| 80% | 79.9% | 2,357,458 | 2,354,925 |
| 70% | 69.9% | 2,062,776 | 2,060,122 |
| 60% | 60.0% | 1,768,094 | 1,769,253 |
| 50% | 50.0% | 1,473,411 | 1,472,093 |
| 40% | 40.0% | 1,178,729 | 1,178,217 |
| 30% | 29.9% | 884,047 | 880,338 |
| 20% | 20.0% | 589,365 | 589,739 |
| 10% | 10.0% | 294,682 | 295,998 |
| Active Idle | 0 | 0 | |
| # of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
|---|---|---|---|---|---|---|
| 3 | 3 | 48 | 48 | 48.0 | 3 | 48 |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 3 |
| Comment: | 'SUT' |
| Hardware per Node | |
|---|---|
| Hardware Vendor: | Lenovo Global Technology |
| Model: | ThinkEdge SE100 |
| Form Factor: | 1U |
| CPU Name: | Intel Core Ultra 7 255H |
| CPU Characteristics: | 16 Core, 2.0GHz, 24MB L3 Cache |
| CPU Frequency (MHz): | 2000 |
| CPU(s) Enabled: | 16 cores, 1 chip, 16 cores/chip |
| Hardware Threads: | 16 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 64 KB I + 48 KB D on chip per core |
| Secondary Cache: | 3 MB I+D on chip per core |
| Tertiary Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 2 x 8192 MB |
| Memory Details: | 8GB 1Rx16 PC5-6400B; slots 1 and 2 populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 240GB M.2 SSD P/N:4XB7A89422 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x 1GbE RJ45 |
| NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software per Node | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Microsoft Windows 11 Enterprise |
| OS Version: | Version 24H2(OS Build 26100.1742) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10 |
| JVM Command-line Options: | -server -Xmn450m -Xms512m -Xmx512m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210 |
| JVM Affinity: | start /NODE [0] /AFFINITY [0x1,0x2,0x4,0x8,0x10,0x20,0x40,0x80,0x100,0x200,0x400,0x800,0x1000,0x2000,0x4000,0x8000] |
| JVM Instances: | 16 |
| JVM Initial Heap (MB): | 512 |
| JVM Maximum Heap (MB): | 512 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | DZE104U |
| Management Firmware Version: | DZX310C |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | KB5043080 |

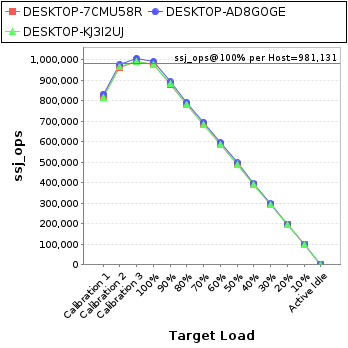

| Host | ssj_ops@100% |
|---|---|
| DESKTOP-7CMU58R | 974,491 |
| DESKTOP-AD8GOGE | 991,012 |
| DESKTOP-KJ3I2UJ | 977,891 |
| ssj_ops@100% | 2,943,394 |
| ssj_ops@100% per Host | 981,131 |
| ssj_ops@100% per JVM | 61,321 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 818,957 | ||
| Calibration 2 | 963,242 | ||
| Calibration 3 | 989,619 | ||
| ssj_ops@calibrated=976,431 | |||
| 100% | 99.8% | 976,431 | 974,491 |
| 90% | 89.9% | 878,788 | 878,294 |
| 80% | 80.0% | 781,145 | 781,552 |
| 70% | 69.9% | 683,502 | 682,354 |
| 60% | 60.1% | 585,858 | 586,669 |
| 50% | 49.9% | 488,215 | 487,406 |
| 40% | 40.0% | 390,572 | 390,494 |
| 30% | 29.9% | 292,929 | 291,679 |
| 20% | 20.2% | 195,286 | 196,846 |
| 10% | 10.0% | 97,643 | 97,903 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 832,164 | ||
| Calibration 2 | 977,221 | ||
| Calibration 3 | 1,006,587 | ||
| ssj_ops@calibrated=991,904 | |||
| 100% | 99.9% | 991,904 | 991,012 |
| 90% | 90.0% | 892,714 | 892,315 |
| 80% | 79.8% | 793,523 | 791,182 |
| 70% | 70.1% | 694,333 | 695,347 |
| 60% | 60.0% | 595,143 | 594,945 |
| 50% | 50.0% | 495,952 | 495,925 |
| 40% | 39.8% | 396,762 | 395,162 |
| 30% | 30.0% | 297,571 | 297,540 |
| 20% | 19.9% | 198,381 | 197,201 |
| 10% | 10.0% | 99,190 | 99,326 |
| Active Idle | 0 | 0 | |

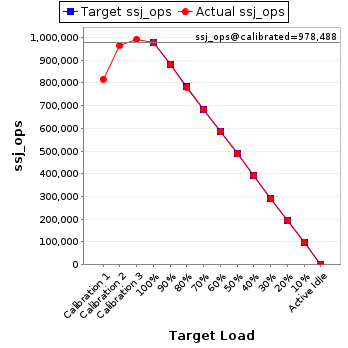

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 816,795 | ||
| Calibration 2 | 964,326 | ||
| Calibration 3 | 992,649 | ||
| ssj_ops@calibrated=978,488 | |||
| 100% | 99.9% | 978,488 | 977,891 |
| 90% | 90.1% | 880,639 | 881,645 |
| 80% | 79.9% | 782,790 | 782,191 |
| 70% | 69.7% | 684,941 | 682,420 |
| 60% | 60.1% | 587,093 | 587,638 |
| 50% | 50.0% | 489,244 | 488,762 |
| 40% | 40.1% | 391,395 | 392,561 |
| 30% | 29.8% | 293,546 | 291,119 |
| 20% | 20.0% | 195,698 | 195,693 |
| 10% | 10.1% | 97,849 | 98,769 |
| Active Idle | 0 | 0 | |
