Lenovo Global Technology ThinkEdge SE100 ssj_ops@100% = 974,491
ssj_ops@100% per JVM = 60,906
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Aug 18, 2025
Hardware Availability: May-2025 Software Availability: Sep-2024 Publication: Sep 9, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     818,957
Calibration 2     963,242
Calibration 3     989,619
ssj_ops@calibrated=976,431
100% 99.8% 976,431 974,491
90% 89.9% 878,788 878,294
80% 80.0% 781,145 781,552
70% 69.9% 683,502 682,354
60% 60.1% 585,858 586,669
50% 49.9% 488,215 487,406
40% 40.0% 390,572 390,494
30% 29.9% 292,929 291,679
20% 20.2% 195,286 196,846
10% 10.0% 97,643 97,903
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 3
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkEdge SE100
Form Factor: 1U
CPU Name: Intel Core Ultra 7 255H
CPU Characteristics: 16 Core, 2.0GHz, 24MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 1 chip, 16 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 48 KB D on chip per core
Secondary Cache: 3 MB I+D on chip per core
Tertiary Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8GB 1Rx16 PC5-6400B; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A89422
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1GbE RJ45
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows 11 Enterprise
OS Version: Version 24H2(OS Build 26100.1742)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn450m -Xms512m -Xmx512m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: start /NODE [0] /AFFINITY [0x1,0x2,0x4,0x8,0x10,0x20,0x40,0x80,0x100,0x200,0x400,0x800,0x1000,0x2000,0x4000,0x8000]
JVM Instances: 16
JVM Initial Heap (MB): 512
JVM Maximum Heap (MB): 512
JVM Address Bits: 64
Boot Firmware Version: DZE104U
Management Firmware Version: DZX310C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5043080
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
DESKTOP-7CMU58R.001 86,861
DESKTOP-7CMU58R.002 87,045
DESKTOP-7CMU58R.003 49,112
DESKTOP-7CMU58R.004 50,588
DESKTOP-7CMU58R.005 51,761
DESKTOP-7CMU58R.006 51,149
DESKTOP-7CMU58R.007 51,032
DESKTOP-7CMU58R.008 49,382
DESKTOP-7CMU58R.009 51,412
DESKTOP-7CMU58R.010 51,377
DESKTOP-7CMU58R.011 89,223
DESKTOP-7CMU58R.012 90,611
DESKTOP-7CMU58R.013 90,782
DESKTOP-7CMU58R.014 89,524
DESKTOP-7CMU58R.015 17,591
DESKTOP-7CMU58R.016 17,040
ssj_ops@100% 974,491
ssj_ops@100% per JVM 60,906
Graph of per-instance results

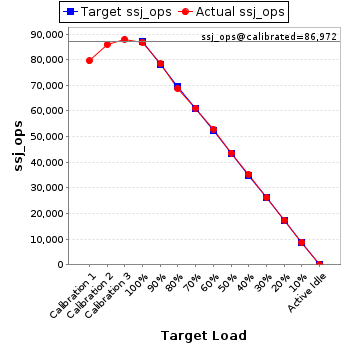

JVM 'DESKTOP-7CMU58R.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,518
Calibration 2     85,954
Calibration 3     87,990
ssj_ops@calibrated=86,972
100% 99.9% 86,972 86,861
90% 90.1% 78,275 78,329
80% 79.1% 69,577 68,772
70% 70.3% 60,880 61,142
60% 60.9% 52,183 52,935
50% 50.1% 43,486 43,586
40% 40.6% 34,789 35,288
30% 30.2% 26,092 26,296
20% 20.0% 17,394 17,421
10% 10.0% 8,697 8,654
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,194
Calibration 2     86,911
Calibration 3     87,802
ssj_ops@calibrated=87,357
100% 99.6% 87,357 87,045
90% 89.5% 78,621 78,178
80% 79.5% 69,885 69,480
70% 68.8% 61,150 60,113
60% 59.9% 52,414 52,301
50% 49.4% 43,678 43,178
40% 40.0% 34,943 34,956
30% 29.8% 26,207 26,074
20% 19.9% 17,471 17,350
10% 10.2% 8,736 8,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     36,054
Calibration 2     48,421
Calibration 3     49,924
ssj_ops@calibrated=49,173
100% 99.9% 49,173 49,112
90% 91.1% 44,255 44,804
80% 80.0% 39,338 39,319
70% 68.1% 34,421 33,501
60% 60.3% 29,504 29,670
50% 49.8% 24,586 24,465
40% 40.0% 19,669 19,654
30% 30.4% 14,752 14,928
20% 19.6% 9,835 9,633
10% 10.1% 4,917 4,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     37,858
Calibration 2     50,117
Calibration 3     51,319
ssj_ops@calibrated=50,718
100% 99.7% 50,718 50,588
90% 90.3% 45,646 45,809
80% 80.4% 40,574 40,786
70% 70.0% 35,503 35,519
60% 60.1% 30,431 30,458
50% 49.5% 25,359 25,084
40% 39.7% 20,287 20,129
30% 29.3% 15,215 14,850
20% 20.8% 10,144 10,542
10% 9.8% 5,072 4,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     38,685
Calibration 2     50,716
Calibration 3     51,759
ssj_ops@calibrated=51,238
100% 101.0% 51,238 51,761
90% 90.4% 46,114 46,337
80% 80.8% 40,990 41,390
70% 70.0% 35,866 35,890
60% 59.7% 30,743 30,580
50% 51.1% 25,619 26,194
40% 39.4% 20,495 20,203
30% 29.2% 15,371 14,979
20% 19.8% 10,248 10,158
10% 10.3% 5,124 5,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,268
Calibration 2     51,025
Calibration 3     52,417
ssj_ops@calibrated=51,721
100% 98.9% 51,721 51,149
90% 90.1% 46,549 46,579
80% 80.1% 41,377 41,453
70% 69.7% 36,205 36,044
60% 60.4% 31,033 31,252
50% 49.2% 25,861 25,450
40% 40.1% 20,688 20,762
30% 29.8% 15,516 15,433
20% 20.5% 10,344 10,604
10% 9.9% 5,172 5,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     38,187
Calibration 2     50,268
Calibration 3     51,736
ssj_ops@calibrated=51,002
100% 100.1% 51,002 51,032
90% 89.1% 45,902 45,427
80% 79.1% 40,801 40,362
70% 70.3% 35,701 35,873
60% 59.8% 30,601 30,524
50% 49.1% 25,501 25,029
40% 39.9% 20,401 20,353
30% 29.4% 15,301 14,982
20% 20.8% 10,200 10,603
10% 10.0% 5,100 5,104
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     37,635
Calibration 2     49,277
Calibration 3     50,580
ssj_ops@calibrated=49,929
100% 98.9% 49,929 49,382
90% 91.0% 44,936 45,451
80% 79.7% 39,943 39,804
70% 70.0% 34,950 34,936
60% 59.1% 29,957 29,485
50% 48.7% 24,964 24,316
40% 39.3% 19,972 19,645
30% 30.3% 14,979 15,119
20% 20.2% 9,986 10,092
10% 9.4% 4,993 4,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,282
Calibration 2     51,052
Calibration 3     52,336
ssj_ops@calibrated=51,694
100% 99.5% 51,694 51,412
90% 89.3% 46,525 46,143
80% 79.7% 41,355 41,178
70% 70.6% 36,186 36,489
60% 59.2% 31,016 30,619
50% 49.1% 25,847 25,377
40% 40.2% 20,678 20,758
30% 30.2% 15,508 15,611
20% 20.5% 10,339 10,616
10% 9.7% 5,169 4,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,469
Calibration 2     51,120
Calibration 3     52,650
ssj_ops@calibrated=51,885
100% 99.0% 51,885 51,377
90% 90.0% 46,697 46,712
80% 80.8% 41,508 41,944
70% 70.0% 36,320 36,318
60% 59.3% 31,131 30,770
50% 50.9% 25,943 26,408
40% 39.6% 20,754 20,524
30% 29.5% 15,566 15,328
20% 20.0% 10,377 10,383
10% 9.6% 5,189 4,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,646
Calibration 2     88,901
Calibration 3     89,555
ssj_ops@calibrated=89,228
100% 100.0% 89,228 89,223
90% 89.1% 80,305 79,533
80% 80.4% 71,383 71,699
70% 69.9% 62,460 62,359
60% 59.7% 53,537 53,252
50% 49.9% 44,614 44,524
40% 40.1% 35,691 35,753
30% 30.1% 26,768 26,893
20% 20.2% 17,846 18,062
10% 10.3% 8,923 9,203
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,677
Calibration 2     89,719
Calibration 3     91,342
ssj_ops@calibrated=90,530
100% 100.1% 90,530 90,611
90% 89.4% 81,477 80,930
80% 80.7% 72,424 73,044
70% 70.2% 63,371 63,509
60% 60.7% 54,318 54,922
50% 50.4% 45,265 45,654
40% 40.2% 36,212 36,396
30% 29.6% 27,159 26,837
20% 20.1% 18,106 18,195
10% 10.2% 9,053 9,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,220
Calibration 2     90,276
Calibration 3     91,287
ssj_ops@calibrated=90,782
100% 100.0% 90,782 90,782
90% 89.8% 81,703 81,525
80% 80.6% 72,625 73,203
70% 69.9% 63,547 63,424
60% 60.4% 54,469 54,830
50% 50.4% 45,391 45,724
40% 39.7% 36,313 36,065
30% 30.3% 27,234 27,516
20% 20.2% 18,156 18,329
10% 9.9% 9,078 9,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,219
Calibration 2     89,010
Calibration 3     90,463
ssj_ops@calibrated=89,737
100% 99.8% 89,737 89,524
90% 90.2% 80,763 80,981
80% 79.7% 71,789 71,564
70% 70.5% 62,816 63,230
60% 60.5% 53,842 54,305
50% 50.3% 44,868 45,152
40% 39.9% 35,895 35,823
30% 29.2% 26,921 26,175
20% 20.1% 17,947 18,026
10% 10.3% 8,974 9,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,621
Calibration 2     15,284
Calibration 3     19,430
ssj_ops@calibrated=17,357
100% 101.3% 17,357 17,591
90% 91.5% 15,622 15,881
80% 81.0% 13,886 14,051
70% 69.4% 12,150 12,054
60% 60.9% 10,414 10,566
50% 49.6% 8,679 8,608
40% 41.4% 6,943 7,191
30% 30.1% 5,207 5,221
20% 20.3% 3,471 3,521
10% 10.0% 1,736 1,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-7CMU58R.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,424
Calibration 2     15,189
Calibration 3     19,028
ssj_ops@calibrated=17,109
100% 99.6% 17,109 17,040
90% 91.6% 15,398 15,674
80% 78.9% 13,687 13,504
70% 69.9% 11,976 11,952
60% 59.6% 10,265 10,200
50% 50.6% 8,554 8,657
40% 40.9% 6,843 6,996
30% 31.8% 5,133 5,435
20% 19.3% 3,422 3,310
10% 10.2% 1,711 1,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
