Lenovo Global Technology ThinkEdge SE100 ssj_ops@100% = 991,012
ssj_ops@100% per JVM = 61,938
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Aug 18, 2025
Hardware Availability: May-2025 Software Availability: Sep-2024 Publication: Sep 9, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     832,164
Calibration 2     977,221
Calibration 3     1,006,587
ssj_ops@calibrated=991,904
100% 99.9% 991,904 991,012
90% 90.0% 892,714 892,315
80% 79.8% 793,523 791,182
70% 70.1% 694,333 695,347
60% 60.0% 595,143 594,945
50% 50.0% 495,952 495,925
40% 39.8% 396,762 395,162
30% 30.0% 297,571 297,540
20% 19.9% 198,381 197,201
10% 10.0% 99,190 99,326
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 3
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkEdge SE100
Form Factor: 1U
CPU Name: Intel Core Ultra 7 255H
CPU Characteristics: 16 Core, 2.0GHz, 24MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 1 chip, 16 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 48 KB D on chip per core
Secondary Cache: 3 MB I+D on chip per core
Tertiary Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8GB 1Rx16 PC5-6400B; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A89422
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1GbE RJ45
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows 11 Enterprise
OS Version: Version 24H2(OS Build 26100.1742)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn450m -Xms512m -Xmx512m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: start /NODE [0] /AFFINITY [0x1,0x2,0x4,0x8,0x10,0x20,0x40,0x80,0x100,0x200,0x400,0x800,0x1000,0x2000,0x4000,0x8000]
JVM Instances: 16
JVM Initial Heap (MB): 512
JVM Maximum Heap (MB): 512
JVM Address Bits: 64
Boot Firmware Version: DZE104U
Management Firmware Version: DZX310C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5043080
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
DESKTOP-AD8GOGE.001 88,076
DESKTOP-AD8GOGE.002 90,941
DESKTOP-AD8GOGE.003 51,647
DESKTOP-AD8GOGE.004 51,710
DESKTOP-AD8GOGE.005 51,862
DESKTOP-AD8GOGE.006 52,610
DESKTOP-AD8GOGE.007 52,212
DESKTOP-AD8GOGE.008 49,343
DESKTOP-AD8GOGE.009 52,114
DESKTOP-AD8GOGE.010 52,083
DESKTOP-AD8GOGE.011 91,400
DESKTOP-AD8GOGE.012 91,692
DESKTOP-AD8GOGE.013 90,608
DESKTOP-AD8GOGE.014 90,081
DESKTOP-AD8GOGE.015 17,497
DESKTOP-AD8GOGE.016 17,136
ssj_ops@100% 991,012
ssj_ops@100% per JVM 61,938
Graph of per-instance results
JVM 'DESKTOP-AD8GOGE.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,298
Calibration 2     87,656
Calibration 3     89,216
ssj_ops@calibrated=88,436
100% 99.6% 88,436 88,076
90% 90.5% 79,592 80,045
80% 79.0% 70,749 69,837
70% 70.0% 61,905 61,910
60% 60.6% 53,062 53,580
50% 49.9% 44,218 44,098
40% 40.0% 35,374 35,385
30% 30.8% 26,531 27,280
20% 20.1% 17,687 17,795
10% 10.2% 8,844 8,992
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-AD8GOGE.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,794
Calibration 2     89,700
Calibration 3     91,515
ssj_ops@calibrated=90,607
100% 100.4% 90,607 90,941
90% 89.6% 81,546 81,176
80% 79.1% 72,486 71,688
70% 70.0% 63,425 63,453
60% 59.6% 54,364 54,034
50% 50.0% 45,304 45,312
40% 39.9% 36,243 36,144
30% 29.3% 27,182 26,592
20% 19.7% 18,121 17,828
10% 10.1% 9,061 9,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

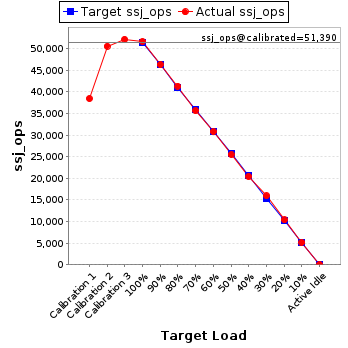

JVM 'DESKTOP-AD8GOGE.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     38,441
Calibration 2     50,590
Calibration 3     52,190
ssj_ops@calibrated=51,390
100% 100.5% 51,390 51,647
90% 90.1% 46,251 46,309
80% 80.4% 41,112 41,343
70% 69.3% 35,973 35,628
60% 59.9% 30,834 30,785
50% 49.6% 25,695 25,474
40% 39.7% 20,556 20,399
30% 31.0% 15,417 15,933
20% 20.1% 10,278 10,354
10% 10.0% 5,139 5,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-AD8GOGE.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,449
Calibration 2     51,296
Calibration 3     52,757
ssj_ops@calibrated=52,027
100% 99.4% 52,027 51,710
90% 89.8% 46,824 46,711
80% 80.6% 41,621 41,914
70% 68.6% 36,419 35,698
60% 59.3% 31,216 30,865
50% 49.8% 26,013 25,886
40% 40.1% 20,811 20,887
30% 29.5% 15,608 15,370
20% 20.5% 10,405 10,654
10% 10.1% 5,203 5,250
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-AD8GOGE.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,542
Calibration 2     51,181
Calibration 3     52,605
ssj_ops@calibrated=51,893
100% 99.9% 51,893 51,862
90% 90.3% 46,704 46,866
80% 79.8% 41,515 41,395
70% 70.9% 36,325 36,796
60% 60.3% 31,136 31,274
50% 50.9% 25,947 26,407
40% 39.8% 20,757 20,667
30% 30.2% 15,568 15,673
20% 20.4% 10,379 10,583
10% 9.9% 5,189 5,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

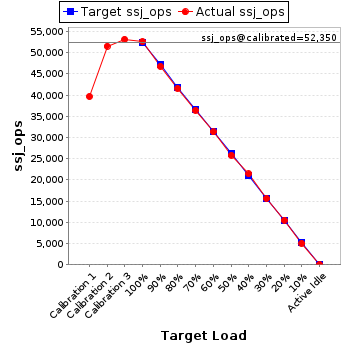

JVM 'DESKTOP-AD8GOGE.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,659
Calibration 2     51,537
Calibration 3     53,163
ssj_ops@calibrated=52,350
100% 100.5% 52,350 52,610
90% 89.3% 47,115 46,762
80% 79.4% 41,880 41,561
70% 69.5% 36,645 36,383
60% 59.8% 31,410 31,289
50% 49.3% 26,175 25,790
40% 40.9% 20,940 21,412
30% 29.9% 15,705 15,631
20% 20.1% 10,470 10,508
10% 9.6% 5,235 5,017
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-AD8GOGE.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,914
Calibration 2     51,738
Calibration 3     53,269
ssj_ops@calibrated=52,503
100% 99.4% 52,503 52,212
90% 89.8% 47,253 47,156
80% 79.5% 42,003 41,746
70% 70.4% 36,752 36,953
60% 61.0% 31,502 32,040
50% 50.2% 26,252 26,357
40% 38.3% 21,001 20,095
30% 30.0% 15,751 15,744
20% 19.9% 10,501 10,437
10% 9.8% 5,250 5,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-AD8GOGE.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     35,689
Calibration 2     48,369
Calibration 3     49,716
ssj_ops@calibrated=49,043
100% 100.6% 49,043 49,343
90% 89.8% 44,138 44,039
80% 80.5% 39,234 39,472
70% 68.7% 34,330 33,669
60% 60.8% 29,426 29,829
50% 49.9% 24,521 24,478
40% 39.9% 19,617 19,558
30% 29.7% 14,713 14,545
20% 19.4% 9,809 9,495
10% 9.5% 4,904 4,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-AD8GOGE.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,385
Calibration 2     51,225
Calibration 3     52,625
ssj_ops@calibrated=51,925
100% 100.4% 51,925 52,114
90% 90.1% 46,733 46,774
80% 81.2% 41,540 42,139
70% 69.7% 36,348 36,170
60% 59.6% 31,155 30,932
50% 49.3% 25,963 25,588
40% 39.7% 20,770 20,632
30% 30.5% 15,578 15,820
20% 20.0% 10,385 10,370
10% 10.5% 5,193 5,442
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

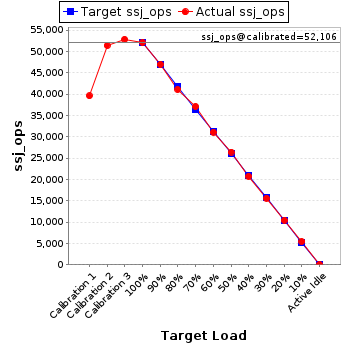

JVM 'DESKTOP-AD8GOGE.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,555
Calibration 2     51,370
Calibration 3     52,842
ssj_ops@calibrated=52,106
100% 100.0% 52,106 52,083
90% 90.1% 46,895 46,934
80% 78.8% 41,685 41,052
70% 71.2% 36,474 37,099
60% 59.6% 31,264 31,081
50% 50.7% 26,053 26,399
40% 39.7% 20,842 20,712
30% 29.9% 15,632 15,595
20% 20.0% 10,421 10,437
10% 10.4% 5,211 5,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-AD8GOGE.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,268
Calibration 2     91,127
Calibration 3     92,655
ssj_ops@calibrated=91,891
100% 99.5% 91,891 91,400
90% 89.6% 82,702 82,318
80% 80.1% 73,513 73,602
70% 70.5% 64,323 64,749
60% 60.1% 55,134 55,198
50% 50.2% 45,945 46,088
40% 40.0% 36,756 36,727
30% 29.9% 27,567 27,440
20% 19.6% 18,378 17,983
10% 10.1% 9,189 9,242
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-AD8GOGE.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,304
Calibration 2     90,617
Calibration 3     92,121
ssj_ops@calibrated=91,369
100% 100.4% 91,369 91,692
90% 90.9% 82,232 83,082
80% 79.5% 73,095 72,662
70% 69.8% 63,958 63,756
60% 59.7% 54,821 54,591
50% 49.9% 45,684 45,599
40% 39.8% 36,548 36,388
30% 29.9% 27,411 27,303
20% 19.8% 18,274 18,069
10% 10.1% 9,137 9,264
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-AD8GOGE.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,101
Calibration 2     89,972
Calibration 3     91,470
ssj_ops@calibrated=90,721
100% 99.9% 90,721 90,608
90% 90.3% 81,649 81,890
80% 80.2% 72,577 72,754
70% 70.7% 63,505 64,152
60% 59.9% 54,433 54,329
50% 50.3% 45,361 45,591
40% 40.1% 36,288 36,412
30% 29.7% 27,216 26,973
20% 19.5% 18,144 17,664
10% 10.1% 9,072 9,150
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

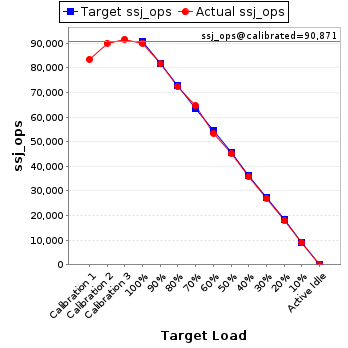

JVM 'DESKTOP-AD8GOGE.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,477
Calibration 2     90,066
Calibration 3     91,675
ssj_ops@calibrated=90,871
100% 99.1% 90,871 90,081
90% 89.9% 81,784 81,678
80% 79.6% 72,697 72,354
70% 71.2% 63,609 64,717
60% 58.9% 54,522 53,498
50% 49.8% 45,435 45,279
40% 39.5% 36,348 35,883
30% 29.7% 27,261 27,030
20% 19.8% 18,174 17,975
10% 9.8% 9,087 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

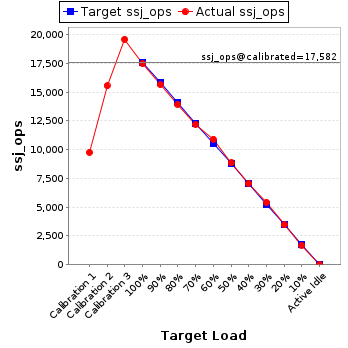

JVM 'DESKTOP-AD8GOGE.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,770
Calibration 2     15,552
Calibration 3     19,613
ssj_ops@calibrated=17,582
100% 99.5% 17,582 17,497
90% 89.1% 15,824 15,657
80% 79.3% 14,066 13,940
70% 69.4% 12,308 12,208
60% 62.1% 10,549 10,922
50% 50.3% 8,791 8,845
40% 40.2% 7,033 7,075
30% 30.9% 5,275 5,429
20% 19.7% 3,516 3,467
10% 9.5% 1,758 1,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-AD8GOGE.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,520
Calibration 2     15,227
Calibration 3     19,155
ssj_ops@calibrated=17,191
100% 99.7% 17,191 17,136
90% 86.8% 15,472 14,916
80% 79.8% 13,753 13,725
70% 69.8% 12,033 12,008
60% 62.2% 10,314 10,700
50% 50.8% 8,595 8,735
40% 39.5% 6,876 6,785
30% 30.2% 5,157 5,183
20% 20.8% 3,438 3,583
10% 10.0% 1,719 1,717
Active Idle   0 0

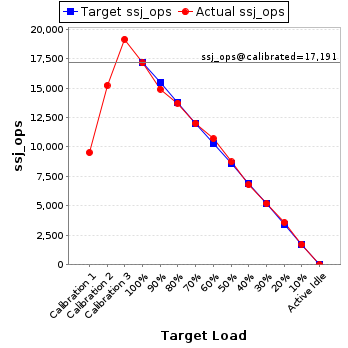

Graph of results
See the JVM Instance Performance Report for additional details.
