SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3200 M2 | SPECpower_ssj2008 = 1,064 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | NanKang, Taipei, Taiwan | Test Date: | Aug 14, 2008 |
| Hardware Availability: | Aug-2008 | Software Availability: | Aug-2008 | Publication: | Sep 10, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.8% | 190,234 | 119 | 1,601 |
| 90% | 90.7% | 172,967 | 116 | 1,494 |
| 80% | 80.8% | 154,130 | 112 | 1,380 |
| 70% | 69.7% | 132,811 | 106 | 1,251 |
| 60% | 60.8% | 115,866 | 99.8 | 1,161 |
| 50% | 49.6% | 94,582 | 90.9 | 1,041 |
| 40% | 39.7% | 75,792 | 82.5 | 919 |
| 30% | 29.8% | 56,857 | 74.4 | 764 |
| 20% | 19.9% | 37,980 | 68.2 | 557 |
| 10% | 10.2% | 19,410 | 62.8 | 309 |
| Active Idle | 0 | 56.7 | 0 | |
| ∑ssj_ops / ∑power = | 1,064 | |||
| Set Identifier: | sut |
| Set Description: | IBM System x3200 M2 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3200 M2 |
| Form Factor: | -- |
| CPU Name: | Intel Xeon X3360 |
| CPU Characteristics: | Quad-Core, 2.83GHz, 12MB L2 Cache |
| CPU Frequency (MHz): | 2833 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 4 |
| # and size of DIMM: | 2 x 2048 MB |
| Memory Details: | PC2-6400E; slots 1 and 3 populated |
| Power Supply Quantity and Rating (W): | 1 x 400 |
| Power Supply Details: | IBM P/N 39Y7329 |
| Disk Drive: | 1 x 160GB 7.3K RPM SATA |
| Disk Controller: | ICH9R onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Broadcom onboard 1Gb NIC |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Windows Server 2003 Enterprise Edition |
| OS Version: | R2 SP1 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 2.4, JRE 1.6.0 Windows 64 (build pwa6460sr1-20080419_01) |
| JVM Command-line Options: | -Xcompressedrefs -Xlp -Xgcpolicy:gencon -Xmn1000m -Xms1475m -Xmx1475m -XlockReservation -Xnoloa |
| JVM Affinity: | start /affinity [03,0C] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1475 |
| JVM Maximum Heap (MB): | 1475 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | ThinkCentre |
| CPU Description: | Intel Pentum4 |
| Memory amount (GB): | 0.5 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional Edition |
| JVM Vendor: | IBM Corporation |
| JVM Version: | J9VM build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows XP x86-32 |
| CCS Version: | 1.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 08-04-BAC-068-02 |
| Date of Calibration: | 08-Apr-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 119 | 23.2 |
| 90% | 116 | 23.2 |
| 80% | 112 | 23.2 |
| 70% | 106 | 23.2 |
| 60% | 99.8 | 23.2 |
| 50% | 90.9 | 23.2 |
| 40% | 82.5 | 23.2 |
| 30% | 74.4 | 23.2 |
| 20% | 68.2 | 23.2 |
| 10% | 62.8 | 23.2 |
| Active Idle | 56.7 | 23.2 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 23.2 | 63 |

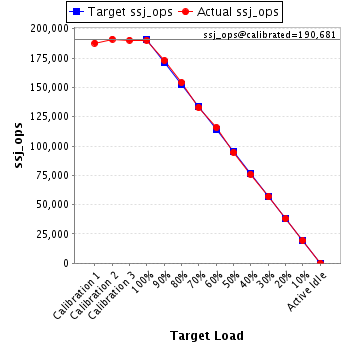

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 187,798 | ||
| Calibration 2 | 191,114 | ||
| Calibration 3 | 190,247 | ||
| ssj_ops@calibrated=190,681 | |||
| 100% | 99.8% | 190,681 | 190,234 |
| 90% | 90.7% | 171,612 | 172,967 |
| 80% | 80.8% | 152,544 | 154,130 |
| 70% | 69.7% | 133,476 | 132,811 |
| 60% | 60.8% | 114,408 | 115,866 |
| 50% | 49.6% | 95,340 | 94,582 |
| 40% | 39.7% | 76,272 | 75,792 |
| 30% | 29.8% | 57,204 | 56,857 |
| 20% | 19.9% | 38,136 | 37,980 |
| 10% | 10.2% | 19,068 | 19,410 |
| Active Idle | 0 | 0 | |
