SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3200 M2 | SPECpower_ssj2008 = 1,064 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | NanKang, Taipei, Taiwan | Test Date: | Aug 14, 2008 |
| Hardware Availability: | Aug-2008 | Software Availability: | Aug-2008 | Publication: | Sep 10, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

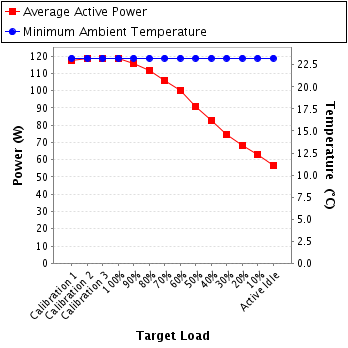

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 118 | 23.2 |
| Calibration 2 | 119 | 23.2 |
| Calibration 3 | 119 | 23.2 |
| 100% | 119 | 23.2 |
| 90% | 116 | 23.2 |
| 80% | 112 | 23.2 |
| 70% | 106 | 23.2 |
| 60% | 99.8 | 23.2 |
| 50% | 90.9 | 23.2 |
| 40% | 82.5 | 23.2 |
| 30% | 74.4 | 23.2 |
| 20% | 68.2 | 23.2 |
| 10% | 62.8 | 23.2 |
| Active Idle | 56.7 | 23.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 08-04-BAC-068-02 |
| Date of Calibration: | 08-Apr-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

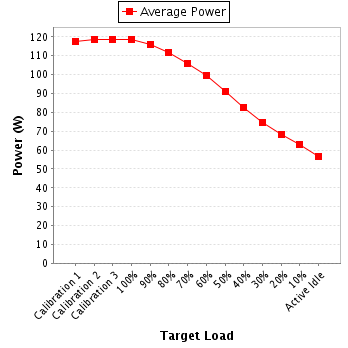

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | -- | 0.599 | -- | 0.943 | 118 | -- |
| Calibration 2 | 209 | -- | 0.603 | -- | 0.944 | 119 | -- |
| Calibration 3 | 209 | -- | 0.603 | -- | 0.944 | 119 | -- |
| 100% | 209 | -- | 0.603 | -- | 0.943 | 119 | -- |
| 90% | 209 | -- | 0.589 | -- | 0.940 | 116 | -- |
| 80% | 209 | -- | 0.571 | -- | 0.935 | 112 | -- |
| 70% | 209 | -- | 0.547 | -- | 0.927 | 106 | -- |
| 60% | 209 | -- | 0.520 | -- | 0.918 | 99.8 | -- |
| 50% | 209 | -- | 0.482 | -- | 0.902 | 90.9 | -- |
| 40% | 209 | -- | 0.445 | -- | 0.885 | 82.5 | -- |
| 30% | 209 | -- | 0.409 | -- | 0.869 | 74.4 | -- |
| 20% | 209 | -- | 0.381 | -- | 0.856 | 68.2 | -- |
| 10% | 209 | -- | 0.358 | -- | 0.840 | 62.8 | -- |
| Active Idle | 209 | -- | 0.330 | -- | 0.822 | 56.7 | -- |
