IBM Corporation IBM System x3200 M2 ssj_ops@100% = 190,234
ssj_ops@100% per JVM = 95,117
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: NanKang, Taipei, Taiwan Test Date: Aug 14, 2008
Hardware Availability: Aug-2008 Software Availability: Aug-2008 Publication: Sep 10, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,798
Calibration 2     191,114
Calibration 3     190,247
ssj_ops@calibrated=190,681
100% 99.8% 190,681 190,234
90% 90.7% 171,612 172,967
80% 80.8% 152,544 154,130
70% 69.7% 133,476 132,811
60% 60.8% 114,408 115,866
50% 49.6% 95,340 94,582
40% 39.7% 76,272 75,792
30% 29.8% 57,204 56,857
20% 19.9% 38,136 37,980
10% 10.2% 19,068 19,410
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: IBM System x3200 M2
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3200 M2
Form Factor: --
CPU Name: Intel Xeon X3360
CPU Characteristics: Quad-Core, 2.83GHz, 12MB L2 Cache
CPU Frequency (MHz): 2833
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 4 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4
# and size of DIMM: 2 x 2048 MB
Memory Details: PC2-6400E; slots 1 and 3 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: IBM P/N 39Y7329
Disk Drive: 1 x 160GB 7.3K RPM SATA
Disk Controller: ICH9R onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom onboard 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Server Balanced Processor Power and Performance
Operating System (OS): Windows Server 2003 Enterprise Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 2.4, JRE 1.6.0 Windows 64 (build pwa6460sr1-20080419_01)
JVM Command-line Options: -Xcompressedrefs -Xlp -Xgcpolicy:gencon -Xmn1000m -Xms1475m -Xmx1475m -XlockReservation -Xnoloa
JVM Affinity: start /affinity [03,0C]
JVM Instances: 4
JVM Initial Heap (MB): 1475
JVM Maximum Heap (MB): 1475
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 95,152
0001.002 95,082
ssj_ops@100% 190,234
ssj_ops@100% per JVM 95,117

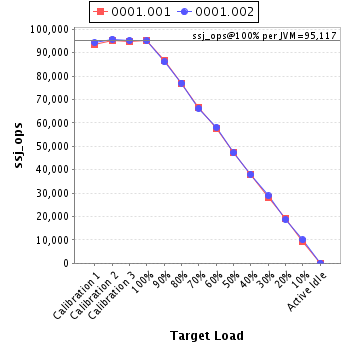

Graph of per-instance results

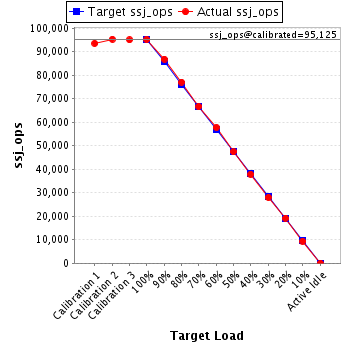

JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,501
Calibration 2     95,293
Calibration 3     94,958
ssj_ops@calibrated=95,125
100% 100.0% 95,125 95,152
90% 91.3% 85,613 86,846
80% 81.0% 76,100 77,062
70% 70.1% 66,588 66,655
60% 60.7% 57,075 57,755
50% 49.8% 47,563 47,371
40% 39.8% 38,050 37,854
30% 29.4% 28,538 27,981
20% 20.2% 19,025 19,245
10% 9.9% 9,513 9,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

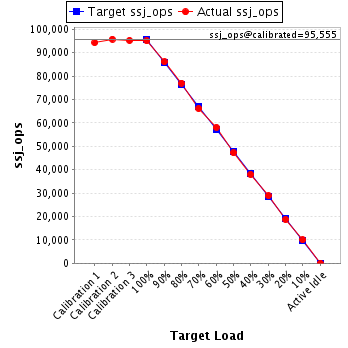

JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,298
Calibration 2     95,821
Calibration 3     95,290
ssj_ops@calibrated=95,555
100% 99.5% 95,555 95,082
90% 90.1% 86,000 86,121
80% 80.7% 76,444 77,067
70% 69.2% 66,889 66,155
60% 60.8% 57,333 58,111
50% 49.4% 47,778 47,211
40% 39.7% 38,222 37,938
30% 30.2% 28,667 28,876
20% 19.6% 19,111 18,735
10% 10.5% 9,556 9,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
