SPECpower_ssj2008
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Quanta Computer Inc. S44NL-1U | SPECpower_ssj2008 = 31,874 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Sep 21, 2024 |
| Hardware Availability: | Oct-2024 | Software Availability: | Sep-2024 | Publication: | Oct 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

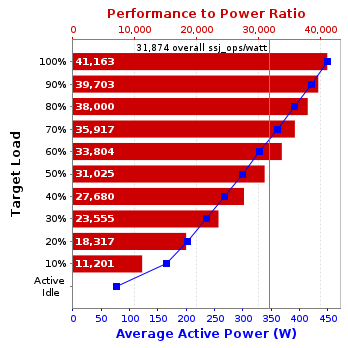

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 18,487,248 | 449 | 41,163 |
| 90% | 90.0% | 16,701,100 | 421 | 39,703 |
| 80% | 80.1% | 14,867,784 | 391 | 38,000 |
| 70% | 70.0% | 12,996,867 | 362 | 35,917 |
| 60% | 60.0% | 11,130,521 | 329 | 33,804 |
| 50% | 50.0% | 9,286,172 | 299 | 31,025 |
| 40% | 40.0% | 7,427,005 | 268 | 27,680 |
| 30% | 30.0% | 5,570,750 | 237 | 23,555 |
| 20% | 20.0% | 3,715,654 | 203 | 18,317 |
| 10% | 10.0% | 1,858,779 | 166 | 11,201 |
| Active Idle | 0 | 76.3 | 0 | |
| ∑ssj_ops / ∑power = | 31,874 | |||
| Set Identifier: | S44NL-1U |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Quanta Computer Inc. |
| Model: | S44NL-1U |
| Form Factor: | 1U |
| CPU Name: | AMD EPYC 9755 2.7GHz |
| CPU Characteristics: | 128 core, 2.7GHz, 512MB L3 Cache |
| CPU Frequency (MHz): | 2700 |
| CPU(s) Enabled: | 128 cores, 1 chip, 128 cores/chip |
| Hardware Threads: | 256 (2 / core) |
| CPU(s) Orderable: | 1 chips |
| Primary Cache: | 32 KB I + 48 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| Tertiary Cache: | 512 MB I+D on chip per chip, 32 MB shared/8 cores |
| Other Cache: | None |
| Memory Amount (GB): | 192 |
| # and size of DIMM: | 12 x 16384 MB |
| Memory Details: | 16GB 1Rx8 PC5-5600-R; slots A1, B1, C1, D1, E1, F1, G1 ,H1, I1, J1, K1, L1 populated |
| Power Supply Quantity and Rating (W): | 1 x 800 |
| Power Supply Details: | ACBEL Quanta P/N:AF800C00042 |
| Disk Drive: | 1 x 512GB M.2 Daughter card, Quanta P/N:ABS0512G358 |
| Disk Controller: | PCI-e controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Mellanox 25Gb, 2-port, Quanta P/N:ADPC6311000 |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 25000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power plan in OS |
| Operating System (OS): | Microsoft Windows Server 2022 Datacenter Evaluation |
| OS Version: | Version 21H2 (OS Build 20348.2527) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 17.0.12+8-LTS-286, mixed mode, sharing) |
| JVM Command-line Options: | -server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap |
| JVM Affinity: | start /NODE [0-15] /AFFINITY [0xF,0xF0,0xF00,0xF000] |
| JVM Instances: | 64 |
| JVM Initial Heap (MB): | 2048 |
| JVM Maximum Heap (MB): | 2048 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 3B02 |
| Management Firmware Version: | 5.02 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | Microsoft Windows (KB5039227) |
| Hardware | |
|---|---|
| Hardware Vendor: | Quanta Computer Inc. |
| Model: | S99 |
| CPU Description: | Intel Xeon CPU X5670, 2.93Ghz |
| Memory amount (GB): | 88 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2012 Datacenter 64-bit |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Hotspot(TM) Server VM (build 17.0.9+11-LTS-201, mixed mode, sharing) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | C2PM12064V |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | SGS |
| Calibration Label: | ECR2416369 |
| Date of Calibration: | 08-May-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 449 | 20.7 |
| 90% | 421 | 20.8 |
| 80% | 391 | 20.8 |
| 70% | 362 | 20.8 |
| 60% | 329 | 20.8 |
| 50% | 299 | 20.8 |
| 40% | 268 | 20.8 |
| 30% | 237 | 20.9 |
| 20% | 203 | 20.9 |
| 10% | 166 | 21.1 |
| Active Idle | 76.3 | 21.2 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 20.7 | 250 |

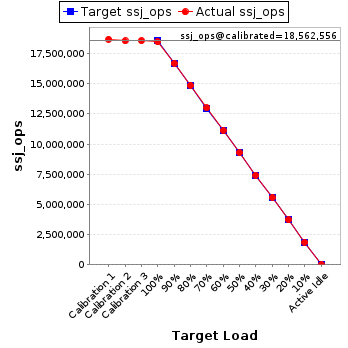

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 18,699,584 | ||
| Calibration 2 | 18,555,754 | ||
| Calibration 3 | 18,569,358 | ||
| ssj_ops@calibrated=18,562,556 | |||
| 100% | 99.6% | 18,562,556 | 18,487,248 |
| 90% | 90.0% | 16,706,301 | 16,701,100 |
| 80% | 80.1% | 14,850,045 | 14,867,784 |
| 70% | 70.0% | 12,993,789 | 12,996,867 |
| 60% | 60.0% | 11,137,534 | 11,130,521 |
| 50% | 50.0% | 9,281,278 | 9,286,172 |
| 40% | 40.0% | 7,425,023 | 7,427,005 |
| 30% | 30.0% | 5,568,767 | 5,570,750 |
| 20% | 20.0% | 3,712,511 | 3,715,654 |
| 10% | 10.0% | 1,856,256 | 1,858,779 |
| Active Idle | 0 | 0 | |
