SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Quanta Computer Inc. S44NL-1U | SPECpower_ssj2008 = 31,874 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Sep 21, 2024 |
| Hardware Availability: | Oct-2024 | Software Availability: | Sep-2024 | Publication: | Oct 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

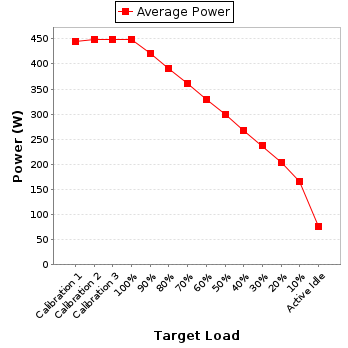

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 444 | 20.6 |
| Calibration 2 | 449 | 20.6 |
| Calibration 3 | 449 | 20.6 |
| 100% | 449 | 20.7 |
| 90% | 421 | 20.8 |
| 80% | 391 | 20.8 |
| 70% | 362 | 20.8 |
| 60% | 329 | 20.8 |
| 50% | 299 | 20.8 |
| 40% | 268 | 20.8 |
| 30% | 237 | 20.9 |
| 20% | 203 | 20.9 |
| 10% | 166 | 21.1 |
| Active Idle | 76.3 | 21.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | C2PM12064V |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | SGS |
| Calibration Label: | ECR2416369 |
| Date of Calibration: | 08-May-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 222 | 300.0 | 2.01 | 5.0 | 0.992 | 444 | 0.5% |
| Calibration 2 | 222 | 300.0 | 2.03 | 5.0 | 0.992 | 449 | 0.5% |
| Calibration 3 | 223 | 300.0 | 2.04 | 5.0 | 0.992 | 449 | 0.5% |
| 100% | 222 | 300.0 | 2.04 | 5.0 | 0.992 | 449 | 0.5% |
| 90% | 223 | 300.0 | 1.91 | 5.0 | 0.990 | 421 | 0.5% |
| 80% | 223 | 300.0 | 1.78 | 5.0 | 0.988 | 391 | 0.5% |
| 70% | 223 | 300.0 | 1.64 | 5.0 | 0.988 | 362 | 0.5% |
| 60% | 223 | 300.0 | 1.50 | 5.0 | 0.986 | 329 | 0.6% |
| 50% | 223 | 300.0 | 1.37 | 5.0 | 0.979 | 299 | 0.6% |
| 40% | 223 | 300.0 | 1.23 | 5.0 | 0.981 | 268 | 0.7% |
| 30% | 223 | 300.0 | 1.08 | 5.0 | 0.981 | 237 | 0.8% |
| 20% | 223 | 300.0 | 0.930 | 2.0 | 0.979 | 203 | 0.4% |
| 10% | 223 | 300.0 | 0.767 | 2.0 | 0.971 | 166 | 0.5% |
| Active Idle | 223 | 300.0 | 0.373 | 2.0 | 0.920 | 76.3 | 0.9% |
