Hitachi, Ltd. HA8000/RS440 (AL) SPECpower_ssj2008 = 1,816 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jul 17, 2011
Hardware Availability: Jun-2011 Software Availability: Feb-2011 Publication: Aug 10, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 2,225,321 837 2,660
90% 90.1% 2,009,313 788 2,549
80% 79.7% 1,776,725 742 2,394
70% 69.9% 1,557,101 694 2,245
60% 60.1% 1,339,832 641 2,089
50% 50.0% 1,114,689 592 1,881
40% 40.1% 892,772 554 1,611
30% 30.1% 670,807 521 1,289
20% 20.0% 445,019 491 907
10% 9.9% 219,897 463 475
Active Idle 0 423 0
∑ssj_ops / ∑power = 1,816

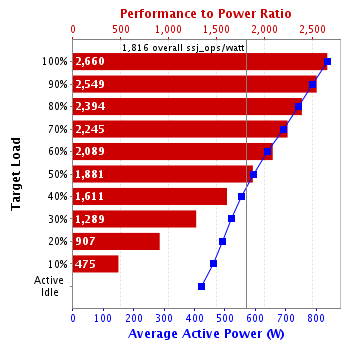

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS440 (AL)
Form Factor: 4U
CPU Name: Intel Xeon E7-4870
CPU Characteristics: Ten Core, 2.40GHz, 30MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 40 cores, 4 chips, 10 cores/chip
Hardware Threads: 80 (2 / core)
CPU(s) Orderable: 2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600R ECC CL9; slots DIMM 1A,1B,1C and DIMM 1D populated on each memory riser board
Power Supply Quantity and Rating (W): 2 x 850
Power Supply Details: DELTA DPS-850FB (Hitachi P/N:GQ-BP2251)
Disk Drive: 1 x 64GB SSD SATA (Hitachi P/N:GQ-UH70648G)
Disk Controller: Diskarray Controller Board
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576NS Gigabit Network Connection(I/O riser board)
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1500m -Xmx1500m -Xmn1300m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start/affinity [node0/F,F0,F00,F000,F0000 , node1/F,F0,F00,F000,F0000 , node2/F.F0,F00,F000,F0000 , node3/F,F0,F00,F000,F0000]
JVM Instances: 20
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: QSSC-S4R.QCI.01.00.WX52
Management Firmware Version: 1.20
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS110 (AH)
CPU Description: Intel Pentium E5200
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows Server 2008 Enterprise 32-bit SP2
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_17-b04)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2011-06-52513
Date of Calibration: 28-Jun-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 837 23.8
90% 788 23.8
80% 742 23.8
70% 694 23.7
60% 641 23.6
50% 592 23.6
40% 554 23.6
30% 521 23.6
20% 491 23.6
10% 463 23.6
Active Idle 423 23.6
Line Standard Minimum Temperature (°C) Elevation (m)
200V / 50 Hz / 1 phase / 2 wires 23.6 105
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,222,920
Calibration 2     2,229,730
Calibration 3     2,228,072
ssj_ops@calibrated=2,228,901
100% 99.8% 2,228,901 2,225,321
90% 90.1% 2,006,011 2,009,313
80% 79.7% 1,783,121 1,776,725
70% 69.9% 1,560,231 1,557,101
60% 60.1% 1,337,341 1,339,832
50% 50.0% 1,114,450 1,114,689
40% 40.1% 891,560 892,772
30% 30.1% 668,670 670,807
20% 20.0% 445,780 445,019
10% 9.9% 222,890 219,897
Active Idle   0 0
Graph of results
