Hitachi, Ltd. HA8000/RS440 (AL) ssj_ops@100% = 2,225,321
ssj_ops@100% per JVM = 111,266
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jul 17, 2011
Hardware Availability: Jun-2011 Software Availability: Feb-2011 Publication: Aug 10, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,222,920
Calibration 2     2,229,730
Calibration 3     2,228,072
ssj_ops@calibrated=2,228,901
100% 99.8% 2,228,901 2,225,321
90% 90.1% 2,006,011 2,009,313
80% 79.7% 1,783,121 1,776,725
70% 69.9% 1,560,231 1,557,101
60% 60.1% 1,337,341 1,339,832
50% 50.0% 1,114,450 1,114,689
40% 40.1% 891,560 892,772
30% 30.1% 668,670 670,807
20% 20.0% 445,780 445,019
10% 9.9% 222,890 219,897
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS440 (AL)
Form Factor: 4U
CPU Name: Intel Xeon E7-4870
CPU Characteristics: Ten Core, 2.40GHz, 30MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 40 cores, 4 chips, 10 cores/chip
Hardware Threads: 80 (2 / core)
CPU(s) Orderable: 2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600R ECC CL9; slots DIMM 1A,1B,1C and DIMM 1D populated on each memory riser board
Power Supply Quantity and Rating (W): 2 x 850
Power Supply Details: DELTA DPS-850FB (Hitachi P/N:GQ-BP2251)
Disk Drive: 1 x 64GB SSD SATA (Hitachi P/N:GQ-UH70648G)
Disk Controller: Diskarray Controller Board
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576NS Gigabit Network Connection(I/O riser board)
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1500m -Xmx1500m -Xmn1300m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start/affinity [node0/F,F0,F00,F000,F0000 , node1/F,F0,F00,F000,F0000 , node2/F.F0,F00,F000,F0000 , node3/F,F0,F00,F000,F0000]
JVM Instances: 20
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: QSSC-S4R.QCI.01.00.WX52
Management Firmware Version: 1.20
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-PHFBNUG8OJ0.001 113,075
WIN-PHFBNUG8OJ0.002 113,420
WIN-PHFBNUG8OJ0.003 110,257
WIN-PHFBNUG8OJ0.004 110,837
WIN-PHFBNUG8OJ0.005 113,605
WIN-PHFBNUG8OJ0.006 112,759
WIN-PHFBNUG8OJ0.007 110,114
WIN-PHFBNUG8OJ0.008 110,767
WIN-PHFBNUG8OJ0.009 110,744
WIN-PHFBNUG8OJ0.010 111,495
WIN-PHFBNUG8OJ0.011 110,015
WIN-PHFBNUG8OJ0.012 111,245
WIN-PHFBNUG8OJ0.013 112,004
WIN-PHFBNUG8OJ0.014 107,580
WIN-PHFBNUG8OJ0.015 111,872
WIN-PHFBNUG8OJ0.016 112,785
WIN-PHFBNUG8OJ0.017 113,451
WIN-PHFBNUG8OJ0.018 110,812
WIN-PHFBNUG8OJ0.019 108,365
WIN-PHFBNUG8OJ0.020 110,117
ssj_ops@100% 2,225,321
ssj_ops@100% per JVM 111,266
Graph of per-instance results
JVM 'WIN-PHFBNUG8OJ0.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,658
Calibration 2     113,246
Calibration 3     113,308
ssj_ops@calibrated=113,277
100% 99.8% 113,277 113,075
90% 90.5% 101,949 102,461
80% 79.2% 90,621 89,696
70% 69.8% 79,294 79,012
60% 59.8% 67,966 67,712
50% 50.1% 56,638 56,738
40% 40.1% 45,311 45,470
30% 30.4% 33,983 34,439
20% 19.9% 22,655 22,513
10% 10.0% 11,328 11,341
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     113,222
Calibration 2     113,488
Calibration 3     113,478
ssj_ops@calibrated=113,483
100% 99.9% 113,483 113,420
90% 90.2% 102,135 102,356
80% 79.8% 90,787 90,564
70% 69.5% 79,438 78,895
60% 60.0% 68,090 68,132
50% 50.1% 56,742 56,846
40% 40.6% 45,393 46,039
30% 30.3% 34,045 34,391
20% 20.2% 22,697 22,971
10% 9.8% 11,348 11,066
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,830
Calibration 2     110,015
Calibration 3     109,818
ssj_ops@calibrated=109,917
100% 100.3% 109,917 110,257
90% 90.9% 98,925 99,941
80% 79.6% 87,934 87,476
70% 69.8% 76,942 76,699
60% 60.5% 65,950 66,525
50% 49.9% 54,958 54,862
40% 39.8% 43,967 43,765
30% 29.6% 32,975 32,583
20% 20.0% 21,983 22,021
10% 9.7% 10,992 10,708
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,070
Calibration 2     111,161
Calibration 3     111,343
ssj_ops@calibrated=111,252
100% 99.6% 111,252 110,837
90% 90.1% 100,127 100,200
80% 81.1% 89,002 90,233
70% 69.4% 77,876 77,183
60% 59.2% 66,751 65,823
50% 49.8% 55,626 55,390
40% 39.7% 44,501 44,220
30% 30.0% 33,376 33,337
20% 19.8% 22,250 22,035
10% 9.7% 11,125 10,841
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,955
Calibration 2     113,767
Calibration 3     113,577
ssj_ops@calibrated=113,672
100% 99.9% 113,672 113,605
90% 90.2% 102,305 102,513
80% 79.4% 90,938 90,209
70% 70.0% 79,570 79,612
60% 60.4% 68,203 68,678
50% 50.0% 56,836 56,865
40% 40.4% 45,469 45,947
30% 29.5% 34,102 33,585
20% 20.0% 22,734 22,732
10% 9.7% 11,367 11,062
Active Idle   0 0

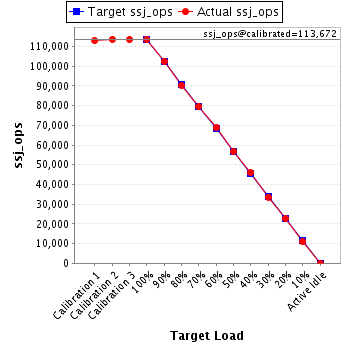

Graph of results
JVM 'WIN-PHFBNUG8OJ0.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,891
Calibration 2     112,680
Calibration 3     113,058
ssj_ops@calibrated=112,869
100% 99.9% 112,869 112,759
90% 90.0% 101,582 101,556
80% 81.0% 90,295 91,436
70% 70.9% 79,008 80,005
60% 59.9% 67,721 67,664
50% 50.2% 56,434 56,697
40% 40.9% 45,148 46,210
30% 30.1% 33,861 33,964
20% 19.9% 22,574 22,480
10% 9.7% 11,287 10,999
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,338
Calibration 2     110,656
Calibration 3     110,775
ssj_ops@calibrated=110,716
100% 99.5% 110,716 110,114
90% 89.9% 99,644 99,523
80% 80.2% 88,572 88,802
70% 70.1% 77,501 77,627
60% 60.7% 66,429 67,248
50% 49.7% 55,358 55,042
40% 40.1% 44,286 44,444
30% 30.3% 33,215 33,569
20% 20.2% 22,143 22,328
10% 9.6% 11,072 10,683
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,373
Calibration 2     111,719
Calibration 3     110,711
ssj_ops@calibrated=111,215
100% 99.6% 111,215 110,767
90% 89.8% 100,094 99,906
80% 78.6% 88,972 87,399
70% 69.7% 77,851 77,564
60% 59.8% 66,729 66,519
50% 50.1% 55,608 55,673
40% 40.1% 44,486 44,547
30% 30.2% 33,365 33,561
20% 20.0% 22,243 22,289
10% 9.5% 11,122 10,524
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,376
Calibration 2     110,845
Calibration 3     110,900
ssj_ops@calibrated=110,873
100% 99.9% 110,873 110,744
90% 89.9% 99,785 99,698
80% 80.5% 88,698 89,300
70% 69.6% 77,611 77,200
60% 60.1% 66,524 66,643
50% 50.5% 55,436 55,943
40% 40.0% 44,349 44,389
30% 30.1% 33,262 33,367
20% 19.9% 22,175 22,011
10% 10.0% 11,087 11,045
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,029
Calibration 2     111,851
Calibration 3     111,737
ssj_ops@calibrated=111,794
100% 99.7% 111,794 111,495
90% 90.9% 100,615 101,628
80% 79.2% 89,435 88,592
70% 70.0% 78,256 78,242
60% 60.2% 67,077 67,256
50% 49.9% 55,897 55,771
40% 40.8% 44,718 45,578
30% 29.9% 33,538 33,373
20% 19.8% 22,359 22,188
10% 10.1% 11,179 11,241
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,974
Calibration 2     110,586
Calibration 3     109,588
ssj_ops@calibrated=110,087
100% 99.9% 110,087 110,015
90% 90.1% 99,079 99,199
80% 79.3% 88,070 87,255
70% 69.9% 77,061 76,949
60% 59.6% 66,052 65,573
50% 50.1% 55,044 55,127
40% 40.2% 44,035 44,229
30% 30.4% 33,026 33,420
20% 20.1% 22,017 22,093
10% 10.1% 11,009 11,093
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,142
Calibration 2     111,170
Calibration 3     111,398
ssj_ops@calibrated=111,284
100% 100.0% 111,284 111,245
90% 90.1% 100,156 100,220
80% 79.5% 89,027 88,511
70% 69.7% 77,899 77,556
60% 61.0% 66,770 67,881
50% 49.8% 55,642 55,400
40% 40.0% 44,514 44,539
30% 29.8% 33,385 33,198
20% 19.9% 22,257 22,166
10% 9.9% 11,128 11,055
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,856
Calibration 2     111,709
Calibration 3     111,990
ssj_ops@calibrated=111,849
100% 100.1% 111,849 112,004
90% 90.1% 100,664 100,812
80% 80.2% 89,479 89,695
70% 69.4% 78,295 77,620
60% 60.0% 67,110 67,154
50% 50.3% 55,925 56,204
40% 39.6% 44,740 44,325
30% 30.1% 33,555 33,673
20% 19.8% 22,370 22,100
10% 10.2% 11,185 11,362
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,346
Calibration 2     108,358
Calibration 3     108,590
ssj_ops@calibrated=108,474
100% 99.2% 108,474 107,580
90% 90.0% 97,627 97,603
80% 78.7% 86,779 85,322
70% 70.0% 75,932 75,933
60% 59.8% 65,085 64,878
50% 50.3% 54,237 54,543
40% 39.8% 43,390 43,121
30% 30.3% 32,542 32,832
20% 19.9% 21,695 21,636
10% 9.9% 10,847 10,724
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,310
Calibration 2     111,977
Calibration 3     112,044
ssj_ops@calibrated=112,011
100% 99.9% 112,011 111,872
90% 91.1% 100,809 102,041
80% 78.6% 89,608 88,032
70% 69.9% 78,407 78,312
60% 60.0% 67,206 67,174
50% 51.1% 56,005 57,193
40% 39.9% 44,804 44,691
30% 30.4% 33,603 34,032
20% 19.9% 22,402 22,269
10% 9.9% 11,201 11,058
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,166
Calibration 2     112,640
Calibration 3     112,738
ssj_ops@calibrated=112,689
100% 100.1% 112,689 112,785
90% 89.1% 101,421 100,432
80% 79.3% 90,152 89,313
70% 69.9% 78,883 78,811
60% 60.7% 67,614 68,374
50% 49.9% 56,345 56,189
40% 39.7% 45,076 44,742
30% 29.9% 33,807 33,652
20% 20.1% 22,538 22,704
10% 9.9% 11,269 11,139
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     113,554
Calibration 2     113,887
Calibration 3     113,481
ssj_ops@calibrated=113,684
100% 99.8% 113,684 113,451
90% 89.0% 102,316 101,162
80% 79.7% 90,947 90,635
70% 69.8% 79,579 79,359
60% 60.3% 68,210 68,531
50% 50.0% 56,842 56,829
40% 39.9% 45,474 45,402
30% 29.9% 34,105 33,970
20% 20.1% 22,737 22,821
10% 9.9% 11,368 11,229
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,992
Calibration 2     110,850
Calibration 3     110,608
ssj_ops@calibrated=110,729
100% 100.1% 110,729 110,812
90% 90.0% 99,656 99,661
80% 79.4% 88,583 87,941
70% 70.0% 77,510 77,465
60% 59.1% 66,437 65,418
50% 49.5% 55,365 54,849
40% 39.8% 44,292 44,104
30% 30.8% 33,219 34,135
20% 19.5% 22,146 21,644
10% 9.9% 11,073 11,016
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,369
Calibration 2     108,844
Calibration 3     108,300
ssj_ops@calibrated=108,572
100% 99.8% 108,572 108,365
90% 90.8% 97,715 98,559
80% 79.9% 86,857 86,787
70% 69.8% 76,000 75,796
60% 61.2% 65,143 66,483
50% 49.4% 54,286 53,645
40% 39.7% 43,429 43,118
30% 29.9% 32,572 32,442
20% 19.7% 21,714 21,393
10% 9.8% 10,857 10,678
Active Idle   0 0
Graph of results
JVM 'WIN-PHFBNUG8OJ0.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,470
Calibration 2     110,279
Calibration 3     110,628
ssj_ops@calibrated=110,454
100% 99.7% 110,454 110,117
90% 90.4% 99,408 99,842
80% 81.1% 88,363 89,525
70% 69.9% 77,318 77,261
60% 59.9% 66,272 66,166
50% 49.7% 55,227 54,881
40% 39.7% 44,182 43,890
30% 30.1% 33,136 33,284
20% 20.5% 22,091 22,624
10% 10.0% 11,045 11,033
Active Idle   0 0
Graph of results
