Acer Incorporated Gateway GW2000h-GW175h F1 ssj_ops@100% = 3,720,023
ssj_ops@100% per Host = 930,006
ssj_ops@100% per JVM = 232,501
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Oct 5, 2010
Hardware Availability: Aug-2010 Software Availability: Dec-2009 Publication: Nov 10, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,750,007
Calibration 2     3,752,839
Calibration 3     3,748,862
ssj_ops@calibrated=3,750,851
100% 99.2% 3,750,851 3,720,023
90% 89.8% 3,375,766 3,369,870
80% 80.0% 3,000,681 3,002,215
70% 70.0% 2,625,596 2,626,505
60% 60.0% 2,250,510 2,248,790
50% 50.0% 1,875,425 1,873,856
40% 40.1% 1,500,340 1,502,635
30% 29.9% 1,125,255 1,120,775
20% 20.1% 750,170 753,582
10% 10.0% 375,085 373,642
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 96 96 64.0 4 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Gateway GW2000h
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41P-1R
Network Switch: 16-Port Gigabit switch
Network Switch Details: D-Link DGS-1016T
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch and monitors are standalone devices and not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW175h F1
Form Factor: 1U
CPU Name: AMD Opteron 6174
CPU Characteristics: 12-Core, 2.20 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 8 x 2048 MB
Memory Details: 2GB 1Rx8 PC3-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 64GB SSD 2.5" SATA, Acer P/N:KF.0640N.001
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [00003F, 000FC0, 03F000, FC0000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: T01
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-8HBN6J3NIHB 926,959
WIN-9LS4N17UD5K 928,185
WIN-B4O9LANPBF4 934,651
WIN-N4RNL9BG897 930,228
ssj_ops@100% 3,720,023
ssj_ops@100% per Host 930,006
ssj_ops@100% per JVM 232,501
Graph of per-host results
Host 'WIN-8HBN6J3NIHB' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     938,394
Calibration 2     937,540
Calibration 3     937,494
ssj_ops@calibrated=937,517
100% 98.9% 937,517 926,959
90% 89.6% 843,765 840,348
80% 80.0% 750,014 749,818
70% 69.8% 656,262 653,977
60% 59.8% 562,510 560,540
50% 50.0% 468,759 468,821
40% 39.9% 375,007 373,700
30% 29.9% 281,255 280,549
20% 20.0% 187,503 187,574
10% 9.9% 93,752 93,071
Active Idle   0 0

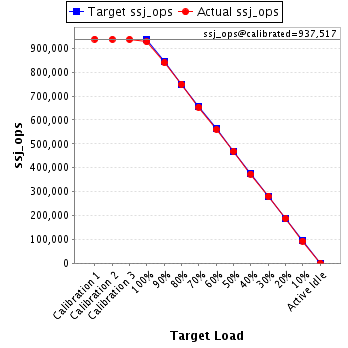

Graph of results
See the Host Performance Report for additional details.
Host 'WIN-9LS4N17UD5K' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     934,344
Calibration 2     936,284
Calibration 3     935,994
ssj_ops@calibrated=936,139
100% 99.2% 936,139 928,185
90% 89.9% 842,525 841,365
80% 80.0% 748,911 748,470
70% 70.0% 655,297 655,401
60% 59.8% 561,683 560,205
50% 49.8% 468,069 466,138
40% 40.1% 374,456 375,847
30% 29.7% 280,842 278,251
20% 20.1% 187,228 188,304
10% 10.0% 93,614 93,735
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-B4O9LANPBF4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     940,131
Calibration 2     942,347
Calibration 3     941,591
ssj_ops@calibrated=941,969
100% 99.2% 941,969 934,651
90% 90.0% 847,772 847,662
80% 80.0% 753,575 753,783
70% 70.0% 659,378 659,526
60% 60.0% 565,181 564,750
50% 49.9% 470,985 470,103
40% 40.2% 376,788 378,814
30% 30.0% 282,591 282,750
20% 20.2% 188,394 190,324
10% 9.8% 94,197 92,193
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-N4RNL9BG897' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     937,137
Calibration 2     936,669
Calibration 3     933,783
ssj_ops@calibrated=935,226
100% 99.5% 935,226 930,228
90% 89.9% 841,703 840,495
80% 80.2% 748,181 750,144
70% 70.3% 654,658 657,602
60% 60.2% 561,135 563,295
50% 50.1% 467,613 468,795
40% 40.0% 374,090 374,275
30% 29.9% 280,568 279,224
20% 20.0% 187,045 187,380
10% 10.1% 93,523 94,643
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
