Acer Incorporated Gateway GW2000h-GW175h F1 ssj_ops@100% = 926,959
ssj_ops@100% per JVM = 231,740
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Oct 5, 2010
Hardware Availability: Aug-2010 Software Availability: Dec-2009 Publication: Nov 10, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     938,394
Calibration 2     937,540
Calibration 3     937,494
ssj_ops@calibrated=937,517
100% 98.9% 937,517 926,959
90% 89.6% 843,765 840,348
80% 80.0% 750,014 749,818
70% 69.8% 656,262 653,977
60% 59.8% 562,510 560,540
50% 50.0% 468,759 468,821
40% 39.9% 375,007 373,700
30% 29.9% 281,255 280,549
20% 20.0% 187,503 187,574
10% 9.9% 93,752 93,071
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW175h F1
Form Factor: 1U
CPU Name: AMD Opteron 6174
CPU Characteristics: 12-Core, 2.20 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 8 x 2048 MB
Memory Details: 2GB 1Rx8 PC3-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 64GB SSD 2.5" SATA, Acer P/N:KF.0640N.001
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [00003F, 000FC0, 03F000, FC0000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: T01
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-8HBN6J3NIHB.001 236,534
WIN-8HBN6J3NIHB.002 234,235
WIN-8HBN6J3NIHB.003 225,598
WIN-8HBN6J3NIHB.004 230,593
ssj_ops@100% 926,959
ssj_ops@100% per JVM 231,740

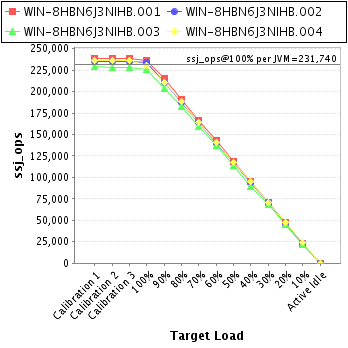

Graph of per-instance results
JVM 'WIN-8HBN6J3NIHB.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,658
Calibration 2     238,986
Calibration 3     238,529
ssj_ops@calibrated=238,757
100% 99.1% 238,757 236,534
90% 90.0% 214,882 214,985
80% 80.1% 191,006 191,180
70% 69.7% 167,130 166,349
60% 59.7% 143,254 142,540
50% 49.9% 119,379 119,137
40% 39.9% 95,503 95,146
30% 29.9% 71,627 71,277
20% 20.1% 47,751 47,914
10% 9.9% 23,876 23,536
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8HBN6J3NIHB.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,824
Calibration 2     234,929
Calibration 3     234,675
ssj_ops@calibrated=234,802
100% 99.8% 234,802 234,235
90% 89.8% 211,322 210,817
80% 79.8% 187,841 187,477
70% 69.7% 164,361 163,543
60% 59.4% 140,881 139,529
50% 50.2% 117,401 117,855
40% 39.9% 93,921 93,665
30% 29.9% 70,441 70,305
20% 19.8% 46,960 46,478
10% 10.0% 23,480 23,412
Active Idle   0 0

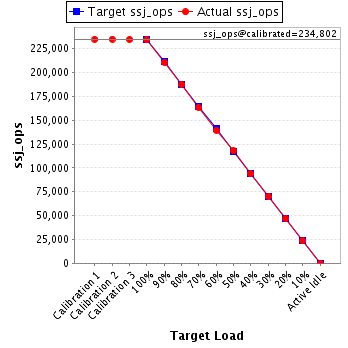

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8HBN6J3NIHB.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,955
Calibration 2     227,553
Calibration 3     228,000
ssj_ops@calibrated=227,776
100% 99.0% 227,776 225,598
90% 89.4% 204,999 203,672
80% 80.2% 182,221 182,784
70% 70.0% 159,444 159,519
60% 60.3% 136,666 137,393
50% 50.0% 113,888 113,844
40% 39.5% 91,111 89,980
30% 30.1% 68,333 68,664
20% 20.1% 45,555 45,719
10% 9.8% 22,778 22,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8HBN6J3NIHB.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     235,957
Calibration 2     236,072
Calibration 3     236,291
ssj_ops@calibrated=236,182
100% 97.6% 236,182 230,593
90% 89.3% 212,564 210,875
80% 79.8% 188,945 188,377
70% 69.7% 165,327 164,566
60% 59.7% 141,709 141,077
50% 50.0% 118,091 117,985
40% 40.2% 94,473 94,908
30% 29.8% 70,855 70,302
20% 20.1% 47,236 47,463
10% 10.1% 23,618 23,760
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
