SPECsfs97_R1.v3 Result

NEC Corporation :NV8210
SPECsfs97_R1.v3 =25382 Ops/Sec (Overall Response Time = 1.15 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
25360.6
50720.6
76430.7
101770.8
127430.8
153461.0
178841.2
205171.4
231612.1
253825.1

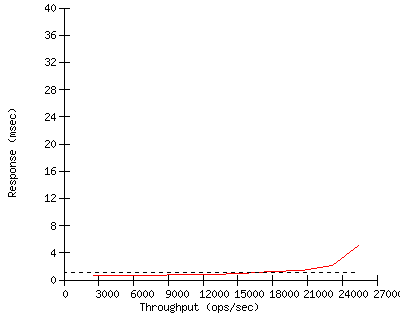

Performance Graph


Configuration

Server Configuration and Availability
Vendor NEC Corporation
Hardware Available June 2003
Software AvailableJune 2003
Date TestedJune 2003
SFS License Number89
Licensee LocationsTokyo, Japan

CPU, Memory and Power
Model Name NV8210
Processor 2.4 GHz Xeon
# of Processors 2
Primary Cache 12 KuOPs + 8 KB D
Secondary Cache 512KB(I+D) on chip
Other Cache N/A
UPS NF9100-SU01 / iStorage UPS(3000VA)
Other Hardware N/A
Memory Size 8 GB
NVRAM Size 2 GB
NVRAM Type Battery-backed Main Memory
NVRAM Description8-hour battery + UPS

Server Software
OS Name and VersionSC-LX V1.1.2
Other Software N/A
File System SXFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 128
Fileset Size 243.7 GB

Network Subsystem
Network Type Gigabit Ethernet with TOE
Network Controller Desc. NEC TOE
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type cisco Catalyst 4912G, Extreme Summit5i
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 105
Number of Filesystems 1 (F1)
File System Creation Ops4-GB Journal size
File System Config noatime, noquota (see notes)

Disk Controller NEC Array Controller
# of Controller Type 2
Number of Disks 105
Disk Type 36GB 15K RPM x 4, 73GB 15K RPM x 101
File Systems on Disks Operating System, F1
Special Config Notes N/A

Load Generator (LG) Configuration
Number of Load Generators 12
Number of Processes per LG10
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model NEC Express5800/120Rb-1
Number and Type Processors1 GHz Pentium III
Memory Size 1 GB
Operating System Red Hat Linux 7.2, Linux Kernel 2.4.21-rc1
Compiler
Compiler Options
Network Type Alteon AceNIC Gigabit Ethernet

LG Type LG2
LG Model NEC Express5800/120Rc-1
Number and Type Processors2.4 GHz Xeon
Memory Size 1 GB
Operating System Red Hat Linux 7.2, Linux Kernel 2.4.21-rc1
Compiler
Compiler Options
Network Type Intel Pro/1000 Network Connection

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1,2,3,4,5,6,7,8LG1N1F1N/A
9,10,11,12LG2N1F1N/A


Other Notes


Generated on Tue Jul 8 23:47:11 2003 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 08-Jul-2003
