SPECsfs97_R1.v3 Result

Spinnaker Networks, Inc. :	SpinServer 3300
SPECsfs97_R1.v3 =	31876 Ops/Sec (Overall Response Time = 1.71 msec)

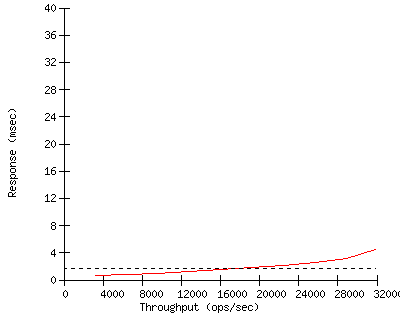

Performance

Throughput (ops/sec)	Response (msec)
3196	0.6
6370	0.8
9567	1.0
12810	1.2
16010	1.5
19218	1.9
22475	2.2
25701	2.6
28932	3.2
31876	4.5

Configuration

Server Configuration and Availability
Vendor	Spinnaker Networks, Inc.
Hardware Available	August 2002
Software Available	August 2002
Date Tested	August 2002
SFS License Number	84
Licensee Locations	Pittsburgh, PA

CPU, Memory and Power

Model Name SpinServer 3300

Processor 1.26 GHz Pentium III Tualatin

# of Processors 2

Primary Cache 16 KB(I) + 16 KB(D) on-chip

Secondary Cache 512 KB on-chip

Other Cache N/A

UPS APC Smart-UPS 1000

Other Hardware none

Memory Size 4 GB

NVRAM Size 1.7 GB

NVRAM Type UPS backed write cache and mirrored local SCSI drives

NVRAM Description see notes

Server Software

OS Name and Version SpinFS 1.0.1

Other Software none

File System SpinFS

NFS version 3

Server Tuning

Buffer Cache Size default

# NFS Processes N/A

Fileset Size 304.6 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	3COM 3C996-T PCI Adapter
Number Networks	1 (N1)
Number Network Controllers	1
Protocol Type	UDP

Switch Type Extreme Summit 7i

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 2

Number of Disks 60

Number of Filesystems 1

File System Creation Ops default

File System Config 12 RAID-Groups of 5 disks each

Disk Controller Qlogic 2200 Series FC-AL Adapter

# of Controller Type 2

Number of Disks 60

Disk Type Seagate Cheetah ST336752FC 36GB 15K RPM

File Systems on Disks F1

Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators	3
Number of Processes per LG	40
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Dell PowerEdge 1550

Number and Type Processors 2x1.0-GHz Pentium III

Memory Size 768 MB

Operating System Linux 2.4.9-31smp (Red Hat 7.2)

Compiler gcc 2.96

Compiler Options -O -DNO_T_TYPES -DUSE_INTTYPES

Network Type 3COM 3C996-T GigE, MTU=9000

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2/3 LG1 N1 F1 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2/3	LG1	N1	F1	N/A

Other Notes

The system under test was a single SpinServer 3300 with four 15-disk SpinStor RAID Chassis.
Each of the four FC ports of the SpinServer 3300 was connected to a SpinStor RAID Chassis.
Each SpinStor RAID Chassis utilized a RAID controller with 64 MB of RAM configured as a write-through cache.
The single filesystem, F1, was comprised of 12 RAID-5 sets.
Each RAID set had a strip size of 32 kB.
All network ports were set to use jumbo frames (MTU=9000) over Gigabit Ethernet.
The SpinServer 3300 has 1.7 Gbytes of UPS backed cache that will survive a power failure or an operating
system crash. In the event of a power failure or low battery condition, the cache is written to
mirrored local SCSI disks. Recovery software restores the cache when power returns. This RAM is not used
by the operating system as general purpose memory but as NVRAM that is dedicated for caching disk reads
and writes. The UPS is guaranteed to have sufficient energy after a battery low condition to flush the
entire contents of the 1.7 GBytes of cache to a stable storage device.
Spinnaker Networks, SpinServer, SpinStor and SpinFS are trademarks of Spinnaker Networks, Inc. in the United States.
All other trademarks belong to their respective owners and should be treated as such.

First published at SPEC.org on 15-Oct-2002

LG Type	LG1
LG Model	Dell PowerEdge 1550
Number and Type Processors	2x1.0-GHz Pentium III
Memory Size	768 MB
Operating System	Linux 2.4.9-31smp (Red Hat 7.2)
Compiler	gcc 2.96
Compiler Options	-O -DNO_T_TYPES -DUSE_INTTYPES
Network Type	3COM 3C996-T GigE, MTU=9000
