SPECsfs97.v2 Result

Network Appliance, Inc. :NetApp F760 (UDP, 21x18GB FCAL, 2xGbE)
SPECsfs97.v2 =7750 Ops/Sec (Overall Response Time = 2.67 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
2771.0
7761.4
15591.6
23351.9
31212.2
38992.4
46822.8
54743.0
62023.6
70504.5
77506.6

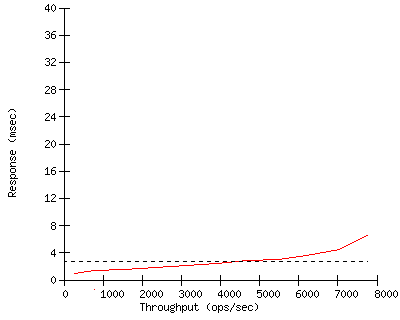

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available August 1998
Software AvailableApril 1999
Date TestedApril 1999
SFS License Number33
Licensee LocationsSanta Clara, CA

CPU, Memory and Power
Model Name NetApp F760 (UDP, 21x18GB FCAL, 2xGbE)
Processor 600MHz Alpha 21164A
# of Processors 1
Primary Cache 8 KB I + 8 KB D on-chip
Secondary Cache 96 KB (I+D) on-chip
Other Cache 2 MB (I+D) off-chip
UPS none
Other Hardware none
Memory Size 1 GB
NVRAM Size 32 MB
NVRAM Type SIMMs on PCI card
NVRAM Description6-month battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 5.3
Other Software none
File System WAFL
NFS version 2

Server Tuning
Buffer Cache Size dynamic
# NFS Processes 0
Fileset Size 75.4 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. X1025A PCI adapter card
Number Networks 2 (N1,N2)
Number Network Controllers2
Protocol Type UDP

Switch Type Extreme Summit4, all ports FDX
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 1
Number of Disks 21 (3x7-disk JBOD shelves)
Number of Filesystems 1
File System Creation Opsdefault
File System Config one RAID-group of 21 disks

Disk Controller onboard FCAL adapter
# of Controller Type 1
Number of Disks 21
Disk Type 18GB Seagate Cheetah (ST118202FC)
File Systems on Disks F1
Special Config Notes none

Load Generator (LG) Configuration
Number of Load Generators 6
Number of Processes per LG8
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Sun Microsystems Ultra 1/170
Number and Type Processors1x167-MHz UltraSPARC
Memory Size 256 MB
Operating System Solaris 2.5.1
Compiler gcc 2.6.3
Compiler Options see SPEC-supplied wrapper & makefile
Network Type hme

LG Type LG2
LG Model Sun Microsystems Ultra 1/170
Number and Type Processors1x167-MHz UltraSPARC
Memory Size 256 MB
Operating System Solaris 2.6
Compiler gcc 2.6.3
Compiler Options see SPEC-supplied wrapper & makefile
Network Type hme

LG Type LG3
LG Model Sun Microsystems Ultra 2
Number and Type Processors1x296-MHz UltraSPARC
Memory Size 256 MB
Operating System Solaris 2.6
Compiler gcc 2.6.3
Compiler Options see SPEC-supplied wrapper & makefile
Network Type hme

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1N/A
2,3LG3N1F1N/A
4,5LG1N2F1N/A
6LG2N2F1N/A


Other Notes


Sun May 9 18:06:09 1999

First published at SPEC.org on 04-May-1999
