SPECsfs97.v2 Result

Network Appliance, Inc. :NetApp F630 (TCP, 56x9GB FCAL, GbE)
SPECsfs97.v2 =4217 Ops/Sec (Overall Response Time = 3.32 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
4171.8
8462.1
12532.5
16762.8
21053.3
25263.6
29444.3
33654.6
37925.1
42176.0

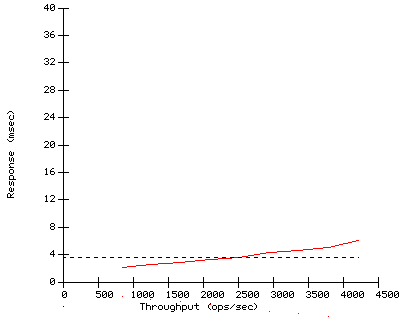

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available March 1998
Software AvailableMarch 1998
Date TestedMarch 1998
SFS License Number33
Licensee LocationsSanta Clara, CA

CPU, Memory and Power
Model Name NetApp F630 (TCP, 56x9GB FCAL, GbE)
Processor 500MHz Alpha 21164A
# of Processors 1
Primary Cache 8KBI+8KBD on chip
Secondary Cache 96KB(I+D) on chip
Other Cache 2MB(I+D) off chip
UPS N/A
Other Hardware N/A
Memory Size 512MB
NVRAM Size 32MB
NVRAM Type NVRAM SIMMs on PCI card
NVRAM Description6-month battery-backed shelf-life

Server Software
OS Name and VersionNetApp OS version 5.0 beta2
Other Software N/A
File System WAFL
NFS version 2

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes see notes
Fileset Size 40.6 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. Gigabit PCI Adaptor
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type Foundry Networks FWS16, Full Duplex
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 1
Number of Disks 56
Number of Filesystems 1
File System Creation Opsdefault
File System Config four RAID groups of 14 disks each

Disk Controller
# of Controller Type
Number of Disks
Disk Type
File Systems on Disks
Special Config Notes

Disk Controller FibreChannel Card, QLA 2100
# of Controller Type 1
Number of Disks 56 (8x7-disk JBOD shelves)
Disk Type 9GB Seagate Barracuda (ST19171FC)
File Systems on Disks F1
Special Config Notes none

Load Generator (LG) Configuration
Number of Load Generators 12
Number of Processes per LG7
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Sun Microsystems Ultra 1/170
Number and Type Processors1 167-MHz UltraSPARC
Memory Size 256MB
Operating System Solaris 2 version 2.5.1
Compiler gcc 2.6.3
Compiler Options see SPEC-supplied wrapper & makefile
Network Type Fast Ethernet

LG Type LG2
LG Model Sun Microsystems Ultra 2
Number and Type Processors1 168-MHz UltraSPARC-II
Memory Size 256MB
Operating System Solaris 2 version 2.5.1
Compiler gcc 2.6.3
Compiler Options see SPEC-supplied wrapper & makefile
Network Type Fast Ethernet

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
10LG1N1F1N/A
2LG2N1F1N/A


Other Notes


Tue Jul 7 16:20:58 1998

First published at SPEC.org on 16-Jun-1998
