SPECsfs97.v3 Result

Network Appliance, Inc. :NetApp F740 Failover Cluster (TCP, 28x36GB FCAL, 2xGbE)
SPECsfs97.v3 =6267 Ops/Sec (Overall Response Time = 1.79 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
5991.2
11891.3
17881.5
24481.7
31161.6
36681.7
42262.1
48402.3
54422.5
60303.0
61993.3
62673.6

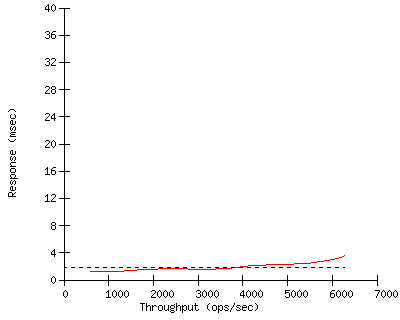

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available December 2000
Software AvailableDecember 2000
Date TestedJanuary 2001
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name NetApp F740 Failover Cluster (TCP, 28x36GB FCAL, 2xGbE)
Processor 400MHz Alpha 21164A
# of Processors 2 (1 per node)
Primary Cache 8 KB I + 8 KB D on-chip
Secondary Cache 96 KB (I+D) on-chip
Other Cache 1 MB (I+D) off-chip per node
UPS none
Other Hardware X1901B cluster interconnect (see notes)
Memory Size 1024 MB (512 MB per node)
NVRAM Size 64 MB (32 MB per node)
NVRAM Type SIMMs on PCI cards
NVRAM Description6-month battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 6.0.1R1
Other Software Cluster Option
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 63.8 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. X1025B PCI adapter card
Number Networks 1 (N1)
Number Network Controllers2 (1 per node)
Protocol Type TCP

Switch Type Extreme Summit4
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4
Number of Disks 28
Number of Filesystems 2
File System Creation Opsdefault
File System Config 1 RAID-group, 13 disks

Disk Controller X2030B FC-AL adapter card (64 KB RAM standard)
# of Controller Type 4
Number of Disks 7,7/7,7
Disk Type X231A 36GB 10000RPM FC-AL
File Systems on Disks F1/F2
Special Config Notes 2 primary controllers, 2 secondaries (see notes)

Load Generator (LG) Configuration
Number of Load Generators 5
Number of Processes per LG4
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Intel ISP1100 Internet Server Platform
Number and Type Processors1x700-MHz Pentium III
Memory Size 512 MB
Operating System Linux 2.2.14-5.0 (Red Hat 6.2)
Compiler egcs-2.91.66
Compiler Options -g -DNO_T_TYPES -DUSE_INTTYPES
Network Type integrated Intel Pro/100+ 100BASE-T

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../5LG1N1F1,F2N/A


Other Notes


Tue Feb 6 14:57:01 2001

First published at SPEC.org on 06-Feb-2001
