SPECsfs2008_cifs Result

Isilon Systems, LLC. : S200-6.9TB-200GB-48GB-10GBE - 14 Nodes
SPECsfs2008_cifs = 201628 Ops/Sec (Overall Response Time = 3.18 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
20053 8.7
41034 5.0
63832 2.9
85822 2.4
105786 2.4
121977 2.5
143987 2.3
161341 2.2
182017 2.0
201628 2.0

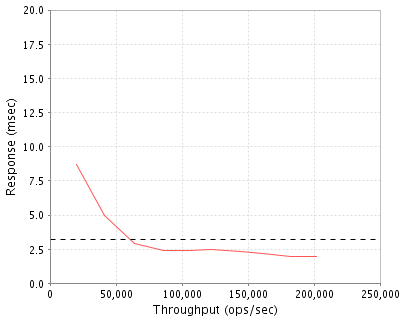

Performance Graph


Product and Test Information

Tested By Isilon Systems, LLC.
Product Name S200-6.9TB-200GB-48GB-10GBE - 14 Nodes
Hardware Available April 2011
Software Available March 2011
Date Tested May 2011
SFS License Number 47
Licensee Locations Hopkinton, MA

The Isilon S200, built on Isilon's proven scale-out storage platform, provides enterprises with industry-leading IO/s from a single file system, single volume. The S200 accelerates business and increases speed-to-market by providing scalable, high performance storage for mission critical and highly transactional applications. In addition, the single filesystem, single volume, and linear scalability of the OneFS operating system enables enterprises to scale storage seamlessly with their environment and application while maintaining flat operational expenses. The S200 is based on enterprise-class 2.5" 10,000 RPM Serial Attached SCSI drive technology, 10GbE Ethernet networking, dual quad-core Intel CPUs, a high performance Infiniband back-end, and up to 13.8 TB of globally coherent cache. The S200 scales from as few as 3 nodes to as a high as 144 nodes in a single file system, single volume.

Configuration Bill of Materials

Item No Qty Type Vendor Model/Name Description
1 14 Storage Node Isilon S200-6.9TB & 200GB SSD, 48GB RAM, 2x10GE SFP+ & 2x1GE S200 6.9TB SAS + SSD Storage node
2 14 Software License Isilon OneFS 6.5.1 OneFS 6.5.1 License
3 1 Infiniband Switch QLogic 9120-144 144 Port DDR Infiniband Switch

Server Software

OS Name and Version OneFS 6.5.1
Other Software N/A
Filesystem Software OneFS

Server Tuning

Name Value Description
NA NA NA

Server Tuning Notes

N/A

Disks and Filesystems

Description Number of Disks Usable Size
300GB SAS 10k RPM Disk Drives 322 83.6 TB
200GB SSD 14 2.5 TB
Total 336 86.1 TB
Number of Filesystems 1
Total Exported Capacity 86.1 TB
Filesystem Type IFS
Filesystem Creation Options Default
Filesystem Config 13+1 Parity Protected
Fileset Size 23439.5 GB

Default SSD policy stores one mirror of all metadata on SSD. File data is striped across all 14 nodes.

Network Configuration

Item No Network Type Number of Ports Used Notes
1 10GbE with Jumbo Frames 14 10GbE SFP+ PCIe NIC

Network Configuration Notes

The Brocade MLXe-32 configured with 232 wire speed 10GbE ports delivering full utilization of all links for optimum network utilization and instantaneous link or node failover. Non-stop networking is further achieved through hitless failover and software upgrades, and fully redundant hardware components. The configuration provided a single VLAN, with STP disabled and Jumbo Frame support enabled.

Benchmark Network

Each load generator and each S200 storage node was configured with a single 10GbE, 9000 MTU connection to the MLXe-32.

Processing Elements

Item No Qty Type Description Processing Function
1 28 CPU Intel E5620, Quad-Core CPU, 2.40 GHz Network, CIFS, Filesystem, Device Drivers

Processing Element Notes

Each storage node has 2 physical processors with 4 processing cores

Memory

Description Size in GB Number of Instances Total GB Nonvolatile
Storage Node System Memory 48 14 672 V
Storage Node Integrated NVRAM module 0.5 14 7 NV
Grand Total Memory Gigabytes     679

Memory Notes

Each storage controller has main memory that is used for the operating system and for caching filesystem data. A separate, integrated battery-backed RAM module is used to provide stable storage for writes that have not yet been written to disk.

Stable Storage

Each storage node is equipped with an nvram journal that stores writes to the local disks. The nvram is protected by 2 batteries, providing stable storage for more than 72 hours. In the event of double battery failure the node will no longer write to the local disks, but continues to write to the remaining storage nodes.

System Under Test Configuration Notes

The system under test consisted of 14 S200 storage nodes, 2U each, connected by DDR Infiniband. Each storage node was configured with a single 10GbE network interface connected to a 10GbE switch.

Other System Notes

Test Environment Bill of Materials

Item No Qty Vendor Model/Name Description
1 14 Dell R610 1U Linux client, dual 6-core CPU, 48GB RAM
2 1 Brocade MLXe32 Brocade NetIron MLXe32 Chassis with 10GbE blades

Load Generators

LG Type Name LG1
BOM Item # 1
Processor Name Intel E5645
Processor Speed 2.40 GHz
Number of Processors (chips) 2
Number of Cores/Chip 6
Memory Size 48 GB
Operating System CentOS release 5.5 kernel 2.6.18-164.11.1.el5
Network Type Intel 82598EB 10-Gigabit AF

Load Generator (LG) Configuration

Benchmark Parameters

Network Attached Storage Type CIFS
Number of Load Generators 14
Number of Processes per LG 32

Testbed Configuration

LG No LG Type Network Target Filesystems Notes
1..14 LG1 1 /ifs/data

Load Generator Configuration Notes

All clients were connected to a single filesystem through all storage nodes

Uniform Access Rule Compliance

Each load-generating client hosted 32 processes. The assignment of processes to network interfaces was done such that they were evenly divided across all network paths to the storage controllers. The filesystem data was striped evenly across all disks and storage nodes.

Other Notes
