SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Kaytus Systems Pte. Ltd. KR2280V3 | SPECpower_ssj2008 = 22,130 overall ssj_ops/watt | ||||
| Test Sponsor: | Kaytus Systems Pte. Ltd. | SPEC License #: | 6865 | Test Method: | Single Node |
| Tested By: | Kaytus Systems Pte. Ltd. | Test Location: | Gateway West, Singapore | Test Date: | Nov 17, 2025 |
| Hardware Availability: | Sep-2025 | Software Availability: | Sep-2025 | Publication: | Dec 16, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

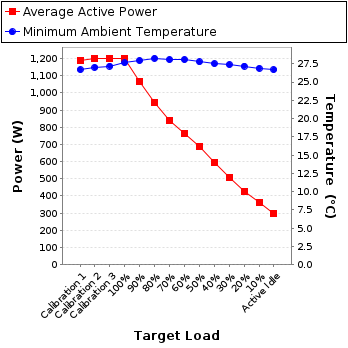

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,189 | 26.7 |
| Calibration 2 | 1,199 | 27.0 |
| Calibration 3 | 1,202 | 27.2 |
| 100% | 1,200 | 27.6 |
| 90% | 1,070 | 27.9 |
| 80% | 945 | 28.2 |
| 70% | 839 | 28.1 |
| 60% | 763 | 28.1 |
| 50% | 686 | 27.8 |
| 40% | 597 | 27.5 |
| 30% | 505 | 27.4 |
| 20% | 425 | 27.2 |
| 10% | 360 | 26.9 |
| Active Idle | 301 | 26.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT500 |
| Serial Number: | C2YA10071V |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | J202505146784N-0008 |
| Date of Calibration: | 19-Jul-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to PSU 0 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the SUT less than 50mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 230 | 300.0 | 5.16 | 10.0 | 0.999 | 1,189 | 0.4% |
| Calibration 2 | 230 | 300.0 | 5.21 | 10.0 | 0.999 | 1,199 | 0.4% |
| Calibration 3 | 231 | 300.0 | 5.22 | 10.0 | 0.999 | 1,202 | 0.4% |
| 100% | 231 | 300.0 | 5.21 | 10.0 | 0.999 | 1,200 | 0.4% |
| 90% | 231 | 300.0 | 4.65 | 10.0 | 0.999 | 1,070 | 0.4% |
| 80% | 231 | 300.0 | 4.14 | 10.0 | 0.997 | 945 | 0.5% |
| 70% | 231 | 300.0 | 3.71 | 5.0 | 0.996 | 839 | 0.4% |
| 60% | 231 | 300.0 | 3.39 | 5.0 | 0.994 | 763 | 0.4% |
| 50% | 231 | 300.0 | 3.08 | 5.0 | 0.992 | 686 | 0.4% |
| 40% | 232 | 300.0 | 2.64 | 5.0 | 0.992 | 597 | 0.4% |
| 30% | 232 | 300.0 | 2.19 | 5.0 | 0.993 | 505 | 0.5% |
| 20% | 232 | 300.0 | 1.84 | 5.0 | 0.992 | 425 | 0.5% |
| 10% | 232 | 300.0 | 1.57 | 2.0 | 0.988 | 360 | 0.3% |
| Active Idle | 232 | 300.0 | 1.32 | 2.0 | 0.984 | 301 | 0.4% |
