SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Fsas Technologies Inc. PRIMERGY RX2540 M8 | SPECpower_ssj2008 = 23,290 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fsas Technologies Inc. | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Sep 21, 2025 |
| Hardware Availability: | Oct-2025 | Software Availability: | Jun-2025 | Publication: | Oct 21, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

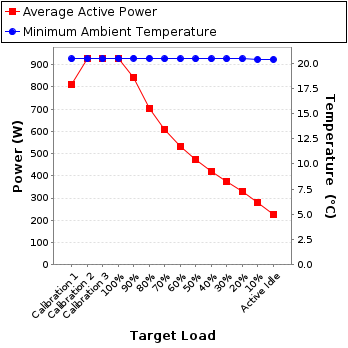

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 813 | 20.4 |
| Calibration 2 | 928 | 20.4 |
| Calibration 3 | 929 | 20.4 |
| 100% | 929 | 20.5 |
| 90% | 844 | 20.5 |
| 80% | 703 | 20.5 |
| 70% | 607 | 20.4 |
| 60% | 532 | 20.4 |
| 50% | 475 | 20.4 |
| 40% | 418 | 20.4 |
| 30% | 373 | 20.4 |
| 20% | 328 | 20.4 |
| 10% | 278 | 20.4 |
| Active Idle | 227 | 20.4 |

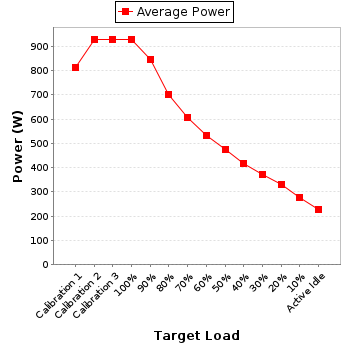

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170134584 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | CY253000033 |
| Date of Calibration: | 04-Mar-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 4.07 | 10.0 | 0.991 | 813 | 0.3% |
| Calibration 2 | 206 | 300.0 | 4.53 | 10.0 | 0.994 | 928 | 0.3% |
| Calibration 3 | 206 | 300.0 | 4.53 | 10.0 | 0.994 | 929 | 0.3% |
| 100% | 206 | 300.0 | 4.53 | 10.0 | 0.994 | 929 | 0.3% |
| 90% | 206 | 300.0 | 4.12 | 10.0 | 0.993 | 844 | 0.3% |
| 80% | 206 | 300.0 | 3.44 | 10.0 | 0.991 | 703 | 0.3% |
| 70% | 206 | 300.0 | 2.98 | 10.0 | 0.988 | 607 | 0.4% |
| 60% | 206 | 300.0 | 2.62 | 10.0 | 0.984 | 532 | 0.4% |
| 50% | 207 | 300.0 | 2.35 | 10.0 | 0.980 | 475 | 0.4% |
| 40% | 207 | 300.0 | 2.08 | 10.0 | 0.974 | 418 | 0.5% |
| 30% | 207 | 300.0 | 1.87 | 10.0 | 0.968 | 373 | 0.5% |
| 20% | 206 | 300.0 | 1.66 | 5.0 | 0.961 | 328 | 0.4% |
| 10% | 207 | 300.0 | 1.42 | 5.0 | 0.951 | 278 | 0.4% |
| Active Idle | 207 | 300.0 | 1.17 | 5.0 | 0.937 | 227 | 0.5% |
