Lenovo Global Technology Think System SR655 V3 SPECpower_ssj2008 = 40,013 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Nov 18, 2024
Hardware Availability: Feb-2025 Software Availability: Jun-2024 Publication: Dec 17, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 18,446,017 365 50,499
90% 90.0% 16,641,685 340 48,909
80% 80.1% 14,810,153 302 49,075
70% 70.0% 12,940,604 280 46,156
60% 60.1% 11,105,350 258 43,025
50% 50.0% 9,246,175 236 39,212
40% 40.0% 7,394,049 213 34,792
30% 30.0% 5,547,143 187 29,689
20% 20.0% 3,694,289 160 23,137
10% 10.0% 1,847,939 128 14,486
Active Idle 0 72.8 0
∑ssj_ops / ∑power = 40,013

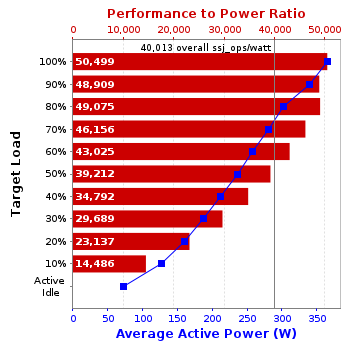

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR655 V3
Form Factor: 2U
CPU Name: AMD EPYC 9845
CPU Characteristics: 160-Core, 2.10GHz 320 MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 160 cores, 1 chip, 160 cores/chip
Hardware Threads: 320 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 320 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 1Rx8 PC5-6400-RD1; slots 1 to 12 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:4P57A82019
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP6
OS Version: 6.4.0-150600.21-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 160, physicalCoreId + 161}
JVM Instances: 80
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: KAE131A
Management Firmware Version: KAX343I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Thinksystem SR665
CPU Description: 2 x AMD EPYC 7773X
Memory amount (GB): 512
Software
Operating System (OS): Microsoft Windows Server 2022 DataCenter - Version 21H2 (OS Build 20348.1249)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPEREI LABORATORY CALIBRATION & TESTING CENTRE
Calibration Label: 1GA24011968-0002
Date of Calibration: 10-Oct-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 365 22.3
90% 340 22.3
80% 302 22.3
70% 280 22.4
60% 258 22.3
50% 236 22.3
40% 213 22.3
30% 187 22.4
20% 160 22.5
10% 128 22.5
Active Idle 72.8 22.4
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 22.3 43
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     17,221,818
Calibration 2     18,509,532
Calibration 3     18,473,010
ssj_ops@calibrated=18,491,271
100% 99.8% 18,491,271 18,446,017
90% 90.0% 16,642,144 16,641,685
80% 80.1% 14,793,017 14,810,153
70% 70.0% 12,943,890 12,940,604
60% 60.1% 11,094,763 11,105,350
50% 50.0% 9,245,636 9,246,175
40% 40.0% 7,396,508 7,394,049
30% 30.0% 5,547,381 5,547,143
20% 20.0% 3,698,254 3,694,289
10% 10.0% 1,849,127 1,847,939
Active Idle   0 0

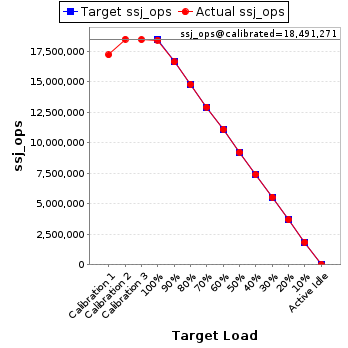

Graph of results
See the Host Performance Report for additional details.
