SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Lenovo Global Technology Think System SR645 V3 | SPECpower_ssj2008 = 34,402 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Sep 18, 2024 |
| Hardware Availability: | Nov-2024 | Software Availability: | Sep-2024 | Publication: | Oct 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

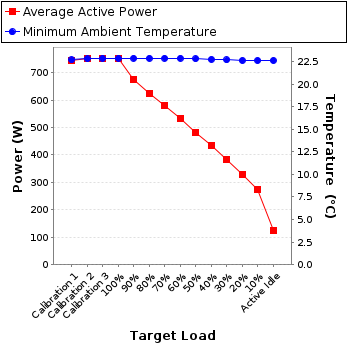

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 746 | 22.7 |
| Calibration 2 | 753 | 22.8 |
| Calibration 3 | 752 | 22.9 |
| 100% | 751 | 22.9 |
| 90% | 675 | 22.9 |
| 80% | 625 | 22.9 |
| 70% | 579 | 22.9 |
| 60% | 531 | 22.9 |
| 50% | 482 | 22.8 |
| 40% | 433 | 22.8 |
| 30% | 383 | 22.7 |
| 20% | 329 | 22.6 |
| 10% | 273 | 22.6 |
| Active Idle | 126 | 22.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3UD17024E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | GRG METROLOGY & TEST (BEIJING) CO.,LTD. |
| Calibration Label: | J202308266858A-0006 |
| Date of Calibration: | 16-Oct-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 219 | 300.0 | 3.42 | 5.0 | 0.995 | 746 | 0.3% |
| Calibration 2 | 219 | 300.0 | 3.45 | 5.0 | 0.995 | 753 | 0.3% |
| Calibration 3 | 219 | 300.0 | 3.44 | 5.0 | 0.995 | 752 | 0.3% |
| 100% | 219 | 300.0 | 3.44 | 5.0 | 0.995 | 751 | 0.3% |
| 90% | 219 | 300.0 | 3.10 | 5.0 | 0.993 | 675 | 0.4% |
| 80% | 219 | 300.0 | 2.87 | 5.0 | 0.995 | 625 | 0.4% |
| 70% | 219 | 300.0 | 2.66 | 5.0 | 0.993 | 579 | 0.4% |
| 60% | 220 | 300.0 | 2.44 | 5.0 | 0.992 | 531 | 0.4% |
| 50% | 220 | 300.0 | 2.22 | 5.0 | 0.989 | 482 | 0.4% |
| 40% | 220 | 300.0 | 2.00 | 5.0 | 0.985 | 433 | 0.5% |
| 30% | 220 | 300.0 | 1.77 | 5.0 | 0.982 | 383 | 0.5% |
| 20% | 220 | 300.0 | 1.54 | 2.5 | 0.975 | 329 | 0.4% |
| 10% | 220 | 300.0 | 1.31 | 2.5 | 0.950 | 273 | 0.4% |
| Active Idle | 220 | 300.0 | 0.625 | 2.5 | 0.920 | 126 | 0.7% |
