Lenovo Global Technology Think System SR655 V3 SPECpower_ssj2008 = 33,183 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Sep 24, 2024
Hardware Availability: Nov-2024 Software Availability: Jun-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 515 24.5
Calibration 2 516 24.6
Calibration 3 516 24.5
100% 380 24.4
90% 358 24.4
80% 318 24.3
70% 294 24.2
60% 270 24.2
50% 245 24.1
40% 221 24.1
30% 195 24.1
20% 169 23.9
10% 141 23.9
Active Idle 71.9 23.8

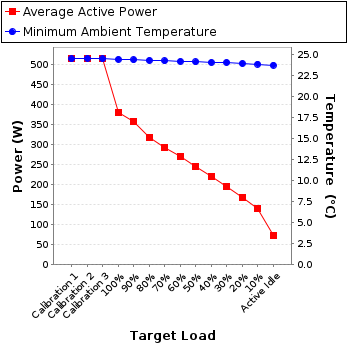

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0003
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 2.36 5.0 0.989 515 0.3%
Calibration 2 221 300.0 2.37 5.0 0.989 516 0.3%
Calibration 3 221 300.0 2.37 5.0 0.989 516 0.3%
100% 221 300.0 1.75 5.0 0.982 380 0.3%
90% 221 300.0 1.65 2.0 0.980 358 0.2%
80% 221 300.0 1.48 2.0 0.974 318 0.2%
70% 221 300.0 1.37 2.0 0.973 294 0.3%
60% 221 300.0 1.26 2.0 0.970 270 0.3%
50% 221 300.0 1.15 2.0 0.965 245 0.3%
40% 221 300.0 1.04 2.0 0.959 221 0.3%
30% 221 300.0 0.928 2.0 0.949 195 0.3%
20% 221 300.0 0.811 2.0 0.943 169 0.3%
10% 221 300.0 0.686 1.0 0.928 141 0.3%
Active Idle 221 300.0 0.400 1.0 0.812 71.9 0.4%
Power details for pwr1
