Supermicro AS-5126GS-TNRT SPECpower_ssj2008 = 34,469 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Sep 22, 2024
Hardware Availability: Oct-2024 Software Availability: Oct-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.1% 36,169,121 952 37,993
90% 90.0% 32,527,186 831 39,125
80% 80.0% 28,919,976 700 41,324
70% 70.0% 25,315,704 603 42,010
60% 60.0% 21,680,484 557 38,942
50% 50.0% 18,087,355 507 35,708
40% 40.0% 14,450,977 453 31,921
30% 30.0% 10,830,613 397 27,270
20% 20.0% 7,230,391 338 21,369
10% 10.0% 3,615,700 280 12,895
Active Idle 0 151 0
∑ssj_ops / ∑power = 34,469

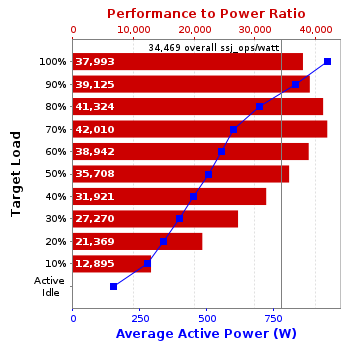

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: AS-5126GS-TNRT
Form Factor: 5U
CPU Name: AMD EPYC 9965 2.25GHz
CPU Characteristics: 192-Core, 2.25GHz, 384MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 192 cores, 2 chips, 192 cores/chip
Hardware Threads: 384 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip, 32 MB shared / 16 cores
Other Cache: None
Memory Amount (GB): 768
# and size of DIMM: 24 x 32 GB
Memory Details: 32GB 2Rx8 PC5-6400B; CPU0/1 A1,B1,C1,D1,E1,F1,G1,H1,I1,J1,K1,L1 populated.
Power Supply Quantity and Rating (W): 1 x 2700
Power Supply Details: PWS-2K70A-1R
Disk Drive: 1 x 960GB M.2 NVMe GEN4 Samsung,MZ1L2960HCJR
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel X710 Dual 10Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.524)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM(build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1650m -Xmx1650m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:InlineSmallCode=3900 -XX:+UseBiasedLocking -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=16
JVM Affinity: start/NODE[0-23] /AFFINITY [ [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000]
JVM Instances: 192
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: 1.0
Management Firmware Version: 01.00.03.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Supermicro
Model: X11DPG
CPU Description: Intel(R) Xeon(R) Gold 6142 2.60G
Memory amount (GB): 96
Software
Operating System (OS): Microsoft Windows Server 2019 Datacenter
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.7.0_80-b15) Java HotSpot(TM) 64-Bit Server VM(build 24.80-b11)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310
Serial Number: C3RF27027E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-230203F01008
Date of Calibration: 03-Feb-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 952 22.4
90% 831 22.4
80% 700 22.2
70% 603 21.9
60% 557 21.8
50% 507 21.6
40% 453 21.5
30% 397 21.4
20% 338 21.2
10% 280 21.1
Active Idle 151 20.9
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 20.9 10
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     37,205,714
Calibration 2     36,512,806
Calibration 3     35,776,248
ssj_ops@calibrated=36,144,527
100% 100.1% 36,144,527 36,169,121
90% 90.0% 32,530,074 32,527,186
80% 80.0% 28,915,622 28,919,976
70% 70.0% 25,301,169 25,315,704
60% 60.0% 21,686,716 21,680,484
50% 50.0% 18,072,264 18,087,355
40% 40.0% 14,457,811 14,450,977
30% 30.0% 10,843,358 10,830,613
20% 20.0% 7,228,905 7,230,391
10% 10.0% 3,614,453 3,615,700
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
