SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Nettrix R620 G50 | SPECpower_ssj2008 = 10,259 overall ssj_ops/watt | ||||
| Test Sponsor: | Nettrix | SPEC License #: | 6138 | Test Method: | Single Node |
| Tested By: | Nettrix | Test Location: | Tianjin,China | Test Date: | Sep 11, 2024 |
| Hardware Availability: | Nov-2023 | Software Availability: | Jan-2024 | Publication: | Oct 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 972 | 29.2 |
| Calibration 2 | 976 | 29.5 |
| Calibration 3 | 976 | 29.9 |
| 100% | 976 | 30.1 |
| 90% | 780 | 30.2 |
| 80% | 684 | 30.2 |
| 70% | 606 | 30.2 |
| 60% | 530 | 30.1 |
| 50% | 440 | 30.1 |
| 40% | 360 | 30.0 |
| 30% | 298 | 30.0 |
| 20% | 248 | 30.0 |
| 10% | 209 | 29.9 |
| Active Idle | 105 | 29.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA |
| Model: | WT310EH |
| Serial Number: | C3D11036E |
| Connectivity: | Ethernet |
| Input Connection: | Default |
| Metrology Institute: | CETC |
| Accredited by: | Calibration Laboratory of CETC |
| Calibration Label: | A2012018 |
| Date of Calibration: | 27-Mar-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Attach to SUT Power Supplier Unit 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButton Link Technology |
| Model: | iButton Link T-Sense/T-Probe |
| Driver Version: | 2.12.36.4 |
| Connectivity: | USB2Serial |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10mm in front of SUT main airflow intake |

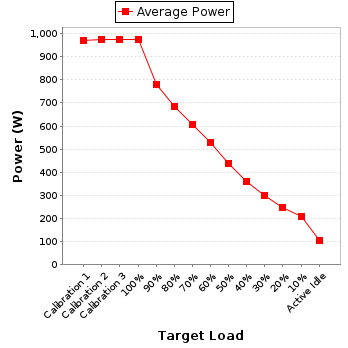

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 236 | 300.0 | 4.14 | 5.0 | 0.997 | 972 | 0.2% |
| Calibration 2 | 235 | 300.0 | 4.15 | 5.0 | 0.997 | 976 | 0.2% |
| Calibration 3 | 236 | 300.0 | 4.15 | 5.0 | 0.997 | 976 | 0.2% |
| 100% | 236 | 300.0 | 4.15 | 5.0 | 0.997 | 976 | 0.2% |
| 90% | 236 | 300.0 | 3.32 | 5.0 | 0.996 | 780 | 0.2% |
| 80% | 236 | 300.0 | 2.92 | 5.0 | 0.994 | 684 | 0.2% |
| 70% | 236 | 300.0 | 2.59 | 5.0 | 0.991 | 606 | 0.3% |
| 60% | 236 | 300.0 | 2.27 | 5.0 | 0.988 | 530 | 0.3% |
| 50% | 236 | 300.0 | 1.90 | 5.0 | 0.983 | 440 | 0.3% |
| 40% | 236 | 300.0 | 1.56 | 5.0 | 0.978 | 360 | 0.4% |
| 30% | 236 | 300.0 | 1.29 | 5.0 | 0.975 | 298 | 0.4% |
| 20% | 236 | 300.0 | 1.08 | 5.0 | 0.972 | 248 | 0.4% |
| 10% | 236 | 300.0 | 0.915 | 5.0 | 0.965 | 209 | 0.5% |
| Active Idle | 236 | 300.0 | 0.503 | 5.0 | 0.886 | 105 | 0.8% |
