Lenovo Global Technology ThinkEdge SE350 V2 ssj_ops@100% = 1,578,575
ssj_ops@100% per JVM = 98,661
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jan 18, 2024
Hardware Availability: Dec-2023 Software Availability: Jan-2024 Publication: Mar 1, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,602,130
Calibration 2     1,587,220
Calibration 3     1,581,332
ssj_ops@calibrated=1,584,276
100% 99.6% 1,584,276 1,578,575
90% 89.0% 1,425,848 1,409,500
80% 79.5% 1,267,421 1,260,053
70% 70.3% 1,108,993 1,112,984
60% 59.7% 950,566 946,331
50% 50.2% 792,138 794,845
40% 40.0% 633,710 633,099
30% 30.2% 475,283 478,105
20% 20.0% 316,855 316,824
10% 10.1% 158,428 159,690
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkEdge SE350 V2
Form Factor: 1U
CPU Name: Intel(R) Xeon(R) D-2775TE CPU @ 2.00GHz
CPU Characteristics: 16-Core, 2.00GHz, 25MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 1 chip, 16 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 25 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 4 x 16 GB
Memory Details: 4 x 16GB 2Rx8 PC4-3200AA-RE2; slots 1 to 4 populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Lenovo P/N:4X27A88607
Disk Drive: 1 x 480GB M.2 SSD P/N:4XB7A83139
Disk Controller: Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE 4-Port RJ45 Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.2227)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start /NODE [0] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: IYE106R
Management Firmware Version: IYX322X
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5034129
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-T2IHGMO4ANR.001 96,396
WIN-T2IHGMO4ANR.002 97,285
WIN-T2IHGMO4ANR.003 98,059
WIN-T2IHGMO4ANR.004 99,101
WIN-T2IHGMO4ANR.005 98,273
WIN-T2IHGMO4ANR.006 98,976
WIN-T2IHGMO4ANR.007 99,609
WIN-T2IHGMO4ANR.008 97,886
WIN-T2IHGMO4ANR.009 98,822
WIN-T2IHGMO4ANR.010 98,528
WIN-T2IHGMO4ANR.011 100,163
WIN-T2IHGMO4ANR.012 100,115
WIN-T2IHGMO4ANR.013 99,171
WIN-T2IHGMO4ANR.014 98,647
WIN-T2IHGMO4ANR.015 98,994
WIN-T2IHGMO4ANR.016 98,549
ssj_ops@100% 1,578,575
ssj_ops@100% per JVM 98,661

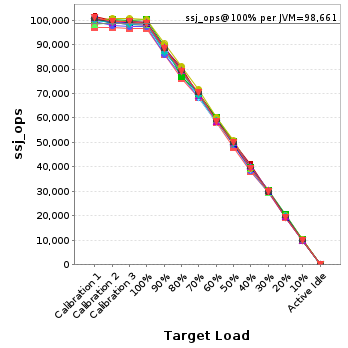

Graph of per-instance results
JVM 'WIN-T2IHGMO4ANR.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,023
Calibration 2     97,003
Calibration 3     96,680
ssj_ops@calibrated=96,841
100% 99.5% 96,841 96,396
90% 88.6% 87,157 85,803
80% 78.4% 77,473 75,940
70% 70.5% 67,789 68,281
60% 59.9% 58,105 58,026
50% 49.5% 48,421 47,895
40% 39.2% 38,737 37,961
30% 30.5% 29,052 29,500
20% 20.0% 19,368 19,334
10% 10.2% 9,684 9,903
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,549
Calibration 2     97,698
Calibration 3     97,542
ssj_ops@calibrated=97,620
100% 99.7% 97,620 97,285
90% 88.1% 87,858 85,972
80% 79.2% 78,096 77,339
70% 69.9% 68,334 68,238
60% 59.9% 58,572 58,504
50% 50.5% 48,810 49,276
40% 39.3% 39,048 38,368
30% 30.2% 29,286 29,476
20% 20.2% 19,524 19,692
10% 10.2% 9,762 9,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,187
Calibration 2     98,891
Calibration 3     98,607
ssj_ops@calibrated=98,749
100% 99.3% 98,749 98,059
90% 88.7% 88,874 87,565
80% 79.6% 78,999 78,582
70% 70.3% 69,124 69,403
60% 60.0% 59,249 59,210
50% 50.2% 49,374 49,581
40% 39.8% 39,500 39,330
30% 29.8% 29,625 29,404
20% 20.4% 19,750 20,117
10% 10.1% 9,875 9,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,623
Calibration 2     99,820
Calibration 3     98,452
ssj_ops@calibrated=99,136
100% 100.0% 99,136 99,101
90% 88.8% 89,222 88,042
80% 78.7% 79,309 78,022
70% 70.7% 69,395 70,050
60% 60.1% 59,481 59,602
50% 50.6% 49,568 50,160
40% 40.9% 39,654 40,505
30% 30.3% 29,741 30,039
20% 20.1% 19,827 19,883
10% 9.8% 9,914 9,695
Active Idle   0 0

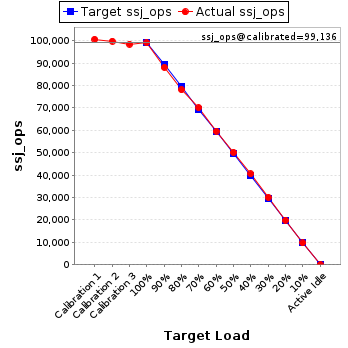

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,246
Calibration 2     99,013
Calibration 3     98,065
ssj_ops@calibrated=98,539
100% 99.7% 98,539 98,273
90% 89.1% 88,685 87,834
80% 79.8% 78,831 78,594
70% 71.2% 68,977 70,160
60% 60.4% 59,123 59,560
50% 49.9% 49,269 49,187
40% 40.3% 39,415 39,723
30% 29.8% 29,562 29,319
20% 19.8% 19,708 19,470
10% 9.9% 9,854 9,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,927
Calibration 2     99,577
Calibration 3     99,177
ssj_ops@calibrated=99,377
100% 99.6% 99,377 98,976
90% 89.2% 89,439 88,637
80% 80.3% 79,502 79,765
70% 68.6% 69,564 68,188
60% 58.6% 59,626 58,196
50% 49.9% 49,689 49,597
40% 39.0% 39,751 38,760
30% 29.9% 29,813 29,761
20% 19.4% 19,875 19,233
10% 10.1% 9,938 10,051
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,517
Calibration 2     99,799
Calibration 3     99,659
ssj_ops@calibrated=99,729
100% 99.9% 99,729 99,609
90% 88.9% 89,756 88,617
80% 79.3% 79,783 79,049
70% 70.1% 69,810 69,860
60% 59.9% 59,837 59,782
50% 50.4% 49,864 50,261
40% 40.2% 39,892 40,044
30% 30.1% 29,919 30,012
20% 20.1% 19,946 20,011
10% 10.3% 9,973 10,238
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,163
Calibration 2     98,943
Calibration 3     98,227
ssj_ops@calibrated=98,585
100% 99.3% 98,585 97,886
90% 89.1% 88,726 87,822
80% 79.8% 78,868 78,674
70% 70.8% 69,009 69,836
60% 60.0% 59,151 59,152
50% 49.8% 49,292 49,135
40% 40.4% 39,434 39,877
30% 30.3% 29,575 29,844
20% 20.6% 19,717 20,294
10% 10.1% 9,858 9,916
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,313
Calibration 2     99,848
Calibration 3     99,202
ssj_ops@calibrated=99,525
100% 99.3% 99,525 98,822
90% 89.0% 89,573 88,589
80% 80.9% 79,620 80,516
70% 69.7% 69,668 69,360
60% 59.3% 59,715 58,977
50% 50.4% 49,763 50,141
40% 41.0% 39,810 40,806
30% 30.2% 29,858 30,074
20% 19.7% 19,905 19,581
10% 10.3% 9,953 10,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,749
Calibration 2     98,769
Calibration 3     98,865
ssj_ops@calibrated=98,817
100% 99.7% 98,817 98,528
90% 90.0% 88,935 88,944
80% 79.9% 79,054 78,962
70% 70.3% 69,172 69,441
60% 60.4% 59,290 59,681
50% 49.7% 49,408 49,127
40% 39.9% 39,527 39,476
30% 30.1% 29,645 29,734
20% 19.6% 19,763 19,405
10% 10.0% 9,882 9,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,897
Calibration 2     100,175
Calibration 3     99,661
ssj_ops@calibrated=99,918
100% 100.2% 99,918 100,163
90% 89.1% 89,926 89,062
80% 77.2% 79,934 77,124
70% 70.0% 69,943 69,943
60% 60.2% 59,951 60,143
50% 50.5% 49,959 50,409
40% 39.7% 39,967 39,648
30% 30.5% 29,975 30,440
20% 20.4% 19,984 20,366
10% 10.2% 9,992 10,230
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,952
Calibration 2     100,636
Calibration 3     100,488
ssj_ops@calibrated=100,562
100% 99.6% 100,562 100,115
90% 89.7% 90,506 90,238
80% 80.5% 80,449 80,960
70% 71.2% 70,393 71,551
60% 59.8% 60,337 60,120
50% 50.3% 50,281 50,629
40% 39.1% 40,225 39,330
30% 30.2% 30,169 30,373
20% 20.1% 20,112 20,226
10% 10.1% 10,056 10,139
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,515
Calibration 2     99,216
Calibration 3     99,311
ssj_ops@calibrated=99,264
100% 99.9% 99,264 99,171
90% 89.4% 89,337 88,727
80% 79.8% 79,411 79,226
70% 69.8% 69,485 69,273
60% 58.9% 59,558 58,493
50% 50.4% 49,632 50,046
40% 40.5% 39,705 40,206
30% 30.7% 29,779 30,493
20% 19.9% 19,853 19,749
10% 10.2% 9,926 10,082
Active Idle   0 0

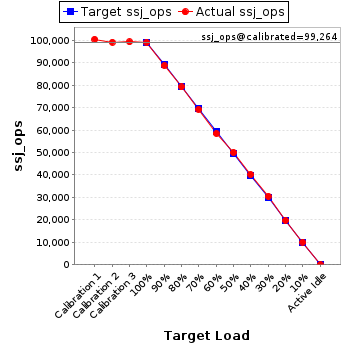

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,049
Calibration 2     99,156
Calibration 3     98,288
ssj_ops@calibrated=98,722
100% 99.9% 98,722 98,647
90% 87.9% 88,850 86,780
80% 80.0% 78,978 78,961
70% 69.9% 69,106 69,054
60% 59.9% 59,233 59,146
50% 50.2% 49,361 49,578
40% 40.3% 39,489 39,804
30% 30.5% 29,617 30,096
20% 20.2% 19,744 19,980
10% 9.8% 9,872 9,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,257
Calibration 2     99,332
Calibration 3     99,607
ssj_ops@calibrated=99,470
100% 99.5% 99,470 98,994
90% 88.9% 89,523 88,394
80% 79.8% 79,576 79,333
70% 70.4% 69,629 70,074
60% 59.6% 59,682 59,313
50% 50.0% 49,735 49,691
40% 40.1% 39,788 39,916
30% 29.9% 29,841 29,754
20% 20.1% 19,894 20,039
10% 10.0% 9,947 9,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,163
Calibration 2     99,342
Calibration 3     99,503
ssj_ops@calibrated=99,423
100% 99.1% 99,423 98,549
90% 89.0% 89,480 88,474
80% 79.5% 79,538 79,006
70% 70.7% 69,596 70,272
60% 58.8% 59,654 58,428
50% 50.4% 49,711 50,130
40% 39.6% 39,769 39,345
30% 30.0% 29,827 29,786
20% 19.6% 19,885 19,443
10% 10.0% 9,942 9,954
Active Idle   0 0

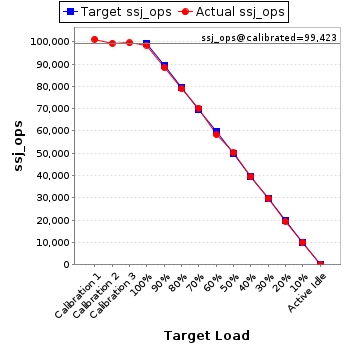

Graph of results
See the JVM Instance Performance Report for additional details.
