SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R7615 (AMD EPYC 9654P, 2.40 GHz) | SPECpower_ssj2008 = 24,677 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Aug 26, 2023 |
| Hardware Availability: | Feb-2023 | Software Availability: | Jan-2023 | Publication: | Sep 18, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

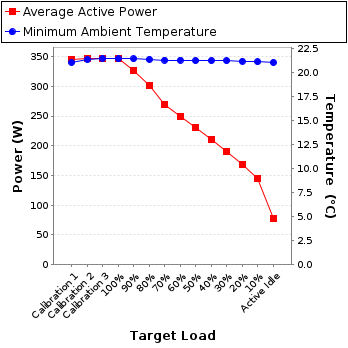

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 344 | 21.1 |
| Calibration 2 | 347 | 21.4 |
| Calibration 3 | 347 | 21.5 |
| 100% | 347 | 21.4 |
| 90% | 327 | 21.4 |
| 80% | 301 | 21.4 |
| 70% | 269 | 21.3 |
| 60% | 249 | 21.3 |
| 50% | 231 | 21.2 |
| 40% | 211 | 21.2 |
| 30% | 190 | 21.2 |
| 20% | 168 | 21.2 |
| 10% | 145 | 21.1 |
| Active Idle | 77.4 | 21.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91J936840 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T76419 |
| Date of Calibration: | 25-Oct-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300.0 | 1.66 | 2.0 | 0.989 | 344 | 0.4% |
| Calibration 2 | 210 | 300.0 | 1.67 | 2.0 | 0.989 | 347 | 0.4% |
| Calibration 3 | 210 | 300.0 | 1.67 | 2.0 | 0.989 | 347 | 0.4% |
| 100% | 210 | 300.0 | 1.67 | 2.0 | 0.989 | 347 | 0.4% |
| 90% | 210 | 300.0 | 1.58 | 2.0 | 0.988 | 327 | 0.4% |
| 80% | 210 | 300.0 | 1.45 | 2.0 | 0.987 | 301 | 0.4% |
| 70% | 210 | 300.0 | 1.30 | 2.0 | 0.987 | 269 | 0.4% |
| 60% | 210 | 300.0 | 1.21 | 2.0 | 0.985 | 249 | 0.4% |
| 50% | 210 | 300.0 | 1.12 | 2.0 | 0.983 | 231 | 0.4% |
| 40% | 210 | 300.0 | 1.02 | 2.0 | 0.980 | 211 | 0.5% |
| 30% | 210 | 300.0 | 0.926 | 1.0 | 0.976 | 190 | 0.4% |
| 20% | 210 | 300.0 | 0.825 | 1.0 | 0.971 | 168 | 0.4% |
| 10% | 210 | 300.0 | 0.719 | 1.0 | 0.964 | 145 | 0.4% |
| Active Idle | 210 | 300.0 | 0.406 | 0.5 | 0.907 | 77.4 | 0.4% |
