SPECpower_ssj2008

Lenovo Global Technology Think System SR665 V3			SPECpower_ssj2008 = 33,012 overall ssj_ops/watt
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 23, 2023
Hardware Availability:	Aug-2023	Software Availability:	Jun-2022	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP4
OS Version:	5.14.21-150400.22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

none

Benchmark started via ssh
Each JVM instance was bound to 4 logical processors
cpupower frequency-set -g ondemand
kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1600000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0xaa00205 for the AMD EPYC 9754 processor

Software
Operating System (OS):	Microsoft Windows Server 2019 DataCenter - Version 1809 (OS Build 17763.2268)
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA, Inc.
Model:	WT310E
Serial Number:	C3UD17023E
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by:	GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label:	J202210116758A-0002
Date of Calibration:	19-Oct-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to PSU 1

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

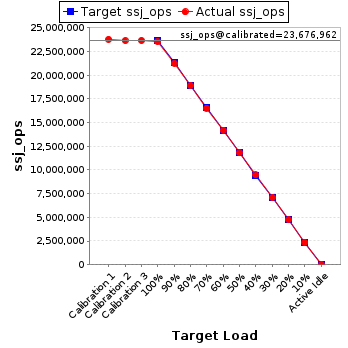

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	591	21.9
90%	514	21.4
80%	461	21.4
70%	426	21.8
60%	393	22.0
50%	361	21.8
40%	329	21.7
30%	292	21.7
20%	253	21.7
10%	212	21.8
Active Idle	107	21.9

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	21.4	43

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
