Hewlett Packard Enterprise ProLiant DL345 Gen11 SPECpower_ssj2008 = 29,124 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: May 18, 2023
Hardware Availability: Jul-2023 Software Availability: Jul-2023 Publication: Jun 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.4% 14,061,543 426 32,999
90% 88.6% 12,522,810 377 33,179
80% 79.9% 11,298,627 356 31,750
70% 70.0% 9,897,102 280 35,346
60% 60.0% 8,490,793 248 34,175
50% 50.0% 7,065,067 226 31,285
40% 40.0% 5,660,630 204 27,802
30% 30.0% 4,241,476 181 23,412
20% 20.0% 2,830,927 158 17,896
10% 10.0% 1,419,511 133 10,656
Active Idle 0 70.7 0
∑ssj_ops / ∑power = 29,124

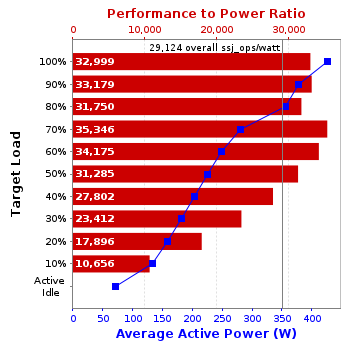

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL345 Gen11
Form Factor: 2U
CPU Name: AMD EPYC 9754 2.25 GHz
CPU Characteristics: 128-Core, 2.25 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 1 chip, 128 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-4800B-R; all slots populated
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit (P03178-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter (P08449-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.2+8-LTS-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 64
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: A56 v1.34 (04/06/2023)
Management Firmware Version: 1.30 Feb 28 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 X Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2019
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_91-b15 (build 25.91-b15, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GT25H-40-1
Date of Calibration: 20-May-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supplies 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 426 27.2
90% 377 27.4
80% 356 27.2
70% 280 26.8
60% 248 26.8
50% 226 26.9
40% 204 26.2
30% 181 25.6
20% 158 25.6
10% 133 25.9
Active Idle 70.7 26.4
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 25.6 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     13,515,546
Calibration 2     14,184,113
Calibration 3     14,097,794
ssj_ops@calibrated=14,140,954
100% 99.4% 14,140,954 14,061,543
90% 88.6% 12,726,858 12,522,810
80% 79.9% 11,312,763 11,298,627
70% 70.0% 9,898,667 9,897,102
60% 60.0% 8,484,572 8,490,793
50% 50.0% 7,070,477 7,065,067
40% 40.0% 5,656,381 5,660,630
30% 30.0% 4,242,286 4,241,476
20% 20.0% 2,828,191 2,830,927
10% 10.0% 1,414,095 1,419,511
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
