SPECpower_ssj2008

New H3C Technologies Co., Ltd. H3C UniServer R4700 G5			SPECpower_ssj2008 = 10,628 overall ssj_ops/watt
Test Sponsor:	New H3C Technologies Co., Ltd.	SPEC License #:	9066	Test Method:	Single Node
Tested By:	New H3C Technologies Co., Ltd.	Test Location:	Hangzhou, Zhejiang, China	Test Date:	May 7, 2023
Hardware Availability:	Mar-2023	Software Availability:	Jan-2023	Publication:	May 24, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	New H3C Technologies Co., Ltd.
Model:	H3C UniServer R4700 G5
Form Factor:	1U
CPU Name:	Intel Xeon Platinum 8360Y
CPU Characteristics:	36-Core, 2.40GHz, 54MB L3 Cache
CPU Frequency (MHz):	2400
CPU(s) Enabled:	72 cores, 2 chips, 36 cores/chip
Hardware Threads:	144 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per core
Tertiary Cache:	54 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	512
# and size of DIMM:	16 x 32 GB
Memory Details:	16 x 32GB 2Rx8 PC4-3200AA-RE4 Samsung; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W):	1 x 1300
Power Supply Details:	H3C GW-CRPS1300D3
Disk Drive:	1 x Intel M.2 SSD 240GB SSDSCKKB240GZ
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	4/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
OS Version:	Version 1809(OS Build 17663.1)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode)
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE[0-3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC0000000,0x300000000,0xC00000000]
JVM Instances:	72
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	5.58(C35)
Management Firmware Version:	3.35
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

See SUT Notes

Using the local security settings console.
Disabled 3 NIC ports.
Lock pages in memory was enabled for the user running the benchmark.
Power plan set to Balanced.
Hard disk set to turn off after 1 minute.
Display set to turn off after 1 minute.
Minimum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Yes: The test sponsor attests, as of date of publication, the CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, the CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains Intel microcode version 0X0D000375 for the Intel Xeon Platinum 8360Y processor.

Software
Operating System (OS):	Windows Server 2008 R2 Enterprise Edition
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	CHROMA
Model:	66203
Serial Number:	662030000500
Connectivity:	GPIB
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by:	CEPREI Calibration and Testing Center
Calibration Label:	B210202003
Date of Calibration:	23-Nov-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to PSU

Temperature Sensor temp1
Hardware Vendor:	DIGI.
Model:	Watchport/H
Driver Version:	6.2.1.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	Placed in front the main airflow inlet of the SUT less than 50mm

None

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	653	24.7
90%	498	24.6
80%	390	24.6
70%	342	24.4
60%	309	24.2
50%	282	24.1
40%	259	24.0
30%	238	23.9
20%	216	23.9
10%	191	23.8
Active Idle	133	23.8

Line Standard	Minimum Temperature (°C)	Elevation (m)
235V / 50 Hz / 1 phase / 2 wires	23.8	132

See the Power/Temperature Details Report for additional details.

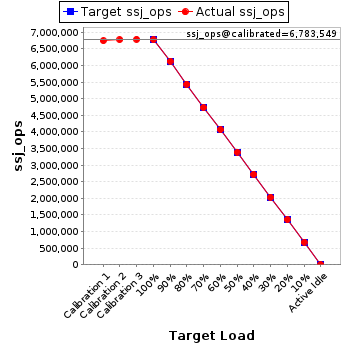

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
