Lenovo Global Technology Think System SR635 V3 ssj_ops@100% = 11,652,818
ssj_ops@100% per JVM = 242,767
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Feb 28, 2023
Hardware Availability: Apr-2023 Software Availability: Jan-2023 Publication: Mar 15, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,705,466
Calibration 2     11,704,602
Calibration 3     11,707,100
ssj_ops@calibrated=11,705,851
100% 99.5% 11,705,851 11,652,818
90% 88.9% 10,535,266 10,407,779
80% 79.9% 9,364,681 9,353,909
70% 70.0% 8,194,096 8,191,264
60% 60.0% 7,023,511 7,018,338
50% 50.0% 5,852,926 5,849,867
40% 40.0% 4,682,341 4,685,989
30% 30.0% 3,511,755 3,510,840
20% 20.0% 2,341,170 2,342,278
10% 10.0% 1,170,585 1,173,007
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR635 V3
Form Factor: 1U
CPU Name: AMD EPYC 9654 2.40GHz
CPU Characteristics: 96-Core, 2.40GHz, 384MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 96 cores, 1 chip, 96 cores/chip
Hardware Threads: 192 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 12 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:4P57A82019
Disk Drive: 1 x 960GB M.2 SSD P/N:4XB7A13999 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Ethernet 1GbE 4-Port Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.1487)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0-11] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 48
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: KAE109A
Management Firmware Version: KAX313A
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5022291
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-B1JR5I5AHQQ.001 241,946
WIN-B1JR5I5AHQQ.002 246,041
WIN-B1JR5I5AHQQ.003 242,607
WIN-B1JR5I5AHQQ.004 242,145
WIN-B1JR5I5AHQQ.005 243,025
WIN-B1JR5I5AHQQ.006 243,083
WIN-B1JR5I5AHQQ.007 247,214
WIN-B1JR5I5AHQQ.008 239,554
WIN-B1JR5I5AHQQ.009 246,042
WIN-B1JR5I5AHQQ.010 244,496
WIN-B1JR5I5AHQQ.011 237,784
WIN-B1JR5I5AHQQ.012 247,058
WIN-B1JR5I5AHQQ.013 240,051
WIN-B1JR5I5AHQQ.014 238,819
WIN-B1JR5I5AHQQ.015 244,579
WIN-B1JR5I5AHQQ.016 242,284
WIN-B1JR5I5AHQQ.017 241,439
WIN-B1JR5I5AHQQ.018 246,610
WIN-B1JR5I5AHQQ.019 244,254
WIN-B1JR5I5AHQQ.020 241,341
WIN-B1JR5I5AHQQ.021 248,286
WIN-B1JR5I5AHQQ.022 244,939
WIN-B1JR5I5AHQQ.023 239,897
WIN-B1JR5I5AHQQ.024 241,498
WIN-B1JR5I5AHQQ.025 241,508
WIN-B1JR5I5AHQQ.026 244,626
WIN-B1JR5I5AHQQ.027 241,976
WIN-B1JR5I5AHQQ.028 241,402
WIN-B1JR5I5AHQQ.029 242,106
WIN-B1JR5I5AHQQ.030 239,644
WIN-B1JR5I5AHQQ.031 247,644
WIN-B1JR5I5AHQQ.032 240,902
WIN-B1JR5I5AHQQ.033 247,566
WIN-B1JR5I5AHQQ.034 244,569
WIN-B1JR5I5AHQQ.035 242,075
WIN-B1JR5I5AHQQ.036 237,875
WIN-B1JR5I5AHQQ.037 245,686
WIN-B1JR5I5AHQQ.038 242,006
WIN-B1JR5I5AHQQ.039 241,413
WIN-B1JR5I5AHQQ.040 241,746
WIN-B1JR5I5AHQQ.041 242,336
WIN-B1JR5I5AHQQ.042 243,876
WIN-B1JR5I5AHQQ.043 239,927
WIN-B1JR5I5AHQQ.044 238,731
WIN-B1JR5I5AHQQ.045 242,697
WIN-B1JR5I5AHQQ.046 244,776
WIN-B1JR5I5AHQQ.047 240,702
WIN-B1JR5I5AHQQ.048 242,040
ssj_ops@100% 11,652,818
ssj_ops@100% per JVM 242,767
Graph of per-instance results
JVM 'WIN-B1JR5I5AHQQ.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,530
Calibration 2     242,598
Calibration 3     245,122
ssj_ops@calibrated=243,860
100% 99.2% 243,860 241,946
90% 88.5% 219,474 215,751
80% 80.0% 195,088 195,095
70% 70.0% 170,702 170,594
60% 59.9% 146,316 146,025
50% 50.0% 121,930 121,919
40% 40.0% 97,544 97,532
30% 30.3% 73,158 73,816
20% 20.3% 48,772 49,455
10% 9.9% 24,386 24,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,811
Calibration 2     245,953
Calibration 3     247,544
ssj_ops@calibrated=246,748
100% 99.7% 246,748 246,041
90% 89.2% 222,074 220,199
80% 80.0% 197,399 197,478
70% 69.9% 172,724 172,409
60% 60.2% 148,049 148,524
50% 50.0% 123,374 123,282
40% 39.4% 98,699 97,334
30% 30.2% 74,025 74,442
20% 20.2% 49,350 49,782
10% 10.1% 24,675 24,886
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     247,353
Calibration 2     244,774
Calibration 3     245,343
ssj_ops@calibrated=245,059
100% 99.0% 245,059 242,607
90% 88.5% 220,553 216,835
80% 79.6% 196,047 195,119
70% 70.7% 171,541 173,213
60% 59.9% 147,035 146,828
50% 49.9% 122,529 122,341
40% 39.9% 98,024 97,689
30% 29.7% 73,518 72,863
20% 19.9% 49,012 48,703
10% 10.3% 24,506 25,123
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     241,201
Calibration 2     243,600
Calibration 3     241,688
ssj_ops@calibrated=242,644
100% 99.8% 242,644 242,145
90% 89.4% 218,380 216,858
80% 79.7% 194,115 193,325
70% 70.3% 169,851 170,692
60% 60.2% 145,586 146,185
50% 50.2% 121,322 121,732
40% 39.7% 97,058 96,364
30% 30.4% 72,793 73,880
20% 20.0% 48,529 48,450
10% 10.2% 24,264 24,715
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     241,944
Calibration 2     244,415
Calibration 3     244,302
ssj_ops@calibrated=244,358
100% 99.5% 244,358 243,025
90% 89.1% 219,923 217,729
80% 80.4% 195,487 196,495
70% 69.7% 171,051 170,243
60% 60.2% 146,615 146,987
50% 49.7% 122,179 121,450
40% 39.9% 97,743 97,472
30% 29.8% 73,308 72,896
20% 20.1% 48,872 49,043
10% 10.0% 24,436 24,373
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,144
Calibration 2     245,279
Calibration 3     244,287
ssj_ops@calibrated=244,783
100% 99.3% 244,783 243,083
90% 88.4% 220,305 216,418
80% 80.2% 195,826 196,320
70% 70.0% 171,348 171,434
60% 59.9% 146,870 146,534
50% 49.7% 122,392 121,572
40% 40.5% 97,913 99,066
30% 30.0% 73,435 73,440
20% 20.6% 48,957 50,335
10% 10.1% 24,478 24,621
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,848
Calibration 2     246,625
Calibration 3     246,735
ssj_ops@calibrated=246,680
100% 100.2% 246,680 247,214
90% 89.2% 222,012 220,116
80% 80.4% 197,344 198,444
70% 70.2% 172,676 173,171
60% 59.9% 148,008 147,808
50% 49.5% 123,340 122,177
40% 40.2% 98,672 99,181
30% 29.8% 74,004 73,512
20% 20.0% 49,336 49,322
10% 10.0% 24,668 24,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,262
Calibration 2     241,574
Calibration 3     241,259
ssj_ops@calibrated=241,416
100% 99.2% 241,416 239,554
90% 89.2% 217,275 215,361
80% 80.2% 193,133 193,660
70% 70.4% 168,991 169,920
60% 60.0% 144,850 144,941
50% 49.7% 120,708 119,994
40% 40.0% 96,567 96,674
30% 29.5% 72,425 71,231
20% 19.9% 48,283 47,935
10% 9.8% 24,142 23,669
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     247,300
Calibration 2     247,468
Calibration 3     247,720
ssj_ops@calibrated=247,594
100% 99.4% 247,594 246,042
90% 89.0% 222,835 220,481
80% 79.7% 198,075 197,217
70% 69.6% 173,316 172,436
60% 59.8% 148,556 148,033
50% 49.9% 123,797 123,619
40% 40.1% 99,038 99,395
30% 30.2% 74,278 74,860
20% 20.2% 49,519 49,915
10% 10.1% 24,759 25,015
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,861
Calibration 2     244,709
Calibration 3     247,402
ssj_ops@calibrated=246,055
100% 99.4% 246,055 244,496
90% 88.9% 221,450 218,832
80% 80.0% 196,844 196,790
70% 70.1% 172,239 172,412
60% 59.7% 147,633 146,940
50% 49.5% 123,028 121,748
40% 40.3% 98,422 99,281
30% 29.9% 73,817 73,575
20% 20.0% 49,211 49,288
10% 9.9% 24,606 24,414
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

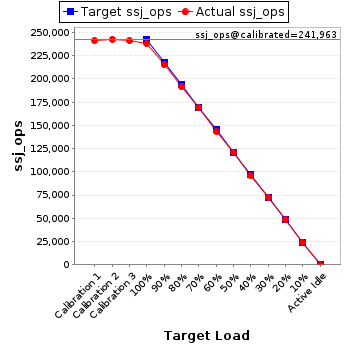

JVM 'WIN-B1JR5I5AHQQ.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     241,249
Calibration 2     242,756
Calibration 3     241,171
ssj_ops@calibrated=241,963
100% 98.3% 241,963 237,784
90% 88.9% 217,767 215,072
80% 79.2% 193,571 191,617
70% 69.9% 169,374 169,069
60% 59.2% 145,178 143,293
50% 50.0% 120,982 121,078
40% 39.6% 96,785 95,881
30% 30.1% 72,589 72,718
20% 20.1% 48,393 48,541
10% 9.9% 24,196 23,924
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     247,510
Calibration 2     248,267
Calibration 3     247,595
ssj_ops@calibrated=247,931
100% 99.6% 247,931 247,058
90% 89.1% 223,138 220,904
80% 80.0% 198,345 198,410
70% 70.6% 173,552 175,006
60% 60.0% 148,759 148,765
50% 50.2% 123,966 124,393
40% 40.3% 99,172 99,991
30% 30.0% 74,379 74,313
20% 20.1% 49,586 49,928
10% 10.1% 24,793 24,981
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,990
Calibration 2     241,846
Calibration 3     242,120
ssj_ops@calibrated=241,983
100% 99.2% 241,983 240,051
90% 88.4% 217,784 213,815
80% 79.9% 193,586 193,386
70% 69.8% 169,388 169,000
60% 60.2% 145,190 145,624
50% 49.6% 120,991 120,141
40% 40.2% 96,793 97,374
30% 30.2% 72,595 73,009
20% 20.0% 48,397 48,355
10% 10.2% 24,198 24,752
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

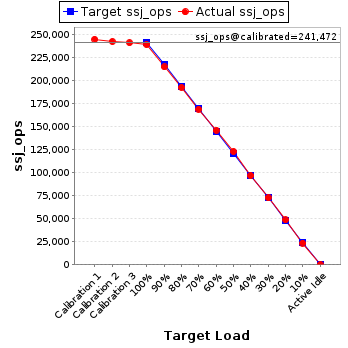

JVM 'WIN-B1JR5I5AHQQ.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     244,685
Calibration 2     242,163
Calibration 3     240,781
ssj_ops@calibrated=241,472
100% 98.9% 241,472 238,819
90% 88.9% 217,325 214,561
80% 79.6% 193,177 192,324
70% 69.9% 169,030 168,732
60% 60.4% 144,883 145,856
50% 50.9% 120,736 122,813
40% 40.0% 96,589 96,476
30% 30.0% 72,442 72,467
20% 20.1% 48,294 48,489
10% 9.7% 24,147 23,508
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

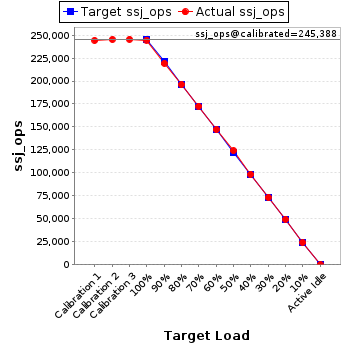

JVM 'WIN-B1JR5I5AHQQ.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     244,269
Calibration 2     245,254
Calibration 3     245,522
ssj_ops@calibrated=245,388
100% 99.7% 245,388 244,579
90% 89.4% 220,849 219,260
80% 79.9% 196,310 196,173
70% 70.3% 171,771 172,563
60% 60.0% 147,233 147,285
50% 50.6% 122,694 124,097
40% 40.1% 98,155 98,369
30% 29.8% 73,616 73,229
20% 20.2% 49,078 49,502
10% 9.9% 24,539 24,294
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     242,825
Calibration 2     242,590
Calibration 3     243,501
ssj_ops@calibrated=243,045
100% 99.7% 243,045 242,284
90% 89.3% 218,741 217,128
80% 79.6% 194,436 193,577
70% 69.5% 170,132 168,965
60% 59.8% 145,827 145,336
50% 49.7% 121,523 120,758
40% 39.7% 97,218 96,454
30% 30.1% 72,914 73,075
20% 19.7% 48,609 47,968
10% 10.0% 24,305 24,246
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,841
Calibration 2     242,557
Calibration 3     243,208
ssj_ops@calibrated=242,883
100% 99.4% 242,883 241,439
90% 88.7% 218,594 215,445
80% 80.6% 194,306 195,787
70% 70.3% 170,018 170,629
60% 59.9% 145,730 145,411
50% 50.4% 121,441 122,341
40% 40.1% 97,153 97,491
30% 29.7% 72,865 72,157
20% 19.7% 48,577 47,820
10% 10.0% 24,288 24,401
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     248,033
Calibration 2     247,241
Calibration 3     247,478
ssj_ops@calibrated=247,360
100% 99.7% 247,360 246,610
90% 89.1% 222,624 220,362
80% 79.6% 197,888 196,844
70% 70.4% 173,152 174,201
60% 60.0% 148,416 148,523
50% 49.5% 123,680 122,420
40% 40.1% 98,944 99,071
30% 30.1% 74,208 74,400
20% 19.8% 49,472 49,023
10% 10.0% 24,736 24,765
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,956
Calibration 2     244,378
Calibration 3     244,835
ssj_ops@calibrated=244,607
100% 99.9% 244,607 244,254
90% 88.4% 220,146 216,161
80% 79.4% 195,685 194,189
70% 70.0% 171,225 171,250
60% 59.8% 146,764 146,376
50% 50.1% 122,303 122,500
40% 40.3% 97,843 98,662
30% 30.0% 73,382 73,492
20% 20.1% 48,921 49,127
10% 10.1% 24,461 24,763
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     242,842
Calibration 2     242,610
Calibration 3     240,853
ssj_ops@calibrated=241,732
100% 99.8% 241,732 241,341
90% 89.0% 217,559 215,219
80% 79.4% 193,385 192,005
70% 69.9% 169,212 168,956
60% 60.5% 145,039 146,360
50% 50.2% 120,866 121,314
40% 40.2% 96,693 97,162
30% 30.2% 72,520 72,905
20% 20.0% 48,346 48,284
10% 9.7% 24,173 23,552
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     246,549
Calibration 2     249,392
Calibration 3     248,976
ssj_ops@calibrated=249,184
100% 99.6% 249,184 248,286
90% 88.7% 224,266 221,107
80% 80.1% 199,347 199,473
70% 69.8% 174,429 173,927
60% 59.8% 149,511 149,011
50% 50.0% 124,592 124,640
40% 40.6% 99,674 101,221
30% 30.4% 74,755 75,857
20% 19.9% 49,837 49,650
10% 10.1% 24,918 25,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,440
Calibration 2     246,216
Calibration 3     245,787
ssj_ops@calibrated=246,001
100% 99.6% 246,001 244,939
90% 88.7% 221,401 218,186
80% 80.2% 196,801 197,256
70% 70.2% 172,201 172,784
60% 59.8% 147,601 147,094
50% 49.5% 123,001 121,740
40% 40.1% 98,401 98,762
30% 30.0% 73,800 73,879
20% 20.0% 49,200 49,139
10% 10.1% 24,600 24,891
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,283
Calibration 2     240,716
Calibration 3     240,508
ssj_ops@calibrated=240,612
100% 99.7% 240,612 239,897
90% 88.5% 216,551 212,895
80% 80.4% 192,489 193,450
70% 70.5% 168,428 169,552
60% 60.2% 144,367 144,836
50% 49.7% 120,306 119,478
40% 40.0% 96,245 96,268
30% 30.0% 72,184 72,204
20% 19.7% 48,122 47,378
10% 10.0% 24,061 24,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     241,406
Calibration 2     242,301
Calibration 3     241,689
ssj_ops@calibrated=241,995
100% 99.8% 241,995 241,498
90% 88.7% 217,796 214,583
80% 80.1% 193,596 193,883
70% 70.2% 169,397 169,920
60% 59.9% 145,197 144,934
50% 50.0% 120,998 121,043
40% 40.2% 96,798 97,281
30% 30.1% 72,599 72,877
20% 19.7% 48,399 47,709
10% 10.1% 24,200 24,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,819
Calibration 2     240,645
Calibration 3     241,833
ssj_ops@calibrated=241,239
100% 100.1% 241,239 241,508
90% 89.3% 217,115 215,529
80% 80.3% 192,991 193,660
70% 69.5% 168,867 167,676
60% 59.9% 144,743 144,533
50% 50.3% 120,619 121,412
40% 40.3% 96,496 97,221
30% 30.0% 72,372 72,375
20% 20.0% 48,248 48,240
10% 10.0% 24,124 24,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,678
Calibration 2     245,114
Calibration 3     245,558
ssj_ops@calibrated=245,336
100% 99.7% 245,336 244,626
90% 88.9% 220,803 218,159
80% 80.5% 196,269 197,452
70% 70.2% 171,735 172,123
60% 60.6% 147,202 148,740
50% 49.9% 122,668 122,472
40% 39.7% 98,134 97,497
30% 29.9% 73,601 73,296
20% 20.1% 49,067 49,348
10% 10.0% 24,534 24,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     242,114
Calibration 2     244,846
Calibration 3     242,869
ssj_ops@calibrated=243,858
100% 99.2% 243,858 241,976
90% 88.5% 219,472 215,883
80% 80.2% 195,086 195,611
70% 70.0% 170,700 170,816
60% 60.1% 146,315 146,540
50% 49.6% 121,929 120,959
40% 40.1% 97,543 97,711
30% 29.8% 73,157 72,722
20% 19.9% 48,772 48,530
10% 10.1% 24,386 24,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     244,780
Calibration 2     243,449
Calibration 3     243,428
ssj_ops@calibrated=243,439
100% 99.2% 243,439 241,402
90% 89.1% 219,095 216,783
80% 79.7% 194,751 193,986
70% 69.7% 170,407 169,774
60% 59.9% 146,063 145,898
50% 50.0% 121,719 121,748
40% 40.3% 97,375 98,145
30% 30.1% 73,032 73,268
20% 19.9% 48,688 48,544
10% 10.4% 24,344 25,259
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     242,382
Calibration 2     243,249
Calibration 3     244,076
ssj_ops@calibrated=243,663
100% 99.4% 243,663 242,106
90% 88.1% 219,297 214,749
80% 80.0% 194,930 195,026
70% 69.7% 170,564 169,811
60% 59.6% 146,198 145,288
50% 50.2% 121,831 122,334
40% 40.0% 97,465 97,521
30% 30.0% 73,099 73,190
20% 19.9% 48,733 48,533
10% 10.0% 24,366 24,256
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,715
Calibration 2     240,390
Calibration 3     239,907
ssj_ops@calibrated=240,148
100% 99.8% 240,148 239,644
90% 89.3% 216,133 214,350
80% 79.4% 192,119 190,663
70% 69.6% 168,104 167,237
60% 60.5% 144,089 145,261
50% 50.1% 120,074 120,431
40% 40.3% 96,059 96,686
30% 29.8% 72,044 71,663
20% 20.1% 48,030 48,278
10% 10.1% 24,015 24,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     247,033
Calibration 2     246,761
Calibration 3     247,853
ssj_ops@calibrated=247,307
100% 100.1% 247,307 247,644
90% 88.6% 222,576 219,196
80% 79.5% 197,846 196,636
70% 70.0% 173,115 173,053
60% 59.5% 148,384 147,190
50% 49.8% 123,653 123,159
40% 40.3% 98,923 99,597
30% 30.1% 74,192 74,425
20% 20.0% 49,461 49,393
10% 10.0% 24,731 24,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

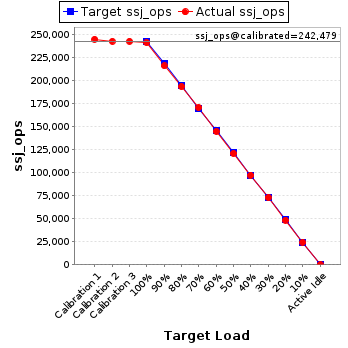

JVM 'WIN-B1JR5I5AHQQ.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     244,643
Calibration 2     242,450
Calibration 3     242,509
ssj_ops@calibrated=242,479
100% 99.3% 242,479 240,902
90% 89.0% 218,231 215,722
80% 79.7% 193,983 193,183
70% 70.3% 169,735 170,562
60% 59.6% 145,488 144,541
50% 49.8% 121,240 120,640
40% 40.0% 96,992 97,106
30% 30.0% 72,744 72,746
20% 19.9% 48,496 48,369
10% 10.1% 24,248 24,450
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     248,720
Calibration 2     248,444
Calibration 3     248,610
ssj_ops@calibrated=248,527
100% 99.6% 248,527 247,566
90% 88.9% 223,674 220,983
80% 80.1% 198,822 198,954
70% 69.9% 173,969 173,738
60% 59.9% 149,116 148,935
50% 49.9% 124,264 123,985
40% 40.3% 99,411 100,155
30% 29.9% 74,558 74,336
20% 20.1% 49,705 49,865
10% 9.8% 24,853 24,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     244,435
Calibration 2     245,755
Calibration 3     244,830
ssj_ops@calibrated=245,293
100% 99.7% 245,293 244,569
90% 89.3% 220,763 219,105
80% 79.9% 196,234 195,885
70% 70.4% 171,705 172,720
60% 59.4% 147,176 145,808
50% 50.2% 122,646 123,258
40% 39.6% 98,117 97,124
30% 29.7% 73,588 72,733
20% 20.2% 49,059 49,625
10% 10.2% 24,529 24,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     246,842
Calibration 2     243,856
Calibration 3     243,510
ssj_ops@calibrated=243,683
100% 99.3% 243,683 242,075
90% 88.7% 219,315 216,097
80% 80.4% 194,946 195,894
70% 70.2% 170,578 171,130
60% 59.2% 146,210 144,347
50% 50.1% 121,841 122,154
40% 39.7% 97,473 96,844
30% 30.2% 73,105 73,638
20% 19.8% 48,737 48,291
10% 10.1% 24,368 24,711
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     239,199
Calibration 2     238,040
Calibration 3     239,675
ssj_ops@calibrated=238,858
100% 99.6% 238,858 237,875
90% 89.0% 214,972 212,619
80% 80.3% 191,086 191,879
70% 69.4% 167,200 165,879
60% 59.6% 143,315 142,292
50% 50.5% 119,429 120,601
40% 39.8% 95,543 95,005
30% 30.2% 71,657 72,164
20% 20.0% 47,772 47,835
10% 10.0% 23,886 23,921
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     246,273
Calibration 2     247,023
Calibration 3     247,716
ssj_ops@calibrated=247,369
100% 99.3% 247,369 245,686
90% 88.7% 222,632 219,433
80% 80.2% 197,896 198,474
70% 70.2% 173,159 173,683
60% 60.4% 148,422 149,516
50% 49.9% 123,685 123,471
40% 40.1% 98,948 99,172
30% 30.0% 74,211 74,308
20% 20.0% 49,474 49,363
10% 9.9% 24,737 24,586
Active Idle   0 0

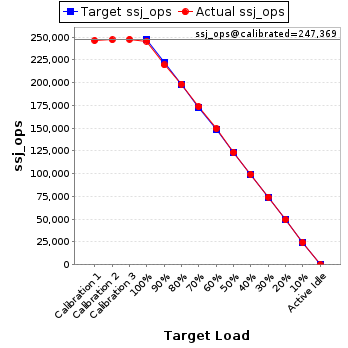

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     243,083
Calibration 2     242,602
Calibration 3     244,210
ssj_ops@calibrated=243,406
100% 99.4% 243,406 242,006
90% 88.9% 219,065 216,328
80% 79.9% 194,725 194,504
70% 69.8% 170,384 169,930
60% 59.6% 146,044 145,159
50% 50.1% 121,703 121,877
40% 39.7% 97,362 96,647
30% 29.5% 73,022 71,701
20% 20.1% 48,681 48,830
10% 9.9% 24,341 24,179
Active Idle   0 0

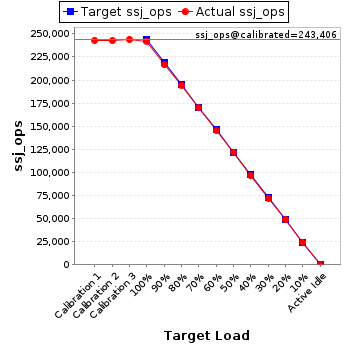

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     244,437
Calibration 2     242,668
Calibration 3     241,530
ssj_ops@calibrated=242,099
100% 99.7% 242,099 241,413
90% 89.4% 217,889 216,425
80% 79.2% 193,679 191,692
70% 69.8% 169,469 168,943
60% 59.8% 145,259 144,853
50% 50.0% 121,050 121,062
40% 40.0% 96,840 96,834
30% 30.0% 72,630 72,568
20% 20.1% 48,420 48,587
10% 9.9% 24,210 24,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,428
Calibration 2     241,584
Calibration 3     241,522
ssj_ops@calibrated=241,553
100% 100.1% 241,553 241,746
90% 88.6% 217,398 214,120
80% 80.2% 193,243 193,761
70% 70.1% 169,087 169,400
60% 60.3% 144,932 145,716
50% 49.7% 120,777 120,079
40% 39.7% 96,621 95,853
30% 29.7% 72,466 71,749
20% 19.8% 48,311 47,909
10% 10.1% 24,155 24,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     244,171
Calibration 2     243,974
Calibration 3     245,405
ssj_ops@calibrated=244,690
100% 99.0% 244,690 242,336
90% 88.9% 220,221 217,528
80% 79.9% 195,752 195,455
70% 70.0% 171,283 171,319
60% 60.1% 146,814 146,998
50% 50.2% 122,345 122,919
40% 39.9% 97,876 97,548
30% 30.5% 73,407 74,599
20% 19.8% 48,938 48,539
10% 10.0% 24,469 24,477
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     244,787
Calibration 2     244,102
Calibration 3     243,755
ssj_ops@calibrated=243,928
100% 100.0% 243,928 243,876
90% 88.7% 219,536 216,343
80% 80.0% 195,143 195,081
70% 69.2% 170,750 168,786
60% 60.0% 146,357 146,409
50% 50.1% 121,964 122,306
40% 39.9% 97,571 97,340
30% 30.0% 73,179 73,298
20% 19.9% 48,786 48,525
10% 10.0% 24,393 24,491
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     244,476
Calibration 2     244,594
Calibration 3     237,585
ssj_ops@calibrated=241,089
100% 99.5% 241,089 239,927
90% 89.7% 216,980 216,287
80% 79.9% 192,871 192,749
70% 70.1% 168,762 169,049
60% 60.3% 144,654 145,365
50% 49.6% 120,545 119,653
40% 39.6% 96,436 95,590
30% 30.0% 72,327 72,379
20% 19.9% 48,218 47,860
10% 10.0% 24,109 24,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,611
Calibration 2     236,249
Calibration 3     240,475
ssj_ops@calibrated=238,362
100% 100.2% 238,362 238,731
90% 89.0% 214,526 212,154
80% 80.0% 190,690 190,760
70% 69.0% 166,854 164,490
60% 60.4% 143,017 144,038
50% 50.5% 119,181 120,441
40% 39.7% 95,345 94,670
30% 29.9% 71,509 71,379
20% 20.1% 47,672 47,894
10% 10.0% 23,836 23,773
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     240,148
Calibration 2     242,802
Calibration 3     243,013
ssj_ops@calibrated=242,907
100% 99.9% 242,907 242,697
90% 89.0% 218,617 216,202
80% 79.9% 194,326 194,190
70% 69.7% 170,035 169,268
60% 59.9% 145,744 145,508
50% 50.2% 121,454 121,851
40% 39.8% 97,163 96,630
30% 30.2% 72,872 73,367
20% 20.3% 48,581 49,213
10% 10.1% 24,291 24,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     247,242
Calibration 2     245,471
Calibration 3     245,437
ssj_ops@calibrated=245,454
100% 99.7% 245,454 244,776
90% 88.8% 220,909 218,078
80% 79.2% 196,363 194,285
70% 70.2% 171,818 172,351
60% 60.0% 147,272 147,374
50% 49.9% 122,727 122,498
40% 40.4% 98,182 99,178
30% 29.9% 73,636 73,451
20% 20.0% 49,091 49,039
10% 10.0% 24,545 24,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     241,009
Calibration 2     240,816
Calibration 3     241,657
ssj_ops@calibrated=241,236
100% 99.8% 241,236 240,702
90% 88.9% 217,113 214,376
80% 79.6% 192,989 191,990
70% 69.8% 168,865 168,451
60% 59.8% 144,742 144,254
50% 50.0% 120,618 120,535
40% 40.3% 96,495 97,272
30% 29.7% 72,371 71,563
20% 20.3% 48,247 49,077
10% 9.9% 24,124 23,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     243,307
Calibration 2     244,436
Calibration 3     244,710
ssj_ops@calibrated=244,573
100% 99.0% 244,573 242,040
90% 89.2% 220,116 218,049
80% 79.2% 195,659 193,823
70% 69.5% 171,201 169,996
60% 59.8% 146,744 146,266
50% 49.7% 122,287 121,432
40% 40.1% 97,829 98,191
30% 29.8% 73,372 72,821
20% 20.2% 48,915 49,448
10% 9.9% 24,457 24,241
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
