Hewlett Packard Enterprise ProLiant DL345 Gen11 SPECpower_ssj2008 = 25,537 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 20, 2022
Hardware Availability: Dec-2022 Software Availability: Dec-2022 Publication: Nov 10, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 338 23.1
Calibration 2 370 23.7
Calibration 3 371 23.1
100% 373 23.1
90% 345 23.5
80% 321 22.9
70% 291 23.1
60% 242 23.7
50% 220 23.7
40% 201 23.8
30% 181 23.9
20% 159 22.9
10% 136 22.9
Active Idle 72.2 23.5

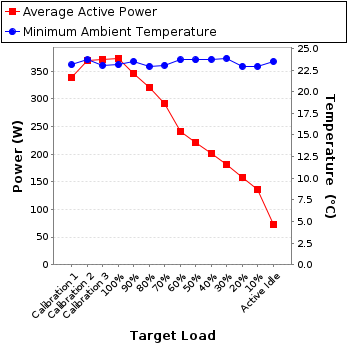

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GT25H-40-1
Date of Calibration: 20-May-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 1.68 2.0 0.966 338 0.4%
Calibration 2 209 300.0 1.82 2.0 0.971 370 0.4%
Calibration 3 209 300.0 1.83 2.0 0.971 371 0.4%
100% 209 300.0 1.84 2.0 0.972 373 0.4%
90% 209 300.0 1.71 2.0 0.968 345 0.4%
80% 209 300.0 1.60 2.0 0.964 321 0.4%
70% 209 300.0 1.45 2.0 0.959 291 0.4%
60% 209 300.0 1.23 2.0 0.944 242 0.5%
50% 209 300.0 1.13 2.0 0.936 220 0.5%
40% 209 300.0 1.04 2.0 0.925 201 0.5%
30% 209 300.0 0.951 2.0 0.911 181 0.6%
20% 209 300.0 0.854 2.0 0.889 159 0.6%
10% 209 300.0 0.761 1.0 0.857 136 0.5%
Active Idle 209 300.0 0.519 1.0 0.667 72.2 0.8%

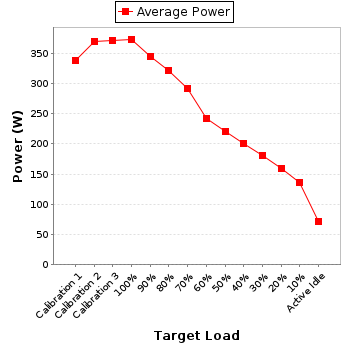

Power details for pwr1
