Nettrix R620 G40 SPECpower_ssj2008 = 10,103 overall ssj_ops/watt
Test Sponsor: Nettrix SPEC License #: 6138 Test Method: Single Node
Tested By: Nettrix Test Location: Beijing,China Test Date: Jun 21, 2022
Hardware Availability: Jun-2022 Software Availability: Jun-2022 Publication: Jul 21, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 491 23.2
Calibration 2 491 23.7
Calibration 3 491 24.5
100% 491 25.1
90% 478 25.8
80% 417 26.2
70% 365 26.4
60% 333 26.6
50% 301 26.9
40% 271 27.1
30% 242 27.2
20% 213 27.3
10% 185 27.4
Active Idle 137 27.6

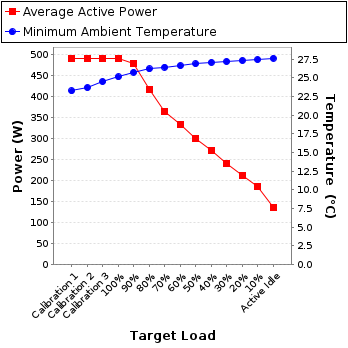

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA
Model: WT310E
Serial Number: C3TF05047E
Connectivity: USB
Input Connection: Default
Metrology Institute: CNAS(China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration Laboratory of CETC
Calibration Label: C3VB14026E
Date of Calibration: 29-Mar-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Attached to SUT Power Supplier Unit 1
Temperature Sensor temp1
Hardware Vendor: iButton Link Technology
Model: iButton Link T-Sense/T-Probe
Driver Version: 2.12.36.4
Connectivity: USB2Serial
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 2.20 5.0 0.994 491 0.3%
Calibration 2 225 300.0 2.20 5.0 0.994 491 0.3%
Calibration 3 225 300.0 2.20 5.0 0.994 491 0.3%
100% 225 300.0 2.20 5.0 0.994 491 0.3%
90% 225 300.0 2.14 5.0 0.995 478 0.3%
80% 226 300.0 1.86 5.0 0.993 417 0.3%
70% 226 300.0 1.63 5.0 0.991 365 0.3%
60% 226 300.0 1.49 5.0 0.990 333 0.4%
50% 227 300.0 1.34 5.0 0.988 301 0.4%
40% 227 300.0 1.21 5.0 0.986 271 0.4%
30% 228 300.0 1.08 5.0 0.983 242 0.4%
20% 227 300.0 0.955 5.0 0.980 213 0.5%
10% 228 300.0 0.833 5.0 0.976 185 0.5%
Active Idle 228 300.0 0.626 5.0 0.959 137 0.7%

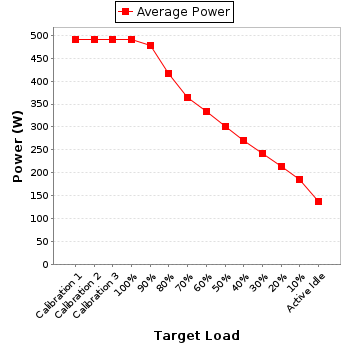

Power details for pwr1
