SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY TX1330 M5 | SPECpower_ssj2008 = 8,643 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Dec 17, 2021 |
| Hardware Availability: | Mar-2022 | Software Availability: | Oct-2020 | Publication: | Jan 19, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

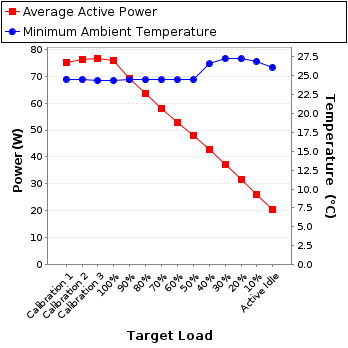

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 74.9 | 24.6 |
| Calibration 2 | 76.3 | 24.5 |
| Calibration 3 | 76.7 | 24.4 |
| 100% | 75.7 | 24.4 |
| 90% | 69.3 | 24.4 |
| 80% | 63.5 | 24.4 |
| 70% | 58.0 | 24.4 |
| 60% | 52.8 | 24.4 |
| 50% | 47.9 | 24.5 |
| 40% | 42.6 | 26.6 |
| 30% | 37.1 | 27.3 |
| 20% | 31.5 | 27.2 |
| 10% | 25.9 | 26.9 |
| Active Idle | 20.6 | 26.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170134584 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400087-2103 |
| Date of Calibration: | 08-Mar-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 0.443 | 1.0 | 0.821 | 74.9 | 0.4% |
| Calibration 2 | 206 | 300.0 | 0.450 | 1.0 | 0.823 | 76.3 | 0.4% |
| Calibration 3 | 206 | 300.0 | 0.452 | 1.0 | 0.824 | 76.7 | 0.4% |
| 100% | 206 | 300.0 | 0.447 | 1.0 | 0.822 | 75.7 | 0.4% |
| 90% | 206 | 300.0 | 0.415 | 1.0 | 0.811 | 69.3 | 0.4% |
| 80% | 206 | 300.0 | 0.386 | 1.0 | 0.798 | 63.5 | 0.4% |
| 70% | 206 | 300.0 | 0.359 | 1.0 | 0.785 | 58.0 | 0.4% |
| 60% | 206 | 300.0 | 0.334 | 1.0 | 0.770 | 52.8 | 0.5% |
| 50% | 206 | 300.0 | 0.309 | 1.0 | 0.752 | 47.9 | 0.5% |
| 40% | 206 | 300.0 | 0.283 | 1.0 | 0.729 | 42.6 | 0.5% |
| 30% | 206 | 300.0 | 0.257 | 1.0 | 0.700 | 37.1 | 0.6% |
| 20% | 206 | 300.0 | 0.231 | 1.0 | 0.663 | 31.5 | 0.7% |
| 10% | 205 | 300.0 | 0.205 | 0.5 | 0.616 | 25.9 | 0.5% |
| Active Idle | 205 | 300.0 | 0.181 | 0.5 | 0.554 | 20.6 | 0.6% |
