SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2021 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY RX2540 M6 | SPECpower_ssj2008 = 11,652 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | May 18, 2021 |
| Hardware Availability: | May-2021 | Software Availability: | Dec-2020 | Publication: | Jun 9, 2021 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

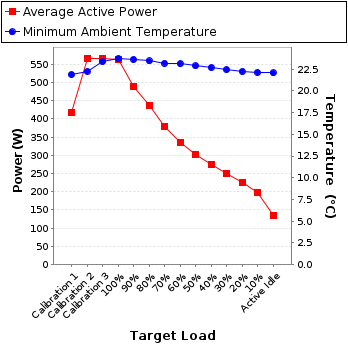

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 418 | 21.9 |
| Calibration 2 | 566 | 22.2 |
| Calibration 3 | 566 | 23.4 |
| 100% | 564 | 23.8 |
| 90% | 489 | 23.6 |
| 80% | 437 | 23.4 |
| 70% | 378 | 23.2 |
| 60% | 335 | 23.1 |
| 50% | 302 | 22.9 |
| 40% | 274 | 22.7 |
| 30% | 249 | 22.4 |
| 20% | 224 | 22.2 |
| 10% | 198 | 22.1 |
| Active Idle | 135 | 22.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | Hioki3336 |
| Serial Number: | 170121768 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400085-2006 |
| Date of Calibration: | 25-Jun-2020 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 205 | 300.0 | 2.22 | 5.0 | 0.937 | 418 | 0.3% |
| Calibration 2 | 205 | 300.0 | 2.88 | 5.0 | 0.960 | 566 | 0.3% |
| Calibration 3 | 204 | 300.0 | 2.89 | 5.0 | 0.960 | 566 | 0.3% |
| 100% | 204 | 300.0 | 2.85 | 5.0 | 0.969 | 564 | 0.3% |
| 90% | 205 | 300.0 | 2.49 | 5.0 | 0.960 | 489 | 0.3% |
| 80% | 205 | 300.0 | 2.25 | 5.0 | 0.950 | 437 | 0.3% |
| 70% | 205 | 300.0 | 1.97 | 5.0 | 0.938 | 378 | 0.3% |
| 60% | 205 | 300.0 | 1.77 | 2.0 | 0.925 | 335 | 0.2% |
| 50% | 205 | 300.0 | 1.61 | 2.0 | 0.913 | 302 | 0.2% |
| 40% | 205 | 300.0 | 1.48 | 2.0 | 0.901 | 274 | 0.3% |
| 30% | 205 | 300.0 | 1.36 | 2.0 | 0.889 | 249 | 0.3% |
| 20% | 205 | 300.0 | 1.25 | 2.0 | 0.876 | 224 | 0.3% |
| 10% | 205 | 300.0 | 1.12 | 2.0 | 0.862 | 198 | 0.3% |
| Active Idle | 205 | 300.0 | 0.797 | 2.0 | 0.825 | 135 | 0.4% |
