SPECpower_ssj2008

Dell Inc. PowerEdge R6515 (AMD EPYC 7702P, 2.00 GHz)			SPECpower_ssj2008 = 18,463 overall ssj_ops/watt
Test Sponsor:	Dell Inc.	SPEC License #:	55	Test Method:	Single Node
Tested By:	Dell Inc.	Test Location:	Round Rock, TX, USA	Test Date:	Jul 22, 2020
Hardware Availability:	Jul-2020	Software Availability:	Feb-2020	Publication:	Aug 12, 2020
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Dell Inc.
Model:	PowerEdge R6515 (AMD EPYC 7702P, 2.00 GHz)
Form Factor:	1U
CPU Name:	AMD EPYC 7702P 2.00 GHz
CPU Characteristics:	64 core, 2.00 GHz, 256 MB L3 Cache, MaxBoost clock up to 3.35 GHz
CPU Frequency (MHz):	2000
CPU(s) Enabled:	64 cores, 1 chip, 64 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache:	None
Memory Amount (GB):	64
# and size of DIMM:	8 x 8 GB
Memory Details:	8GB 1Rx8 PC4-3200AA-R running at 2666. Slots A1-8 populated. (DPN 6VDNY)
Power Supply Quantity and Rating (W):	1 x 550
Power Supply Details:	550W Platinum Efficiency (DPN 6V43G)
Disk Drive:	1 x 240 GB M.2 SATA SSD
Disk Controller:	PCIe attached Boot Optimized Storage (BOSS) card (DPN 5T20H)
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Broadcom 5720
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	High Performance power plan in OS (see SUT notes)
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
OS Version:	10.0.17763 Build 17763
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot 64-Bit Server VM (build 13.0.2+8, mixed mode, sharing), version 13.0.2
JVM Command-line Options:	-server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelOldGC -XX:+UseLargePages
JVM Affinity:	start /NODE[0-15] /AFFINITY [0xF, 0xF0]
JVM Instances:	32
JVM Initial Heap (MB):	1400
JVM Maximum Heap (MB):	1400
JVM Address Bits:	64
Boot Firmware Version:	1.4.8
Management Firmware Version:	4.10.10.10 A00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4532691

none

Each JVM instance was bound to 4 logical processors
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version
Power Plan Minimum processor state set to 0%
Power Plan Maximum processor state set to 100%
Using Windows PowerShell, set the following powercfg properties:

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise Edition Service Pack 1
JVM Vendor:	Oracle Corporation
JVM Version:	Hotspot(TM) Client VM, version 1.8.0_121
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91KA21977
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TesCom
Calibration Label:	T76421
Date of Calibration:	19-Jun-2020
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.1-a2d19f26-20190717
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.10.26.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

None

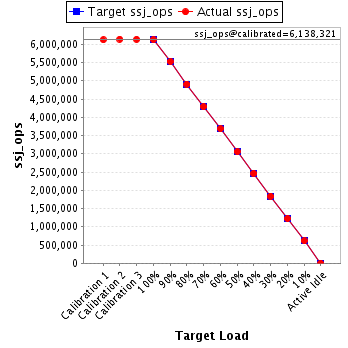

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	231	20.3
90%	218	20.3
80%	207	20.3
70%	194	20.3
60%	181	20.3
50%	169	20.3
40%	161	20.3
30%	150	20.3
20%	139	20.4
10%	123	20.3
Active Idle	54.5	20.3

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	20.3	255

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
