Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 10,954,379
ssj_ops@100% per JVM = 171,162
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 6, 2020
Hardware Availability: Jun-2020 Software Availability: Mar-2020 Publication: Apr 22, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,016,975
Calibration 2     11,003,444
Calibration 3     11,007,156
ssj_ops@calibrated=11,005,300
100% 99.5% 11,005,300 10,954,379
90% 90.0% 9,904,770 9,909,854
80% 80.0% 8,804,240 8,807,674
70% 69.9% 7,703,710 7,697,168
60% 60.0% 6,603,180 6,603,229
50% 50.1% 5,502,650 5,509,866
40% 40.0% 4,402,120 4,399,578
30% 30.0% 3,301,590 3,303,778
20% 20.0% 2,201,060 2,198,722
10% 10.0% 1,100,530 1,101,418
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7742 2.25 GHz
CPU Characteristics: 64-Core, 2.25 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1132)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 13.0.2+8, mixed mode, sharing); version 13.0.2
JVM Command-line Options: -server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelOldGC -XX:+UseLargePages
JVM Affinity: start /NODE [0-31] /AFFINITY [0xF, 0xF0]
JVM Instances: 64
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: A46 v1.20 (02/28/2020)
Management Firmware Version: 2.14 Feb 11 2020
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: 1.KB4539571, 2.KB4554354 (patched: 24. March, 2020)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE-03.001 170,997
NODE-03.002 168,134
NODE-03.003 165,033
NODE-03.004 163,853
NODE-03.005 171,041
NODE-03.006 171,634
NODE-03.007 170,796
NODE-03.008 173,341
NODE-03.009 173,429
NODE-03.010 170,756
NODE-03.011 174,148
NODE-03.012 176,235
NODE-03.013 174,624
NODE-03.014 169,823
NODE-03.015 170,969
NODE-03.016 172,112
NODE-03.017 173,966
NODE-03.018 174,545
NODE-03.019 171,697
NODE-03.020 169,269
NODE-03.021 173,653
NODE-03.022 169,123
NODE-03.023 173,010
NODE-03.024 167,365
NODE-03.025 169,312
NODE-03.026 172,720
NODE-03.027 173,795
NODE-03.028 172,205
NODE-03.029 172,095
NODE-03.030 175,147
NODE-03.031 170,133
NODE-03.032 170,994
NODE-03.033 174,645
NODE-03.034 167,508
NODE-03.035 171,525
NODE-03.036 168,295
NODE-03.037 168,057
NODE-03.038 170,723
NODE-03.039 171,760
NODE-03.040 173,775
NODE-03.041 168,156
NODE-03.042 174,279
NODE-03.043 169,192
NODE-03.044 172,742
NODE-03.045 173,608
NODE-03.046 169,432
NODE-03.047 173,847
NODE-03.048 172,570
NODE-03.049 171,690
NODE-03.050 170,041
NODE-03.051 169,190
NODE-03.052 169,804
NODE-03.053 170,971
NODE-03.054 168,930
NODE-03.055 170,986
NODE-03.056 170,002
NODE-03.057 170,818
NODE-03.058 171,017
NODE-03.059 170,247
NODE-03.060 172,319
NODE-03.061 170,628
NODE-03.062 168,168
NODE-03.063 173,439
NODE-03.064 170,064
ssj_ops@100% 10,954,379
ssj_ops@100% per JVM 171,162
Graph of per-instance results
JVM 'NODE-03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,556
Calibration 2     171,177
Calibration 3     170,875
ssj_ops@calibrated=171,026
100% 100.0% 171,026 170,997
90% 90.0% 153,923 153,839
80% 80.7% 136,821 137,963
70% 69.8% 119,718 119,451
60% 59.4% 102,616 101,615
50% 49.9% 85,513 85,307
40% 40.3% 68,410 68,862
30% 30.1% 51,308 51,483
20% 20.0% 34,205 34,273
10% 9.7% 17,103 16,644
Active Idle   0 0
Graph of results

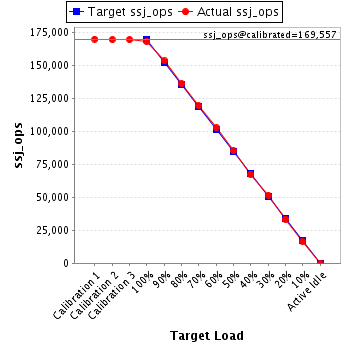

JVM 'NODE-03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,994
Calibration 2     169,534
Calibration 3     169,580
ssj_ops@calibrated=169,557
100% 99.2% 169,557 168,134
90% 90.5% 152,601 153,462
80% 80.3% 135,646 136,197
70% 70.5% 118,690 119,511
60% 60.6% 101,734 102,717
50% 50.3% 84,779 85,282
40% 39.9% 67,823 67,692
30% 30.3% 50,867 51,391
20% 19.8% 33,911 33,549
10% 9.7% 16,956 16,511
Active Idle   0 0
Graph of results
JVM 'NODE-03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,102
Calibration 2     164,452
Calibration 3     165,153
ssj_ops@calibrated=164,803
100% 100.1% 164,803 165,033
90% 90.4% 148,322 148,904
80% 80.2% 131,842 132,181
70% 70.7% 115,362 116,485
60% 60.6% 98,882 99,925
50% 50.3% 82,401 82,895
40% 39.5% 65,921 65,047
30% 29.7% 49,441 49,024
20% 20.0% 32,961 32,980
10% 9.8% 16,480 16,191
Active Idle   0 0
Graph of results
JVM 'NODE-03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,888
Calibration 2     166,119
Calibration 3     165,267
ssj_ops@calibrated=165,693
100% 98.9% 165,693 163,853
90% 89.3% 149,124 147,917
80% 80.3% 132,554 133,035
70% 69.6% 115,985 115,294
60% 60.3% 99,416 99,931
50% 50.3% 82,847 83,417
40% 39.8% 66,277 65,884
30% 30.0% 49,708 49,662
20% 20.2% 33,139 33,438
10% 9.7% 16,569 16,143
Active Idle   0 0
Graph of results
JVM 'NODE-03.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,884
Calibration 2     171,650
Calibration 3     171,884
ssj_ops@calibrated=171,767
100% 99.6% 171,767 171,041
90% 90.0% 154,591 154,548
80% 79.9% 137,414 137,187
70% 69.9% 120,237 120,137
60% 59.5% 103,060 102,206
50% 49.9% 85,884 85,711
40% 40.1% 68,707 68,799
30% 30.3% 51,530 51,980
20% 20.0% 34,353 34,277
10% 10.1% 17,177 17,316
Active Idle   0 0
Graph of results
JVM 'NODE-03.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,709
Calibration 2     173,061
Calibration 3     172,970
ssj_ops@calibrated=173,015
100% 99.2% 173,015 171,634
90% 90.5% 155,714 156,601
80% 79.3% 138,412 137,242
70% 69.7% 121,111 120,556
60% 59.9% 103,809 103,559
50% 50.7% 86,508 87,679
40% 39.9% 69,206 69,035
30% 30.5% 51,905 52,749
20% 19.9% 34,603 34,447
10% 10.1% 17,302 17,441
Active Idle   0 0
Graph of results
JVM 'NODE-03.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,205
Calibration 2     170,480
Calibration 3     170,950
ssj_ops@calibrated=170,715
100% 100.0% 170,715 170,796
90% 89.9% 153,643 153,508
80% 79.6% 136,572 135,814
70% 70.7% 119,500 120,647
60% 59.8% 102,429 102,106
50% 49.8% 85,357 85,009
40% 40.4% 68,286 68,989
30% 30.0% 51,214 51,208
20% 20.1% 34,143 34,373
10% 10.3% 17,071 17,590
Active Idle   0 0
Graph of results
JVM 'NODE-03.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,190
Calibration 2     174,292
Calibration 3     174,117
ssj_ops@calibrated=174,205
100% 99.5% 174,205 173,341
90% 90.0% 156,784 156,828
80% 80.1% 139,364 139,593
70% 70.0% 121,943 121,973
60% 59.7% 104,523 104,075
50% 50.6% 87,102 88,110
40% 40.3% 69,682 70,254
30% 30.1% 52,261 52,471
20% 20.3% 34,841 35,398
10% 10.2% 17,420 17,786
Active Idle   0 0
Graph of results
JVM 'NODE-03.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,637
Calibration 2     173,891
Calibration 3     174,214
ssj_ops@calibrated=174,052
100% 99.6% 174,052 173,429
90% 89.6% 156,647 155,923
80% 80.2% 139,242 139,541
70% 71.0% 121,837 123,641
60% 59.8% 104,431 104,134
50% 50.7% 87,026 88,266
40% 39.8% 69,621 69,228
30% 30.1% 52,216 52,331
20% 19.8% 34,810 34,515
10% 10.1% 17,405 17,649
Active Idle   0 0
Graph of results
JVM 'NODE-03.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,023
Calibration 2     171,083
Calibration 3     171,082
ssj_ops@calibrated=171,082
100% 99.8% 171,082 170,756
90% 90.2% 153,974 154,296
80% 79.8% 136,866 136,449
70% 70.1% 119,758 119,935
60% 60.2% 102,649 102,992
50% 50.0% 85,541 85,552
40% 40.2% 68,433 68,738
30% 29.5% 51,325 50,510
20% 19.9% 34,216 34,031
10% 9.9% 17,108 16,991
Active Idle   0 0
Graph of results
JVM 'NODE-03.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,399
Calibration 2     175,008
Calibration 3     174,878
ssj_ops@calibrated=174,943
100% 99.5% 174,943 174,148
90% 90.0% 157,449 157,509
80% 80.0% 139,954 139,897
70% 70.4% 122,460 123,213
60% 59.3% 104,966 103,751
50% 50.0% 87,472 87,481
40% 39.8% 69,977 69,614
30% 30.5% 52,483 53,320
20% 19.8% 34,989 34,593
10% 9.9% 17,494 17,366
Active Idle   0 0
Graph of results
JVM 'NODE-03.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,970
Calibration 2     176,624
Calibration 3     176,706
ssj_ops@calibrated=176,665
100% 99.8% 176,665 176,235
90% 90.0% 158,998 158,985
80% 80.5% 141,332 142,257
70% 70.0% 123,665 123,690
60% 60.3% 105,999 106,534
50% 50.1% 88,332 88,584
40% 39.2% 70,666 69,318
30% 30.1% 52,999 53,213
20% 19.6% 35,333 34,609
10% 10.0% 17,666 17,710
Active Idle   0 0
Graph of results
JVM 'NODE-03.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,749
Calibration 2     175,089
Calibration 3     175,431
ssj_ops@calibrated=175,260
100% 99.6% 175,260 174,624
90% 90.1% 157,734 157,947
80% 80.4% 140,208 140,853
70% 69.9% 122,682 122,494
60% 60.0% 105,156 105,203
50% 50.3% 87,630 88,155
40% 39.8% 70,104 69,746
30% 29.9% 52,578 52,419
20% 20.2% 35,052 35,326
10% 10.0% 17,526 17,511
Active Idle   0 0
Graph of results
JVM 'NODE-03.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,787
Calibration 2     170,401
Calibration 3     170,381
ssj_ops@calibrated=170,391
100% 99.7% 170,391 169,823
90% 90.1% 153,352 153,484
80% 79.9% 136,313 136,096
70% 69.7% 119,274 118,733
60% 59.8% 102,235 101,867
50% 50.1% 85,196 85,284
40% 40.3% 68,156 68,735
30% 29.9% 51,117 50,898
20% 19.6% 34,078 33,414
10% 9.8% 17,039 16,756
Active Idle   0 0
Graph of results
JVM 'NODE-03.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,510
Calibration 2     172,439
Calibration 3     172,514
ssj_ops@calibrated=172,477
100% 99.1% 172,477 170,969
90% 89.8% 155,229 154,882
80% 79.7% 137,981 137,528
70% 69.4% 120,734 119,782
60% 59.6% 103,486 102,792
50% 49.8% 86,238 85,821
40% 40.0% 68,991 68,987
30% 30.3% 51,743 52,229
20% 20.2% 34,495 34,826
10% 9.9% 17,248 17,027
Active Idle   0 0
Graph of results
JVM 'NODE-03.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,950
Calibration 2     172,820
Calibration 3     173,066
ssj_ops@calibrated=172,943
100% 99.5% 172,943 172,112
90% 89.5% 155,649 154,793
80% 80.6% 138,355 139,418
70% 69.8% 121,060 120,799
60% 60.3% 103,766 104,324
50% 50.2% 86,472 86,776
40% 40.4% 69,177 69,800
30% 30.5% 51,883 52,751
20% 20.6% 34,589 35,636
10% 10.1% 17,294 17,435
Active Idle   0 0
Graph of results
JVM 'NODE-03.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,370
Calibration 2     175,380
Calibration 3     175,595
ssj_ops@calibrated=175,488
100% 99.1% 175,488 173,966
90% 90.0% 157,939 157,946
80% 80.4% 140,390 141,172
70% 69.6% 122,841 122,104
60% 59.6% 105,293 104,615
50% 50.1% 87,744 87,848
40% 40.0% 70,195 70,200
30% 30.0% 52,646 52,622
20% 19.7% 35,098 34,578
10% 9.8% 17,549 17,233
Active Idle   0 0
Graph of results
JVM 'NODE-03.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,837
Calibration 2     175,846
Calibration 3     175,183
ssj_ops@calibrated=175,515
100% 99.4% 175,515 174,545
90% 90.1% 157,963 158,225
80% 79.9% 140,412 140,209
70% 69.9% 122,860 122,621
60% 59.9% 105,309 105,065
50% 50.1% 87,757 87,984
40% 40.0% 70,206 70,157
30% 30.1% 52,654 52,863
20% 20.1% 35,103 35,219
10% 10.0% 17,551 17,541
Active Idle   0 0
Graph of results
JVM 'NODE-03.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,851
Calibration 2     172,411
Calibration 3     172,126
ssj_ops@calibrated=172,269
100% 99.7% 172,269 171,697
90% 90.2% 155,042 155,308
80% 79.6% 137,815 137,136
70% 69.6% 120,588 119,972
60% 60.3% 103,361 103,861
50% 50.0% 86,134 86,170
40% 39.8% 68,908 68,585
30% 30.2% 51,681 52,007
20% 19.9% 34,454 34,345
10% 10.3% 17,227 17,749
Active Idle   0 0
Graph of results
JVM 'NODE-03.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,620
Calibration 2     170,307
Calibration 3     170,535
ssj_ops@calibrated=170,421
100% 99.3% 170,421 169,269
90% 91.0% 153,379 155,069
80% 79.6% 136,337 135,671
70% 69.7% 119,295 118,846
60% 60.4% 102,253 102,879
50% 50.0% 85,210 85,132
40% 39.9% 68,168 67,951
30% 29.9% 51,126 51,006
20% 19.8% 34,084 33,732
10% 10.0% 17,042 17,057
Active Idle   0 0
Graph of results
JVM 'NODE-03.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,688
Calibration 2     175,019
Calibration 3     174,400
ssj_ops@calibrated=174,709
100% 99.4% 174,709 173,653
90% 89.6% 157,238 156,603
80% 79.5% 139,768 138,901
70% 70.3% 122,297 122,841
60% 59.7% 104,826 104,245
50% 50.0% 87,355 87,320
40% 39.9% 69,884 69,674
30% 29.9% 52,413 52,160
20% 19.8% 34,942 34,569
10% 9.8% 17,471 17,137
Active Idle   0 0
Graph of results
JVM 'NODE-03.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,175
Calibration 2     170,177
Calibration 3     170,248
ssj_ops@calibrated=170,212
100% 99.4% 170,212 169,123
90% 90.8% 153,191 154,622
80% 80.6% 136,170 137,125
70% 69.0% 119,149 117,490
60% 59.9% 102,127 101,954
50% 50.3% 85,106 85,620
40% 40.3% 68,085 68,545
30% 30.9% 51,064 52,559
20% 19.6% 34,042 33,391
10% 10.0% 17,021 17,019
Active Idle   0 0
Graph of results
JVM 'NODE-03.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,683
Calibration 2     173,973
Calibration 3     173,841
ssj_ops@calibrated=173,907
100% 99.5% 173,907 173,010
90% 90.7% 156,516 157,812
80% 79.9% 139,125 138,946
70% 69.8% 121,735 121,306
60% 60.4% 104,344 105,062
50% 49.8% 86,953 86,565
40% 40.0% 69,563 69,629
30% 30.1% 52,172 52,272
20% 19.7% 34,781 34,189
10% 9.9% 17,391 17,161
Active Idle   0 0
Graph of results
JVM 'NODE-03.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,234
Calibration 2     168,522
Calibration 3     169,100
ssj_ops@calibrated=168,811
100% 99.1% 168,811 167,365
90% 90.0% 151,930 151,876
80% 80.1% 135,049 135,147
70% 69.5% 118,168 117,341
60% 59.9% 101,287 101,064
50% 50.3% 84,405 84,911
40% 39.8% 67,524 67,236
30% 30.1% 50,643 50,892
20% 19.8% 33,762 33,437
10% 10.0% 16,881 16,907
Active Idle   0 0
Graph of results
JVM 'NODE-03.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,259
Calibration 2     169,441
Calibration 3     169,747
ssj_ops@calibrated=169,594
100% 99.8% 169,594 169,312
90% 90.0% 152,634 152,575
80% 80.0% 135,675 135,619
70% 69.5% 118,716 117,818
60% 60.5% 101,756 102,610
50% 50.1% 84,797 85,042
40% 39.9% 67,837 67,705
30% 30.5% 50,878 51,721
20% 20.3% 33,919 34,433
10% 10.2% 16,959 17,241
Active Idle   0 0
Graph of results
JVM 'NODE-03.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,569
Calibration 2     173,326
Calibration 3     173,659
ssj_ops@calibrated=173,493
100% 99.6% 173,493 172,720
90% 89.9% 156,144 156,029
80% 79.9% 138,794 138,577
70% 69.9% 121,445 121,330
60% 60.1% 104,096 104,210
50% 50.1% 86,746 86,915
40% 40.1% 69,397 69,494
30% 30.1% 52,048 52,163
20% 20.1% 34,699 34,898
10% 10.0% 17,349 17,270
Active Idle   0 0
Graph of results
JVM 'NODE-03.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,818
Calibration 2     175,336
Calibration 3     175,323
ssj_ops@calibrated=175,329
100% 99.1% 175,329 173,795
90% 89.7% 157,797 157,185
80% 80.0% 140,264 140,336
70% 69.7% 122,731 122,223
60% 59.8% 105,198 104,769
50% 50.3% 87,665 88,167
40% 39.8% 70,132 69,741
30% 30.4% 52,599 53,221
20% 19.8% 35,066 34,693
10% 9.8% 17,533 17,270
Active Idle   0 0
Graph of results
JVM 'NODE-03.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,087
Calibration 2     173,257
Calibration 3     173,120
ssj_ops@calibrated=173,189
100% 99.4% 173,189 172,205
90% 89.4% 155,870 154,783
80% 79.8% 138,551 138,271
70% 69.8% 121,232 120,851
60% 59.7% 103,913 103,416
50% 50.2% 86,594 86,929
40% 39.9% 69,276 69,047
30% 29.9% 51,957 51,755
20% 19.8% 34,638 34,300
10% 10.1% 17,319 17,486
Active Idle   0 0
Graph of results
JVM 'NODE-03.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,350
Calibration 2     172,659
Calibration 3     172,819
ssj_ops@calibrated=172,739
100% 99.6% 172,739 172,095
90% 90.3% 155,465 155,938
80% 79.4% 138,191 137,103
70% 69.3% 120,917 119,771
60% 60.2% 103,643 103,913
50% 50.5% 86,370 87,191
40% 39.7% 69,096 68,527
30% 30.1% 51,822 51,942
20% 20.0% 34,548 34,509
10% 9.9% 17,274 17,037
Active Idle   0 0
Graph of results
JVM 'NODE-03.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,179
Calibration 2     176,442
Calibration 3     176,609
ssj_ops@calibrated=176,525
100% 99.2% 176,525 175,147
90% 89.7% 158,873 158,332
80% 80.8% 141,220 142,714
70% 69.8% 123,568 123,205
60% 60.3% 105,915 106,382
50% 50.1% 88,263 88,519
40% 40.1% 70,610 70,826
30% 30.2% 52,958 53,251
20% 19.9% 35,305 35,069
10% 10.0% 17,653 17,716
Active Idle   0 0
Graph of results
JVM 'NODE-03.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,810
Calibration 2     171,785
Calibration 3     171,565
ssj_ops@calibrated=171,675
100% 99.1% 171,675 170,133
90% 90.5% 154,507 155,360
80% 80.7% 137,340 138,533
70% 69.8% 120,172 119,860
60% 60.0% 103,005 102,937
50% 49.5% 85,837 84,990
40% 40.2% 68,670 68,990
30% 29.5% 51,502 50,700
20% 19.8% 34,335 33,942
10% 10.1% 17,167 17,336
Active Idle   0 0
Graph of results
JVM 'NODE-03.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,519
Calibration 2     171,366
Calibration 3     171,099
ssj_ops@calibrated=171,232
100% 99.9% 171,232 170,994
90% 89.1% 154,109 152,517
80% 80.4% 136,986 137,737
70% 69.6% 119,863 119,177
60% 59.9% 102,739 102,505
50% 50.0% 85,616 85,664
40% 39.9% 68,493 68,379
30% 30.2% 51,370 51,642
20% 20.2% 34,246 34,615
10% 9.9% 17,123 17,029
Active Idle   0 0
Graph of results

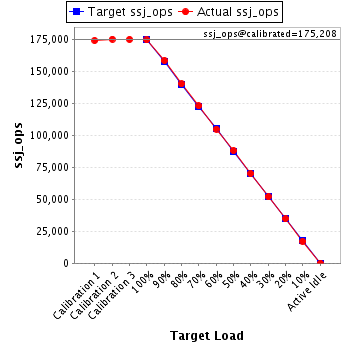

JVM 'NODE-03.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,248
Calibration 2     175,273
Calibration 3     175,143
ssj_ops@calibrated=175,208
100% 99.7% 175,208 174,645
90% 90.5% 157,687 158,601
80% 80.0% 140,166 140,236
70% 70.2% 122,646 123,040
60% 59.9% 105,125 105,008
50% 50.3% 87,604 88,077
40% 40.0% 70,083 70,078
30% 29.7% 52,562 52,030
20% 19.8% 35,042 34,730
10% 9.8% 17,521 17,232
Active Idle   0 0
Graph of results
JVM 'NODE-03.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,559
Calibration 2     168,229
Calibration 3     168,007
ssj_ops@calibrated=168,118
100% 99.6% 168,118 167,508
90% 90.0% 151,306 151,240
80% 80.6% 134,494 135,477
70% 69.7% 117,683 117,259
60% 60.2% 100,871 101,210
50% 50.1% 84,059 84,285
40% 39.8% 67,247 66,842
30% 29.5% 50,435 49,646
20% 19.9% 33,624 33,420
10% 10.0% 16,812 16,806
Active Idle   0 0
Graph of results
JVM 'NODE-03.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,820
Calibration 2     172,318
Calibration 3     172,364
ssj_ops@calibrated=172,341
100% 99.5% 172,341 171,525
90% 90.5% 155,107 156,007
80% 79.4% 137,873 136,885
70% 69.5% 120,639 119,835
60% 60.3% 103,405 103,925
50% 49.7% 86,170 85,675
40% 39.6% 68,936 68,194
30% 29.6% 51,702 51,054
20% 20.1% 34,468 34,689
10% 10.3% 17,234 17,783
Active Idle   0 0
Graph of results
JVM 'NODE-03.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,171
Calibration 2     168,869
Calibration 3     168,781
ssj_ops@calibrated=168,825
100% 99.7% 168,825 168,295
90% 90.5% 151,942 152,814
80% 79.2% 135,060 133,740
70% 70.1% 118,177 118,294
60% 60.4% 101,295 101,979
50% 50.6% 84,412 85,417
40% 40.6% 67,530 68,604
30% 29.6% 50,647 49,902
20% 20.3% 33,765 34,268
10% 10.2% 16,882 17,220
Active Idle   0 0
Graph of results
JVM 'NODE-03.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,546
Calibration 2     168,510
Calibration 3     168,714
ssj_ops@calibrated=168,612
100% 99.7% 168,612 168,057
90% 89.8% 151,751 151,368
80% 79.8% 134,890 134,578
70% 70.3% 118,029 118,543
60% 59.8% 101,167 100,783
50% 50.5% 84,306 85,145
40% 39.8% 67,445 67,149
30% 30.0% 50,584 50,568
20% 20.1% 33,722 33,900
10% 10.2% 16,861 17,137
Active Idle   0 0
Graph of results
JVM 'NODE-03.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,986
Calibration 2     171,591
Calibration 3     171,545
ssj_ops@calibrated=171,568
100% 99.5% 171,568 170,723
90% 89.9% 154,411 154,212
80% 80.5% 137,254 138,147
70% 70.1% 120,098 120,329
60% 59.5% 102,941 102,098
50% 50.2% 85,784 86,164
40% 40.3% 68,627 69,095
30% 30.2% 51,470 51,851
20% 20.1% 34,314 34,473
10% 10.2% 17,157 17,450
Active Idle   0 0
Graph of results
JVM 'NODE-03.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,858
Calibration 2     172,931
Calibration 3     173,238
ssj_ops@calibrated=173,084
100% 99.2% 173,084 171,760
90% 90.5% 155,776 156,575
80% 80.2% 138,468 138,822
70% 69.6% 121,159 120,548
60% 59.7% 103,851 103,380
50% 49.8% 86,542 86,229
40% 40.1% 69,234 69,322
30% 29.4% 51,925 50,906
20% 20.4% 34,617 35,294
10% 10.3% 17,308 17,770
Active Idle   0 0
Graph of results
JVM 'NODE-03.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,684
Calibration 2     173,807
Calibration 3     174,160
ssj_ops@calibrated=173,983
100% 99.9% 173,983 173,775
90% 90.4% 156,585 157,285
80% 80.0% 139,187 139,228
70% 70.3% 121,788 122,394
60% 59.8% 104,390 104,022
50% 50.4% 86,992 87,751
40% 39.5% 69,593 68,680
30% 30.0% 52,195 52,213
20% 20.1% 34,797 34,897
10% 9.9% 17,398 17,173
Active Idle   0 0
Graph of results
JVM 'NODE-03.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,970
Calibration 2     168,697
Calibration 3     168,848
ssj_ops@calibrated=168,773
100% 99.6% 168,773 168,156
90% 90.8% 151,895 153,236
80% 80.3% 135,018 135,599
70% 69.5% 118,141 117,357
60% 59.7% 101,264 100,768
50% 50.6% 84,386 85,399
40% 40.1% 67,509 67,732
30% 29.8% 50,632 50,240
20% 20.2% 33,755 34,140
10% 10.0% 16,877 16,844
Active Idle   0 0
Graph of results
JVM 'NODE-03.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,703
Calibration 2     174,269
Calibration 3     174,704
ssj_ops@calibrated=174,487
100% 99.9% 174,487 174,279
90% 90.2% 157,038 157,366
80% 79.9% 139,589 139,357
70% 70.4% 122,141 122,771
60% 60.0% 104,692 104,659
50% 49.6% 87,243 86,614
40% 39.8% 69,795 69,494
30% 30.0% 52,346 52,265
20% 20.0% 34,897 34,818
10% 10.2% 17,449 17,845
Active Idle   0 0
Graph of results
JVM 'NODE-03.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,241
Calibration 2     169,757
Calibration 3     169,651
ssj_ops@calibrated=169,704
100% 99.7% 169,704 169,192
90% 89.8% 152,734 152,404
80% 79.0% 135,763 134,009
70% 70.2% 118,793 119,068
60% 60.2% 101,822 102,225
50% 50.3% 84,852 85,367
40% 39.7% 67,882 67,312
30% 30.2% 50,911 51,307
20% 20.2% 33,941 34,341
10% 9.6% 16,970 16,220
Active Idle   0 0
Graph of results
JVM 'NODE-03.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,681
Calibration 2     172,970
Calibration 3     173,493
ssj_ops@calibrated=173,232
100% 99.7% 173,232 172,742
90% 90.5% 155,908 156,851
80% 78.9% 138,585 136,654
70% 69.2% 121,262 119,886
60% 59.4% 103,939 102,832
50% 49.6% 86,616 85,919
40% 40.3% 69,293 69,857
30% 29.7% 51,969 51,534
20% 19.8% 34,646 34,244
10% 10.0% 17,323 17,357
Active Idle   0 0
Graph of results
JVM 'NODE-03.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,511
Calibration 2     174,215
Calibration 3     174,112
ssj_ops@calibrated=174,164
100% 99.7% 174,164 173,608
90% 90.7% 156,748 157,937
80% 79.3% 139,331 138,177
70% 69.7% 121,915 121,360
60% 60.3% 104,498 105,066
50% 49.6% 87,082 86,345
40% 39.8% 69,666 69,258
30% 30.4% 52,249 52,869
20% 20.0% 34,833 34,852
10% 10.1% 17,416 17,641
Active Idle   0 0
Graph of results
JVM 'NODE-03.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,323
Calibration 2     170,598
Calibration 3     170,887
ssj_ops@calibrated=170,742
100% 99.2% 170,742 169,432
90% 89.1% 153,668 152,059
80% 80.3% 136,594 137,035
70% 70.7% 119,520 120,759
60% 59.7% 102,445 101,974
50% 50.2% 85,371 85,687
40% 39.4% 68,297 67,345
30% 29.8% 51,223 50,906
20% 19.8% 34,148 33,880
10% 10.0% 17,074 17,149
Active Idle   0 0
Graph of results
JVM 'NODE-03.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,979
Calibration 2     173,756
Calibration 3     174,394
ssj_ops@calibrated=174,075
100% 99.9% 174,075 173,847
90% 89.9% 156,668 156,427
80% 80.2% 139,260 139,679
70% 70.2% 121,853 122,138
60% 60.9% 104,445 106,006
50% 50.5% 87,038 87,869
40% 40.2% 69,630 69,899
30% 30.0% 52,223 52,175
20% 20.1% 34,815 35,059
10% 10.0% 17,408 17,329
Active Idle   0 0
Graph of results
JVM 'NODE-03.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,815
Calibration 2     173,387
Calibration 3     173,311
ssj_ops@calibrated=173,349
100% 99.6% 173,349 172,570
90% 89.8% 156,014 155,714
80% 80.1% 138,679 138,875
70% 69.6% 121,344 120,721
60% 60.7% 104,009 105,147
50% 50.1% 86,675 86,814
40% 39.7% 69,340 68,858
30% 29.7% 52,005 51,564
20% 19.9% 34,670 34,495
10% 10.1% 17,335 17,424
Active Idle   0 0
Graph of results
JVM 'NODE-03.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,813
Calibration 2     172,422
Calibration 3     172,538
ssj_ops@calibrated=172,480
100% 99.5% 172,480 171,690
90% 88.8% 155,232 153,207
80% 80.0% 137,984 138,023
70% 69.7% 120,736 120,201
60% 60.3% 103,488 103,939
50% 49.4% 86,240 85,153
40% 39.8% 68,992 68,677
30% 29.8% 51,744 51,404
20% 19.9% 34,496 34,325
10% 10.0% 17,248 17,253
Active Idle   0 0
Graph of results
JVM 'NODE-03.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,652
Calibration 2     171,073
Calibration 3     170,908
ssj_ops@calibrated=170,990
100% 99.4% 170,990 170,041
90% 89.5% 153,891 153,102
80% 79.5% 136,792 136,002
70% 69.6% 119,693 119,089
60% 59.9% 102,594 102,426
50% 50.0% 85,495 85,522
40% 40.5% 68,396 69,324
30% 30.1% 51,297 51,532
20% 20.0% 34,198 34,135
10% 10.1% 17,099 17,274
Active Idle   0 0
Graph of results
JVM 'NODE-03.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,127
Calibration 2     169,665
Calibration 3     169,899
ssj_ops@calibrated=169,782
100% 99.7% 169,782 169,190
90% 90.3% 152,804 153,364
80% 80.8% 135,826 137,234
70% 70.5% 118,847 119,716
60% 60.3% 101,869 102,410
50% 50.1% 84,891 84,980
40% 40.3% 67,913 68,407
30% 29.9% 50,935 50,781
20% 19.8% 33,956 33,560
10% 10.0% 16,978 17,041
Active Idle   0 0
Graph of results
JVM 'NODE-03.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,684
Calibration 2     171,404
Calibration 3     171,471
ssj_ops@calibrated=171,437
100% 99.0% 171,437 169,804
90% 90.2% 154,294 154,655
80% 80.0% 137,150 137,218
70% 69.7% 120,006 119,510
60% 59.9% 102,862 102,695
50% 50.1% 85,719 85,966
40% 40.1% 68,575 68,819
30% 29.8% 51,431 51,170
20% 20.2% 34,287 34,584
10% 10.0% 17,144 17,078
Active Idle   0 0
Graph of results
JVM 'NODE-03.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,388
Calibration 2     171,062
Calibration 3     171,369
ssj_ops@calibrated=171,215
100% 99.9% 171,215 170,971
90% 90.5% 154,094 154,930
80% 79.9% 136,972 136,783
70% 70.4% 119,851 120,582
60% 59.9% 102,729 102,478
50% 49.5% 85,608 84,804
40% 39.5% 68,486 67,597
30% 30.2% 51,365 51,686
20% 19.5% 34,243 33,327
10% 9.9% 17,122 16,970
Active Idle   0 0
Graph of results
JVM 'NODE-03.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,144
Calibration 2     169,322
Calibration 3     169,297
ssj_ops@calibrated=169,309
100% 99.8% 169,309 168,930
90% 90.5% 152,378 153,193
80% 80.5% 135,447 136,267
70% 70.1% 118,516 118,628
60% 59.8% 101,586 101,193
50% 50.2% 84,655 84,989
40% 39.8% 67,724 67,338
30% 29.8% 50,793 50,493
20% 20.1% 33,862 34,059
10% 10.3% 16,931 17,520
Active Idle   0 0
Graph of results
JVM 'NODE-03.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,980
Calibration 2     171,247
Calibration 3     171,259
ssj_ops@calibrated=171,253
100% 99.8% 171,253 170,986
90% 91.1% 154,128 156,003
80% 80.6% 137,002 138,074
70% 70.2% 119,877 120,177
60% 60.3% 102,752 103,350
50% 49.9% 85,626 85,518
40% 40.0% 68,501 68,450
30% 30.0% 51,376 51,331
20% 19.9% 34,251 34,127
10% 10.0% 17,125 17,107
Active Idle   0 0
Graph of results
JVM 'NODE-03.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,906
Calibration 2     171,232
Calibration 3     171,577
ssj_ops@calibrated=171,404
100% 99.2% 171,404 170,002
90% 90.1% 154,264 154,359
80% 80.1% 137,123 137,280
70% 70.0% 119,983 120,041
60% 59.3% 102,843 101,586
50% 50.4% 85,702 86,320
40% 40.3% 68,562 69,070
30% 30.5% 51,421 52,273
20% 20.1% 34,281 34,371
10% 10.0% 17,140 17,158
Active Idle   0 0
Graph of results
JVM 'NODE-03.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,126
Calibration 2     171,301
Calibration 3     171,462
ssj_ops@calibrated=171,381
100% 99.7% 171,381 170,818
90% 90.0% 154,243 154,159
80% 81.1% 137,105 139,000
70% 68.8% 119,967 117,967
60% 60.1% 102,829 103,063
50% 49.1% 85,691 84,231
40% 39.8% 68,553 68,170
30% 29.8% 51,414 51,145
20% 20.4% 34,276 34,906
10% 9.9% 17,138 16,994
Active Idle   0 0
Graph of results
JVM 'NODE-03.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,295
Calibration 2     171,405
Calibration 3     171,515
ssj_ops@calibrated=171,460
100% 99.7% 171,460 171,017
90% 90.5% 154,314 155,234
80% 79.8% 137,168 136,874
70% 70.7% 120,022 121,219
60% 60.3% 102,876 103,339
50% 50.1% 85,730 85,850
40% 39.8% 68,584 68,195
30% 29.7% 51,438 50,841
20% 19.8% 34,292 33,985
10% 10.1% 17,146 17,294
Active Idle   0 0
Graph of results
JVM 'NODE-03.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,435
Calibration 2     170,620
Calibration 3     170,882
ssj_ops@calibrated=170,751
100% 99.7% 170,751 170,247
90% 89.6% 153,676 153,009
80% 79.7% 136,601 136,141
70% 70.0% 119,526 119,609
60% 60.0% 102,451 102,420
50% 49.9% 85,375 85,131
40% 40.2% 68,300 68,710
30% 30.0% 51,225 51,166
20% 19.7% 34,150 33,719
10% 10.1% 17,075 17,274
Active Idle   0 0
Graph of results
JVM 'NODE-03.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,815
Calibration 2     174,026
Calibration 3     173,784
ssj_ops@calibrated=173,905
100% 99.1% 173,905 172,319
90% 89.4% 156,515 155,411
80% 80.0% 139,124 139,176
70% 70.5% 121,734 122,615
60% 59.4% 104,343 103,260
50% 50.0% 86,953 86,928
40% 40.0% 69,562 69,516
30% 30.0% 52,172 52,134
20% 20.2% 34,781 35,125
10% 10.0% 17,391 17,349
Active Idle   0 0
Graph of results
JVM 'NODE-03.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,147
Calibration 2     171,802
Calibration 3     171,600
ssj_ops@calibrated=171,701
100% 99.4% 171,701 170,628
90% 89.7% 154,531 154,038
80% 79.6% 137,361 136,614
70% 70.1% 120,191 120,288
60% 59.8% 103,021 102,649
50% 49.8% 85,851 85,537
40% 40.3% 68,681 69,168
30% 30.0% 51,510 51,567
20% 19.9% 34,340 34,098
10% 10.1% 17,170 17,270
Active Idle   0 0
Graph of results
JVM 'NODE-03.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,616
Calibration 2     169,566
Calibration 3     169,623
ssj_ops@calibrated=169,595
100% 99.2% 169,595 168,168
90% 89.5% 152,635 151,760
80% 80.4% 135,676 136,437
70% 70.1% 118,716 118,832
60% 60.0% 101,757 101,758
50% 49.9% 84,797 84,685
40% 40.5% 67,838 68,634
30% 30.4% 50,878 51,609
20% 19.9% 33,919 33,761
10% 10.1% 16,959 17,191
Active Idle   0 0
Graph of results
JVM 'NODE-03.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,383
Calibration 2     174,112
Calibration 3     174,048
ssj_ops@calibrated=174,080
100% 99.6% 174,080 173,439
90% 89.2% 156,672 155,362
80% 80.2% 139,264 139,586
70% 70.4% 121,856 122,475
60% 60.5% 104,448 105,313
50% 49.5% 87,040 86,217
40% 40.1% 69,632 69,771
30% 30.1% 52,224 52,318
20% 20.2% 34,816 35,089
10% 10.0% 17,408 17,482
Active Idle   0 0
Graph of results

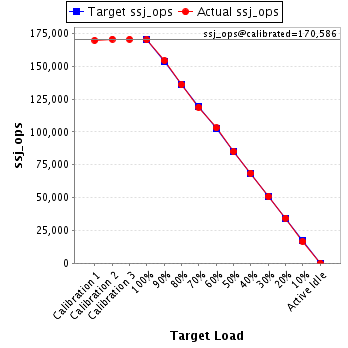

JVM 'NODE-03.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,763
Calibration 2     170,640
Calibration 3     170,532
ssj_ops@calibrated=170,586
100% 99.7% 170,586 170,064
90% 90.5% 153,528 154,370
80% 79.7% 136,469 136,021
70% 69.7% 119,410 118,821
60% 60.4% 102,352 103,049
50% 49.8% 85,293 84,983
40% 40.2% 68,235 68,601
30% 29.8% 51,176 50,884
20% 20.2% 34,117 34,448
10% 9.7% 17,059 16,533
Active Idle   0 0
Graph of results
