Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 10,929,289
ssj_ops@100% per JVM = 170,770
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 6, 2020
Hardware Availability: Jun-2020 Software Availability: Mar-2020 Publication: Apr 22, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,994,655
Calibration 2     10,977,280
Calibration 3     10,981,877
ssj_ops@calibrated=10,979,578
100% 99.5% 10,979,578 10,929,289
90% 90.0% 9,881,621 9,880,315
80% 80.0% 8,783,663 8,784,110
70% 69.9% 7,685,705 7,679,814
60% 60.0% 6,587,747 6,587,689
50% 50.0% 5,489,789 5,489,954
40% 40.0% 4,391,831 4,392,305
30% 30.0% 3,293,874 3,296,380
20% 20.0% 2,195,916 2,195,878
10% 10.0% 1,097,958 1,097,652
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7742 2.25 GHz
CPU Characteristics: 64-Core, 2.25 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1132)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 13.0.2+8, mixed mode, sharing); version 13.0.2
JVM Command-line Options: -server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelOldGC -XX:+UseLargePages
JVM Affinity: start /NODE [0-31] /AFFINITY [0xF, 0xF0]
JVM Instances: 64
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: A46 v1.20 (02/28/2020)
Management Firmware Version: 2.14 Feb 11 2020
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: 1.KB4539571, 2.KB4554354 (patched: 24. March, 2020)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE-02.001 165,469
NODE-02.002 167,246
NODE-02.003 170,655
NODE-02.004 169,958
NODE-02.005 170,748
NODE-02.006 172,276
NODE-02.007 167,737
NODE-02.008 169,910
NODE-02.009 162,973
NODE-02.010 171,423
NODE-02.011 172,725
NODE-02.012 176,032
NODE-02.013 169,017
NODE-02.014 175,709
NODE-02.015 173,635
NODE-02.016 171,769
NODE-02.017 173,404
NODE-02.018 173,381
NODE-02.019 171,040
NODE-02.020 169,666
NODE-02.021 170,032
NODE-02.022 166,589
NODE-02.023 173,624
NODE-02.024 171,342
NODE-02.025 167,381
NODE-02.026 169,758
NODE-02.027 173,960
NODE-02.028 176,143
NODE-02.029 175,739
NODE-02.030 171,072
NODE-02.031 171,605
NODE-02.032 166,168
NODE-02.033 172,357
NODE-02.034 167,917
NODE-02.035 172,776
NODE-02.036 169,754
NODE-02.037 166,463
NODE-02.038 168,836
NODE-02.039 167,313
NODE-02.040 172,800
NODE-02.041 171,950
NODE-02.042 169,167
NODE-02.043 171,598
NODE-02.044 171,785
NODE-02.045 174,500
NODE-02.046 171,213
NODE-02.047 174,484
NODE-02.048 170,958
NODE-02.049 171,986
NODE-02.050 167,620
NODE-02.051 168,444
NODE-02.052 165,762
NODE-02.053 171,719
NODE-02.054 171,028
NODE-02.055 169,532
NODE-02.056 168,508
NODE-02.057 169,555
NODE-02.058 174,664
NODE-02.059 169,098
NODE-02.060 171,928
NODE-02.061 171,731
NODE-02.062 173,174
NODE-02.063 172,992
NODE-02.064 169,493
ssj_ops@100% 10,929,289
ssj_ops@100% per JVM 170,770
Graph of per-instance results
JVM 'NODE-02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,508
Calibration 2     166,359
Calibration 3     166,401
ssj_ops@calibrated=166,380
100% 99.5% 166,380 165,469
90% 89.7% 149,742 149,195
80% 80.1% 133,104 133,329
70% 70.4% 116,466 117,049
60% 60.7% 99,828 100,992
50% 50.4% 83,190 83,880
40% 40.2% 66,552 66,896
30% 29.8% 49,914 49,640
20% 19.8% 33,276 33,010
10% 9.7% 16,638 16,170
Active Idle   0 0
Graph of results
JVM 'NODE-02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,642
Calibration 2     167,915
Calibration 3     167,974
ssj_ops@calibrated=167,945
100% 99.6% 167,945 167,246
90% 90.6% 151,150 152,145
80% 80.0% 134,356 134,279
70% 70.3% 117,561 118,052
60% 60.8% 100,767 102,105
50% 49.9% 83,972 83,727
40% 39.9% 67,178 67,004
30% 29.9% 50,383 50,221
20% 20.0% 33,589 33,663
10% 10.0% 16,794 16,725
Active Idle   0 0
Graph of results
JVM 'NODE-02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,119
Calibration 2     172,128
Calibration 3     172,139
ssj_ops@calibrated=172,134
100% 99.1% 172,134 170,655
90% 89.4% 154,920 153,824
80% 80.0% 137,707 137,749
70% 70.5% 120,494 121,422
60% 60.7% 103,280 104,544
50% 50.2% 86,067 86,409
40% 39.7% 68,853 68,378
30% 29.7% 51,640 51,099
20% 19.9% 34,427 34,177
10% 10.1% 17,213 17,424
Active Idle   0 0
Graph of results
JVM 'NODE-02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,920
Calibration 2     169,973
Calibration 3     170,323
ssj_ops@calibrated=170,148
100% 99.9% 170,148 169,958
90% 89.3% 153,133 152,000
80% 79.7% 136,118 135,594
70% 70.2% 119,104 119,477
60% 59.6% 102,089 101,441
50% 49.9% 85,074 84,894
40% 39.7% 68,059 67,558
30% 30.0% 51,044 51,030
20% 20.5% 34,030 34,890
10% 10.3% 17,015 17,478
Active Idle   0 0
Graph of results
JVM 'NODE-02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,078
Calibration 2     171,277
Calibration 3     171,450
ssj_ops@calibrated=171,363
100% 99.6% 171,363 170,748
90% 90.0% 154,227 154,164
80% 80.0% 137,091 137,052
70% 70.0% 119,954 119,883
60% 60.1% 102,818 103,007
50% 49.6% 85,682 84,922
40% 39.6% 68,545 67,815
30% 30.1% 51,409 51,563
20% 20.5% 34,273 35,177
10% 10.2% 17,136 17,541
Active Idle   0 0
Graph of results
JVM 'NODE-02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,342
Calibration 2     172,577
Calibration 3     172,643
ssj_ops@calibrated=172,610
100% 99.8% 172,610 172,276
90% 89.4% 155,349 154,377
80% 80.0% 138,088 138,049
70% 69.5% 120,827 120,012
60% 60.4% 103,566 104,339
50% 50.3% 86,305 86,751
40% 40.1% 69,044 69,254
30% 30.6% 51,783 52,740
20% 20.3% 34,522 35,092
10% 9.9% 17,261 17,145
Active Idle   0 0
Graph of results
JVM 'NODE-02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,628
Calibration 2     171,253
Calibration 3     167,568
ssj_ops@calibrated=169,411
100% 99.0% 169,411 167,737
90% 90.6% 152,470 153,474
80% 79.2% 135,529 134,153
70% 69.8% 118,588 118,189
60% 59.8% 101,646 101,310
50% 49.6% 84,705 84,039
40% 40.0% 67,764 67,804
30% 30.6% 50,823 51,768
20% 20.4% 33,882 34,552
10% 10.2% 16,941 17,208
Active Idle   0 0
Graph of results
JVM 'NODE-02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,628
Calibration 2     169,743
Calibration 3     173,294
ssj_ops@calibrated=171,519
100% 99.1% 171,519 169,910
90% 89.1% 154,367 152,827
80% 79.8% 137,215 136,886
70% 70.3% 120,063 120,612
60% 60.0% 102,911 102,993
50% 49.4% 85,759 84,811
40% 39.7% 68,607 68,080
30% 30.1% 51,456 51,551
20% 20.3% 34,304 34,765
10% 10.0% 17,152 17,099
Active Idle   0 0
Graph of results
JVM 'NODE-02.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,159
Calibration 2     163,524
Calibration 3     163,532
ssj_ops@calibrated=163,528
100% 99.7% 163,528 162,973
90% 90.5% 147,175 147,986
80% 79.8% 130,822 130,431
70% 70.0% 114,470 114,500
60% 59.9% 98,117 97,947
50% 50.5% 81,764 82,624
40% 39.4% 65,411 64,455
30% 30.1% 49,058 49,248
20% 19.7% 32,706 32,242
10% 10.0% 16,353 16,349
Active Idle   0 0
Graph of results
JVM 'NODE-02.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,000
Calibration 2     172,228
Calibration 3     172,279
ssj_ops@calibrated=172,254
100% 99.5% 172,254 171,423
90% 90.7% 155,028 156,256
80% 80.3% 137,803 138,282
70% 70.7% 120,578 121,727
60% 59.2% 103,352 101,982
50% 49.9% 86,127 85,963
40% 39.6% 68,901 68,142
30% 30.5% 51,676 52,484
20% 20.1% 34,451 34,581
10% 10.1% 17,225 17,317
Active Idle   0 0
Graph of results
JVM 'NODE-02.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,152
Calibration 2     174,030
Calibration 3     174,094
ssj_ops@calibrated=174,062
100% 99.2% 174,062 172,725
90% 89.6% 156,656 155,983
80% 79.6% 139,250 138,572
70% 70.0% 121,843 121,774
60% 59.7% 104,437 103,924
50% 49.9% 87,031 86,867
40% 40.3% 69,625 70,166
30% 30.1% 52,219 52,374
20% 20.0% 34,812 34,814
10% 9.9% 17,406 17,266
Active Idle   0 0
Graph of results
JVM 'NODE-02.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,500
Calibration 2     177,058
Calibration 3     176,995
ssj_ops@calibrated=177,027
100% 99.4% 177,027 176,032
90% 89.7% 159,324 158,793
80% 80.3% 141,621 142,190
70% 69.9% 123,919 123,705
60% 59.4% 106,216 105,234
50% 50.5% 88,513 89,446
40% 40.7% 70,811 71,966
30% 29.7% 53,108 52,556
20% 19.8% 35,405 35,023
10% 10.0% 17,703 17,670
Active Idle   0 0
Graph of results
JVM 'NODE-02.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,729
Calibration 2     169,320
Calibration 3     169,262
ssj_ops@calibrated=169,291
100% 99.8% 169,291 169,017
90% 88.9% 152,362 150,501
80% 80.0% 135,433 135,504
70% 70.0% 118,504 118,522
60% 60.2% 101,575 101,919
50% 50.3% 84,646 85,226
40% 40.7% 67,716 68,933
30% 29.9% 50,787 50,650
20% 20.3% 33,858 34,397
10% 9.9% 16,929 16,766
Active Idle   0 0
Graph of results
JVM 'NODE-02.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,430
Calibration 2     176,610
Calibration 3     176,358
ssj_ops@calibrated=176,484
100% 99.6% 176,484 175,709
90% 90.1% 158,836 159,016
80% 79.8% 141,187 140,857
70% 70.5% 123,539 124,403
60% 60.0% 105,890 105,931
50% 49.7% 88,242 87,652
40% 40.4% 70,594 71,274
30% 29.8% 52,945 52,656
20% 20.3% 35,297 35,807
10% 10.3% 17,648 18,123
Active Idle   0 0
Graph of results
JVM 'NODE-02.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,714
Calibration 2     174,194
Calibration 3     174,922
ssj_ops@calibrated=174,558
100% 99.5% 174,558 173,635
90% 90.2% 157,102 157,463
80% 80.6% 139,646 140,775
70% 70.3% 122,191 122,726
60% 59.6% 104,735 104,100
50% 50.1% 87,279 87,435
40% 39.6% 69,823 69,208
30% 30.4% 52,367 52,990
20% 19.9% 34,912 34,821
10% 10.2% 17,456 17,808
Active Idle   0 0
Graph of results
JVM 'NODE-02.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,644
Calibration 2     173,192
Calibration 3     173,398
ssj_ops@calibrated=173,295
100% 99.1% 173,295 171,769
90% 89.9% 155,965 155,838
80% 79.7% 138,636 138,124
70% 70.4% 121,306 122,021
60% 60.3% 103,977 104,553
50% 49.7% 86,647 86,139
40% 40.3% 69,318 69,771
30% 29.7% 51,988 51,441
20% 20.3% 34,659 35,111
10% 9.9% 17,329 17,086
Active Idle   0 0
Graph of results
JVM 'NODE-02.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,728
Calibration 2     174,071
Calibration 3     174,354
ssj_ops@calibrated=174,213
100% 99.5% 174,213 173,404
90% 90.8% 156,791 158,119
80% 79.5% 139,370 138,513
70% 70.1% 121,949 122,076
60% 60.6% 104,528 105,658
50% 50.2% 87,106 87,491
40% 40.2% 69,685 70,109
30% 30.3% 52,264 52,703
20% 20.1% 34,843 34,956
10% 9.9% 17,421 17,266
Active Idle   0 0
Graph of results
JVM 'NODE-02.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,228
Calibration 2     173,915
Calibration 3     174,036
ssj_ops@calibrated=173,975
100% 99.7% 173,975 173,381
90% 89.6% 156,578 155,849
80% 78.9% 139,180 137,300
70% 69.9% 121,783 121,647
60% 60.1% 104,385 104,645
50% 49.9% 86,988 86,883
40% 39.9% 69,590 69,409
30% 29.8% 52,193 51,768
20% 19.7% 34,795 34,265
10% 10.1% 17,398 17,511
Active Idle   0 0
Graph of results
JVM 'NODE-02.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,416
Calibration 2     171,381
Calibration 3     171,240
ssj_ops@calibrated=171,311
100% 99.8% 171,311 171,040
90% 90.2% 154,180 154,443
80% 80.2% 137,049 137,400
70% 70.1% 119,918 120,117
60% 59.8% 102,786 102,510
50% 49.5% 85,655 84,778
40% 39.9% 68,524 68,271
30% 30.2% 51,393 51,744
20% 19.9% 34,262 34,106
10% 10.2% 17,131 17,453
Active Idle   0 0
Graph of results
JVM 'NODE-02.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,930
Calibration 2     170,965
Calibration 3     171,119
ssj_ops@calibrated=171,042
100% 99.2% 171,042 169,666
90% 90.6% 153,938 155,035
80% 79.6% 136,833 136,171
70% 69.3% 119,729 118,529
60% 59.5% 102,625 101,821
50% 50.2% 85,521 85,862
40% 39.4% 68,417 67,387
30% 30.2% 51,313 51,726
20% 19.9% 34,208 34,043
10% 10.1% 17,104 17,191
Active Idle   0 0
Graph of results
JVM 'NODE-02.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,361
Calibration 2     169,894
Calibration 3     170,351
ssj_ops@calibrated=170,122
100% 99.9% 170,122 170,032
90% 90.2% 153,110 153,451
80% 79.7% 136,098 135,593
70% 69.9% 119,086 118,934
60% 60.0% 102,073 102,134
50% 50.3% 85,061 85,642
40% 40.6% 68,049 69,100
30% 30.0% 51,037 51,001
20% 20.2% 34,024 34,404
10% 10.1% 17,012 17,262
Active Idle   0 0
Graph of results
JVM 'NODE-02.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,226
Calibration 2     168,197
Calibration 3     168,636
ssj_ops@calibrated=168,416
100% 98.9% 168,416 166,589
90% 89.7% 151,575 151,146
80% 80.4% 134,733 135,365
70% 70.0% 117,891 117,870
60% 59.8% 101,050 100,703
50% 50.1% 84,208 84,335
40% 40.1% 67,366 67,603
30% 30.3% 50,525 51,106
20% 19.5% 33,683 32,899
10% 9.9% 16,842 16,661
Active Idle   0 0
Graph of results
JVM 'NODE-02.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,371
Calibration 2     174,827
Calibration 3     174,356
ssj_ops@calibrated=174,591
100% 99.4% 174,591 173,624
90% 89.8% 157,132 156,828
80% 80.4% 139,673 140,369
70% 69.9% 122,214 122,055
60% 60.0% 104,755 104,772
50% 50.3% 87,296 87,845
40% 39.8% 69,837 69,557
30% 30.0% 52,377 52,348
20% 19.9% 34,918 34,814
10% 10.1% 17,459 17,691
Active Idle   0 0
Graph of results
JVM 'NODE-02.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,756
Calibration 2     172,254
Calibration 3     172,608
ssj_ops@calibrated=172,431
100% 99.4% 172,431 171,342
90% 89.9% 155,188 155,063
80% 79.9% 137,945 137,845
70% 70.2% 120,702 121,024
60% 60.5% 103,459 104,293
50% 50.0% 86,216 86,175
40% 39.9% 68,972 68,806
30% 30.1% 51,729 51,863
20% 20.0% 34,486 34,454
10% 10.4% 17,243 17,948
Active Idle   0 0
Graph of results
JVM 'NODE-02.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,813
Calibration 2     167,792
Calibration 3     167,871
ssj_ops@calibrated=167,831
100% 99.7% 167,831 167,381
90% 89.6% 151,048 150,444
80% 80.1% 134,265 134,421
70% 69.8% 117,482 117,130
60% 60.2% 100,699 101,025
50% 50.3% 83,916 84,346
40% 40.3% 67,133 67,712
30% 29.8% 50,349 49,996
20% 20.0% 33,566 33,526
10% 9.8% 16,783 16,415
Active Idle   0 0
Graph of results
JVM 'NODE-02.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,871
Calibration 2     170,003
Calibration 3     169,882
ssj_ops@calibrated=169,943
100% 99.9% 169,943 169,758
90% 89.8% 152,949 152,540
80% 79.9% 135,954 135,797
70% 69.6% 118,960 118,295
60% 60.5% 101,966 102,802
50% 50.3% 84,971 85,489
40% 40.2% 67,977 68,271
30% 30.3% 50,983 51,571
20% 20.3% 33,989 34,468
10% 9.9% 16,994 16,760
Active Idle   0 0
Graph of results

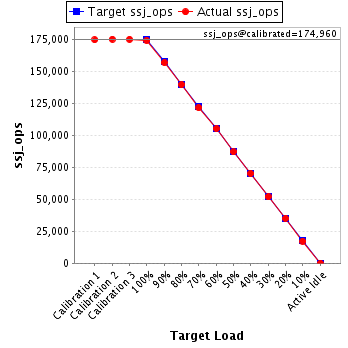

JVM 'NODE-02.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,460
Calibration 2     174,996
Calibration 3     174,925
ssj_ops@calibrated=174,960
100% 99.4% 174,960 173,960
90% 89.6% 157,464 156,689
80% 79.7% 139,968 139,378
70% 69.4% 122,472 121,404
60% 60.1% 104,976 105,151
50% 49.7% 87,480 86,925
40% 40.1% 69,984 70,128
30% 29.6% 52,488 51,856
20% 20.1% 34,992 35,130
10% 9.9% 17,496 17,277
Active Idle   0 0
Graph of results
JVM 'NODE-02.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,899
Calibration 2     176,301
Calibration 3     176,640
ssj_ops@calibrated=176,470
100% 99.8% 176,470 176,143
90% 90.8% 158,823 160,199
80% 79.6% 141,176 140,459
70% 70.6% 123,529 124,525
60% 59.6% 105,882 105,214
50% 50.2% 88,235 88,601
40% 39.4% 70,588 69,554
30% 30.3% 52,941 53,384
20% 19.9% 35,294 35,173
10% 9.9% 17,647 17,445
Active Idle   0 0
Graph of results
JVM 'NODE-02.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,648
Calibration 2     176,723
Calibration 3     176,524
ssj_ops@calibrated=176,623
100% 99.5% 176,623 175,739
90% 90.3% 158,961 159,495
80% 79.8% 141,299 141,028
70% 69.8% 123,636 123,244
60% 60.3% 105,974 106,441
50% 50.3% 88,312 88,831
40% 39.9% 70,649 70,546
30% 29.8% 52,987 52,666
20% 19.7% 35,325 34,826
10% 9.8% 17,662 17,261
Active Idle   0 0
Graph of results
JVM 'NODE-02.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,213
Calibration 2     172,505
Calibration 3     172,545
ssj_ops@calibrated=172,525
100% 99.2% 172,525 171,072
90% 90.4% 155,272 155,990
80% 80.5% 138,020 138,943
70% 70.6% 120,767 121,747
60% 60.1% 103,515 103,666
50% 50.8% 86,262 87,625
40% 39.9% 69,010 68,910
30% 29.9% 51,757 51,634
20% 20.3% 34,505 34,998
10% 10.0% 17,252 17,332
Active Idle   0 0
Graph of results
JVM 'NODE-02.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,250
Calibration 2     172,341
Calibration 3     172,703
ssj_ops@calibrated=172,522
100% 99.5% 172,522 171,605
90% 89.9% 155,270 155,153
80% 79.5% 138,018 137,190
70% 70.1% 120,766 120,859
60% 60.0% 103,513 103,570
50% 50.1% 86,261 86,452
40% 40.1% 69,009 69,228
30% 30.2% 51,757 52,124
20% 20.1% 34,504 34,634
10% 10.0% 17,252 17,177
Active Idle   0 0
Graph of results

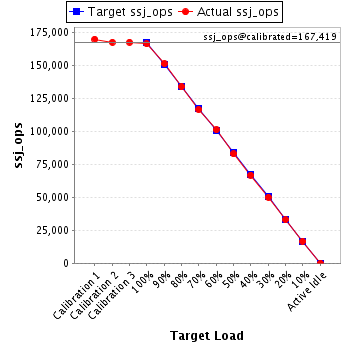

JVM 'NODE-02.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,696
Calibration 2     167,399
Calibration 3     167,438
ssj_ops@calibrated=167,419
100% 99.3% 167,419 166,168
90% 90.3% 150,677 151,142
80% 79.8% 133,935 133,643
70% 69.6% 117,193 116,473
60% 60.5% 100,451 101,210
50% 49.4% 83,709 82,749
40% 39.9% 66,967 66,737
30% 29.9% 50,226 49,997
20% 19.6% 33,484 32,858
10% 10.0% 16,742 16,674
Active Idle   0 0
Graph of results
JVM 'NODE-02.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,012
Calibration 2     173,859
Calibration 3     173,770
ssj_ops@calibrated=173,815
100% 99.2% 173,815 172,357
90% 89.2% 156,433 155,028
80% 79.4% 139,052 138,016
70% 70.2% 121,670 122,025
60% 60.1% 104,289 104,537
50% 49.7% 86,907 86,417
40% 40.2% 69,526 69,796
30% 30.2% 52,144 52,436
20% 19.9% 34,763 34,559
10% 9.7% 17,381 16,891
Active Idle   0 0
Graph of results
JVM 'NODE-02.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,431
Calibration 2     168,561
Calibration 3     168,830
ssj_ops@calibrated=168,696
100% 99.5% 168,696 167,917
90% 90.4% 151,826 152,493
80% 80.1% 134,957 135,046
70% 70.0% 118,087 118,003
60% 60.7% 101,217 102,375
50% 50.1% 84,348 84,509
40% 40.0% 67,478 67,553
30% 29.7% 50,609 50,178
20% 20.2% 33,739 34,109
10% 10.0% 16,870 16,899
Active Idle   0 0
Graph of results
JVM 'NODE-02.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,371
Calibration 2     172,918
Calibration 3     173,990
ssj_ops@calibrated=173,454
100% 99.6% 173,454 172,776
90% 89.4% 156,109 155,114
80% 80.4% 138,763 139,431
70% 70.0% 121,418 121,503
60% 59.8% 104,072 103,696
50% 49.9% 86,727 86,587
40% 40.0% 69,382 69,457
30% 30.1% 52,036 52,203
20% 20.2% 34,691 35,052
10% 10.0% 17,345 17,307
Active Idle   0 0
Graph of results
JVM 'NODE-02.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,671
Calibration 2     169,523
Calibration 3     169,535
ssj_ops@calibrated=169,529
100% 100.1% 169,529 169,754
90% 89.5% 152,576 151,733
80% 79.8% 135,623 135,318
70% 69.9% 118,670 118,517
60% 60.0% 101,717 101,665
50% 50.0% 84,764 84,846
40% 40.2% 67,812 68,233
30% 30.1% 50,859 51,040
20% 20.0% 33,906 33,828
10% 10.0% 16,953 16,941
Active Idle   0 0
Graph of results
JVM 'NODE-02.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,957
Calibration 2     166,794
Calibration 3     167,459
ssj_ops@calibrated=167,127
100% 99.6% 167,127 166,463
90% 91.0% 150,414 152,100
80% 79.7% 133,701 133,265
70% 70.1% 116,989 117,128
60% 59.8% 100,276 100,014
50% 49.8% 83,563 83,250
40% 40.8% 66,851 68,144
30% 29.8% 50,138 49,755
20% 19.7% 33,425 33,006
10% 9.8% 16,713 16,445
Active Idle   0 0
Graph of results
JVM 'NODE-02.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,223
Calibration 2     169,721
Calibration 3     169,586
ssj_ops@calibrated=169,653
100% 99.5% 169,653 168,836
90% 89.5% 152,688 151,865
80% 79.3% 135,722 134,613
70% 70.4% 118,757 119,393
60% 59.9% 101,792 101,678
50% 49.9% 84,827 84,619
40% 39.9% 67,861 67,721
30% 30.1% 50,896 50,986
20% 19.8% 33,931 33,628
10% 10.0% 16,965 17,024
Active Idle   0 0
Graph of results

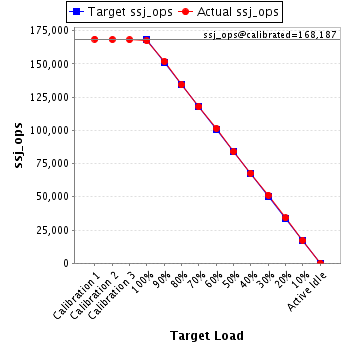

JVM 'NODE-02.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,601
Calibration 2     168,287
Calibration 3     168,086
ssj_ops@calibrated=168,187
100% 99.5% 168,187 167,313
90% 90.3% 151,368 151,911
80% 79.8% 134,549 134,182
70% 70.1% 117,731 117,880
60% 60.4% 100,912 101,530
50% 49.9% 84,093 83,878
40% 40.3% 67,275 67,703
30% 30.5% 50,456 51,268
20% 20.3% 33,637 34,064
10% 10.2% 16,819 17,173
Active Idle   0 0
Graph of results
JVM 'NODE-02.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,769
Calibration 2     173,997
Calibration 3     174,102
ssj_ops@calibrated=174,049
100% 99.3% 174,049 172,800
90% 91.2% 156,644 158,744
80% 80.5% 139,240 140,028
70% 69.5% 121,835 120,925
60% 59.8% 104,430 104,100
50% 50.0% 87,025 86,944
40% 40.1% 69,620 69,709
30% 30.1% 52,215 52,370
20% 20.1% 34,810 34,907
10% 9.8% 17,405 17,129
Active Idle   0 0
Graph of results
JVM 'NODE-02.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,615
Calibration 2     172,358
Calibration 3     172,359
ssj_ops@calibrated=172,359
100% 99.8% 172,359 171,950
90% 90.0% 155,123 155,086
80% 79.8% 137,887 137,622
70% 69.8% 120,651 120,275
60% 59.6% 103,415 102,798
50% 49.9% 86,179 85,936
40% 40.2% 68,943 69,351
30% 30.1% 51,708 51,894
20% 19.9% 34,472 34,289
10% 9.6% 17,236 16,591
Active Idle   0 0
Graph of results
JVM 'NODE-02.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,546
Calibration 2     169,556
Calibration 3     169,297
ssj_ops@calibrated=169,427
100% 99.8% 169,427 169,167
90% 90.5% 152,484 153,410
80% 80.6% 135,541 136,510
70% 69.7% 118,599 118,173
60% 60.0% 101,656 101,686
50% 50.5% 84,713 85,507
40% 40.0% 67,771 67,751
30% 30.1% 50,828 51,010
20% 20.1% 33,885 34,055
10% 9.9% 16,943 16,703
Active Idle   0 0
Graph of results
JVM 'NODE-02.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,447
Calibration 2     173,323
Calibration 3     173,440
ssj_ops@calibrated=173,381
100% 99.0% 173,381 171,598
90% 89.7% 156,043 155,573
80% 79.9% 138,705 138,583
70% 70.7% 121,367 122,662
60% 59.5% 104,029 103,150
50% 49.6% 86,691 86,035
40% 40.5% 69,353 70,285
30% 30.3% 52,014 52,518
20% 19.8% 34,676 34,252
10% 10.0% 17,338 17,326
Active Idle   0 0
Graph of results
JVM 'NODE-02.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,858
Calibration 2     171,903
Calibration 3     171,834
ssj_ops@calibrated=171,868
100% 100.0% 171,868 171,785
90% 90.8% 154,682 155,997
80% 80.1% 137,495 137,699
70% 69.8% 120,308 120,022
60% 59.9% 103,121 102,979
50% 49.9% 85,934 85,815
40% 39.9% 68,747 68,536
30% 29.8% 51,561 51,144
20% 19.9% 34,374 34,123
10% 10.1% 17,187 17,279
Active Idle   0 0
Graph of results
JVM 'NODE-02.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,103
Calibration 2     174,694
Calibration 3     174,962
ssj_ops@calibrated=174,828
100% 99.8% 174,828 174,500
90% 89.6% 157,345 156,645
80% 80.7% 139,863 141,006
70% 70.1% 122,380 122,617
60% 59.7% 104,897 104,381
50% 50.3% 87,414 87,853
40% 40.2% 69,931 70,282
30% 30.0% 52,448 52,397
20% 20.1% 34,966 35,215
10% 9.8% 17,483 17,166
Active Idle   0 0
Graph of results
JVM 'NODE-02.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,272
Calibration 2     171,348
Calibration 3     171,445
ssj_ops@calibrated=171,396
100% 99.9% 171,396 171,213
90% 89.7% 154,256 153,735
80% 79.9% 137,117 136,950
70% 69.7% 119,977 119,482
60% 60.7% 102,838 104,042
50% 49.7% 85,698 85,220
40% 40.1% 68,558 68,770
30% 30.2% 51,419 51,820
20% 19.6% 34,279 33,554
10% 10.0% 17,140 17,140
Active Idle   0 0
Graph of results
JVM 'NODE-02.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,606
Calibration 2     174,687
Calibration 3     174,749
ssj_ops@calibrated=174,718
100% 99.9% 174,718 174,484
90% 89.5% 157,246 156,406
80% 80.0% 139,774 139,779
70% 69.7% 122,303 121,811
60% 60.3% 104,831 105,349
50% 49.8% 87,359 86,929
40% 40.4% 69,887 70,639
30% 30.0% 52,415 52,358
20% 19.7% 34,944 34,470
10% 10.0% 17,472 17,498
Active Idle   0 0
Graph of results
JVM 'NODE-02.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,017
Calibration 2     171,264
Calibration 3     171,337
ssj_ops@calibrated=171,301
100% 99.8% 171,301 170,958
90% 90.5% 154,170 154,994
80% 80.3% 137,040 137,620
70% 69.6% 119,910 119,171
60% 59.4% 102,780 101,764
50% 49.7% 85,650 85,214
40% 39.8% 68,520 68,147
30% 29.5% 51,390 50,547
20% 19.7% 34,260 33,797
10% 10.1% 17,130 17,382
Active Idle   0 0
Graph of results

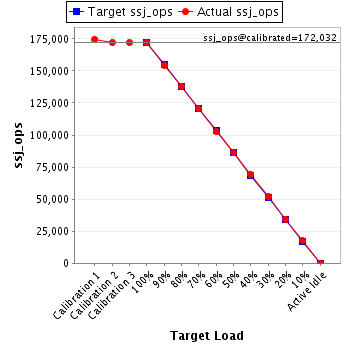

JVM 'NODE-02.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,779
Calibration 2     172,063
Calibration 3     172,002
ssj_ops@calibrated=172,032
100% 100.0% 172,032 171,986
90% 89.7% 154,829 154,373
80% 80.2% 137,626 138,043
70% 70.1% 120,423 120,524
60% 59.7% 103,219 102,681
50% 50.3% 86,016 86,575
40% 40.4% 68,813 69,516
30% 30.1% 51,610 51,815
20% 20.0% 34,406 34,329
10% 10.1% 17,203 17,407
Active Idle   0 0
Graph of results
JVM 'NODE-02.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,420
Calibration 2     168,411
Calibration 3     168,649
ssj_ops@calibrated=168,530
100% 99.5% 168,530 167,620
90% 90.5% 151,677 152,523
80% 80.4% 134,824 135,483
70% 69.2% 117,971 116,605
60% 60.3% 101,118 101,593
50% 50.5% 84,265 85,162
40% 39.6% 67,412 66,685
30% 30.1% 50,559 50,660
20% 19.9% 33,706 33,557
10% 10.1% 16,853 17,040
Active Idle   0 0
Graph of results
JVM 'NODE-02.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,090
Calibration 2     168,752
Calibration 3     168,918
ssj_ops@calibrated=168,835
100% 99.8% 168,835 168,444
90% 89.9% 151,952 151,867
80% 80.5% 135,068 135,855
70% 69.5% 118,185 117,413
60% 60.0% 101,301 101,242
50% 49.8% 84,418 84,054
40% 39.9% 67,534 67,343
30% 30.0% 50,651 50,611
20% 20.3% 33,767 34,205
10% 9.9% 16,884 16,782
Active Idle   0 0
Graph of results
JVM 'NODE-02.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,022
Calibration 2     167,031
Calibration 3     167,122
ssj_ops@calibrated=167,077
100% 99.2% 167,077 165,762
90% 89.5% 150,369 149,558
80% 81.2% 133,661 135,598
70% 70.0% 116,954 117,025
60% 59.9% 100,246 100,129
50% 50.3% 83,538 84,083
40% 39.6% 66,831 66,151
30% 30.4% 50,123 50,832
20% 20.5% 33,415 34,231
10% 10.2% 16,708 17,099
Active Idle   0 0
Graph of results
JVM 'NODE-02.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,886
Calibration 2     172,872
Calibration 3     172,773
ssj_ops@calibrated=172,822
100% 99.4% 172,822 171,719
90% 90.5% 155,540 156,437
80% 80.3% 138,258 138,843
70% 69.8% 120,976 120,620
60% 60.3% 103,693 104,273
50% 50.0% 86,411 86,435
40% 39.9% 69,129 69,015
30% 29.8% 51,847 51,567
20% 19.7% 34,564 34,119
10% 10.2% 17,282 17,574
Active Idle   0 0
Graph of results
JVM 'NODE-02.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,593
Calibration 2     171,991
Calibration 3     172,116
ssj_ops@calibrated=172,053
100% 99.4% 172,053 171,028
90% 89.3% 154,848 153,686
80% 79.8% 137,642 137,347
70% 70.4% 120,437 121,140
60% 59.9% 103,232 103,063
50% 49.7% 86,027 85,538
40% 39.9% 68,821 68,575
30% 29.6% 51,616 50,871
20% 19.4% 34,411 33,371
10% 10.0% 17,205 17,257
Active Idle   0 0
Graph of results
JVM 'NODE-02.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,220
Calibration 2     170,624
Calibration 3     170,551
ssj_ops@calibrated=170,588
100% 99.4% 170,588 169,532
90% 89.9% 153,529 153,423
80% 80.0% 136,470 136,523
70% 69.3% 119,411 118,251
60% 60.1% 102,353 102,607
50% 49.9% 85,294 85,144
40% 39.7% 68,235 67,803
30% 29.4% 51,176 50,142
20% 20.4% 34,118 34,735
10% 9.9% 17,059 16,886
Active Idle   0 0
Graph of results
JVM 'NODE-02.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,621
Calibration 2     169,259
Calibration 3     169,232
ssj_ops@calibrated=169,246
100% 99.6% 169,246 168,508
90% 90.1% 152,321 152,453
80% 80.0% 135,396 135,317
70% 69.4% 118,472 117,411
60% 59.9% 101,547 101,378
50% 50.1% 84,623 84,728
40% 39.5% 67,698 66,799
30% 30.0% 50,774 50,756
20% 20.0% 33,849 33,909
10% 10.0% 16,925 16,845
Active Idle   0 0
Graph of results
JVM 'NODE-02.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,147
Calibration 2     170,379
Calibration 3     170,390
ssj_ops@calibrated=170,384
100% 99.5% 170,384 169,555
90% 89.5% 153,346 152,450
80% 79.7% 136,307 135,715
70% 69.3% 119,269 118,042
60% 59.5% 102,231 101,308
50% 49.7% 85,192 84,743
40% 40.0% 68,154 68,144
30% 29.8% 51,115 50,700
20% 20.1% 34,077 34,183
10% 9.8% 17,038 16,662
Active Idle   0 0
Graph of results
JVM 'NODE-02.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,339
Calibration 2     174,820
Calibration 3     174,975
ssj_ops@calibrated=174,897
100% 99.9% 174,897 174,664
90% 89.9% 157,408 157,230
80% 80.1% 139,918 140,075
70% 69.9% 122,428 122,243
60% 60.0% 104,938 104,989
50% 50.0% 87,449 87,468
40% 40.3% 69,959 70,401
30% 30.2% 52,469 52,734
20% 20.4% 34,979 35,598
10% 9.8% 17,490 17,182
Active Idle   0 0
Graph of results
JVM 'NODE-02.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,166
Calibration 2     169,351
Calibration 3     169,213
ssj_ops@calibrated=169,282
100% 99.9% 169,282 169,098
90% 90.0% 152,354 152,402
80% 80.2% 135,426 135,820
70% 70.1% 118,497 118,657
60% 59.8% 101,569 101,220
50% 49.8% 84,641 84,304
40% 40.2% 67,713 67,982
30% 30.5% 50,785 51,633
20% 19.4% 33,856 32,898
10% 9.7% 16,928 16,495
Active Idle   0 0
Graph of results
JVM 'NODE-02.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,885
Calibration 2     171,994
Calibration 3     172,444
ssj_ops@calibrated=172,219
100% 99.8% 172,219 171,928
90% 90.2% 154,997 155,421
80% 80.1% 137,775 137,868
70% 70.1% 120,553 120,647
60% 59.6% 103,331 102,673
50% 50.3% 86,109 86,584
40% 40.3% 68,888 69,466
30% 29.8% 51,666 51,335
20% 19.7% 34,444 33,994
10% 10.2% 17,222 17,593
Active Idle   0 0
Graph of results
JVM 'NODE-02.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,738
Calibration 2     172,561
Calibration 3     172,569
ssj_ops@calibrated=172,565
100% 99.5% 172,565 171,731
90% 89.2% 155,308 153,952
80% 80.2% 138,052 138,354
70% 69.8% 120,795 120,406
60% 59.8% 103,539 103,125
50% 49.8% 86,282 85,867
40% 39.6% 69,026 68,295
30% 30.3% 51,769 52,237
20% 20.0% 34,513 34,568
10% 10.1% 17,256 17,374
Active Idle   0 0
Graph of results
JVM 'NODE-02.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,948
Calibration 2     173,739
Calibration 3     173,618
ssj_ops@calibrated=173,679
100% 99.7% 173,679 173,174
90% 90.9% 156,311 157,831
80% 80.5% 138,943 139,757
70% 69.7% 121,575 121,044
60% 60.3% 104,207 104,775
50% 49.6% 86,839 86,212
40% 39.9% 69,472 69,266
30% 29.9% 52,104 51,962
20% 19.8% 34,736 34,473
10% 10.0% 17,368 17,440
Active Idle   0 0
Graph of results

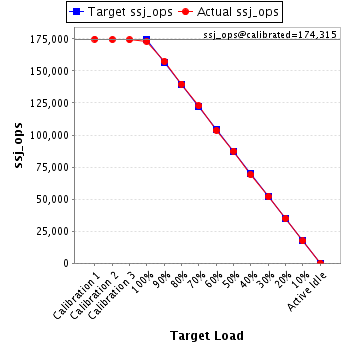

JVM 'NODE-02.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,728
Calibration 2     174,409
Calibration 3     174,222
ssj_ops@calibrated=174,315
100% 99.2% 174,315 172,992
90% 90.3% 156,884 157,376
80% 80.2% 139,452 139,760
70% 70.4% 122,021 122,674
60% 59.4% 104,589 103,581
50% 50.2% 87,158 87,505
40% 39.6% 69,726 68,967
30% 29.8% 52,295 51,941
20% 20.0% 34,863 34,926
10% 10.0% 17,432 17,400
Active Idle   0 0
Graph of results
JVM 'NODE-02.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,515
Calibration 2     171,287
Calibration 3     170,441
ssj_ops@calibrated=170,864
100% 99.2% 170,864 169,493
90% 89.6% 153,778 153,073
80% 80.1% 136,691 136,839
70% 68.8% 119,605 117,522
60% 59.3% 102,519 101,374
50% 49.9% 85,432 85,179
40% 39.7% 68,346 67,792
30% 29.9% 51,259 51,165
20% 20.0% 34,173 34,199
10% 10.1% 17,086 17,224
Active Idle   0 0
Graph of results
