Dell Inc. PowerEdge R7525 (AMD EPYC 7702, 2.00 GHz) SPECpower_ssj2008 = 20,910 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 21, 2020
Hardware Availability: Jun-2020 Software Availability: Feb-2020 Publication: Apr 8, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 390 20.8
Calibration 2 392 20.8
Calibration 3 393 20.9
100% 393 20.9
90% 370 21.0
80% 347 21.0
70% 321 21.0
60% 294 21.0
50% 270 20.9
40% 250 20.9
30% 229 20.9
20% 207 20.9
10% 181 20.9
Active Idle 72.3 20.9

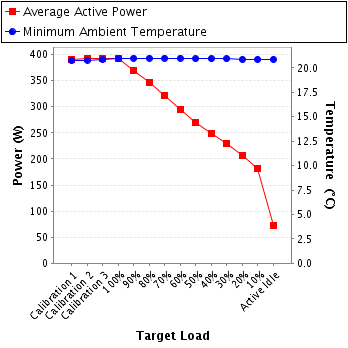

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91N819622
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: TesCom
Calibration Label: 98378
Date of Calibration: 21-Mar-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 1.88 2.0 0.996 390 0.3%
Calibration 2 208 300.0 1.89 2.0 0.996 392 0.3%
Calibration 3 208 300.0 1.90 2.0 0.996 393 0.3%
100% 208 300.0 1.89 2.0 0.996 393 0.3%
90% 208 300.0 1.78 2.0 0.996 370 0.3%
80% 208 300.0 1.67 2.0 0.996 347 0.3%
70% 208 300.0 1.55 2.0 0.995 321 0.4%
60% 208 300.0 1.42 2.0 0.994 294 0.4%
50% 208 300.0 1.30 2.0 0.993 270 0.4%
40% 208 300.0 1.21 2.0 0.992 250 0.4%
30% 208 300.0 1.11 2.0 0.991 229 0.4%
20% 208 300.0 1.00 2.0 0.989 207 0.5%
10% 208 300.0 0.881 2.0 0.987 181 0.5%
Active Idle 208 300.0 0.379 1.0 0.918 72.3 0.7%

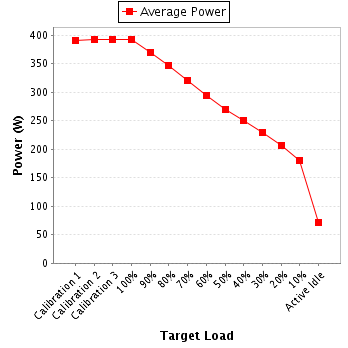

Power details for pwr1
