Fujitsu FUJITSU Server PRIMERGY RX2520 M5 SPECpower_ssj2008 = 10,765 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Jul 30, 2019
Hardware Availability: Jul-2019 Software Availability: Dec-2018 Publication: Sep 19, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 293 20.0
Calibration 2 318 20.1
Calibration 3 318 20.2
100% 318 20.2
90% 277 20.4
80% 240 20.4
70% 212 20.6
60% 188 20.7
50% 167 20.8
40% 151 20.8
30% 137 20.8
20% 122 20.8
10% 106 20.9
Active Idle 61.5 20.9
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: Hioki3336
Serial Number: 170134584
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION.
Calibration Label: H06400087-1901
Date of Calibration: 30-Jan-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 204 300.0 1.47 5.0 0.988 293 0.4%
Calibration 2 204 300.0 1.58 5.0 0.989 318 0.4%
Calibration 3 204 300.0 1.58 5.0 0.989 318 0.4%
100% 204 300.0 1.58 5.0 0.989 318 0.4%
90% 204 300.0 1.38 5.0 0.988 277 0.4%
80% 204 300.0 1.20 2.0 0.985 240 0.2%
70% 204 300.0 1.06 2.0 0.982 212 0.3%
60% 204 300.0 0.941 2.0 0.979 188 0.3%
50% 204 300.0 0.840 2.0 0.979 167 0.3%
40% 204 300.0 0.761 2.0 0.976 151 0.3%
30% 204 300.0 0.690 2.0 0.973 137 0.3%
20% 204 300.0 0.619 2.0 0.968 122 0.4%
10% 204 300.0 0.543 1.0 0.961 106 0.3%
Active Idle 204 300.0 0.333 1.0 0.905 61.5 0.4%

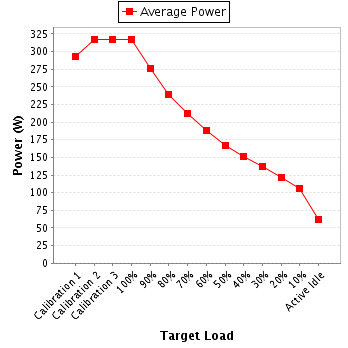

Power details for pwr1
