Lenovo Global Technology ThinkSystem SD530 | SPECpower_ssj2008 = 12,377 overall ssj_ops/watt | ||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Multi Node |
Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Jun 11, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Dec-2018 | Publication: | Jul 17, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

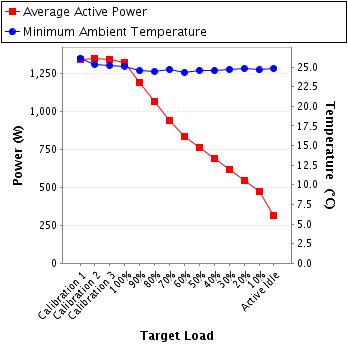

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 1,341 | 26.1 |
Calibration 2 | 1,353 | 25.3 |
Calibration 3 | 1,344 | 25.2 |
100% | 1,324 | 25.1 |
90% | 1,191 | 24.5 |
80% | 1,064 | 24.4 |
70% | 942 | 24.7 |
60% | 836 | 24.3 |
50% | 761 | 24.6 |
40% | 688 | 24.6 |
30% | 618 | 24.7 |
20% | 547 | 24.8 |
10% | 471 | 24.6 |
Active Idle | 315 | 24.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | YOKOGAWA, Inc. |
Model: | WT310 |
Serial Number: | C2RA21001V |
Connectivity: | USB2 |
Input Connection: | Default |
Metrology Institute: | Yokogawa Test & Measurement Corporation |
Accredited by: | Yokogawa Test & Measurement Corporation |
Calibration Label: | 18E388-BA1615-D8180F |
Date of Calibration: | 19-Apr-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connected to PSU 1,PSU 2 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi Intermational, Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 50 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 218 | 300.0 | 6.17 | 10.0 | 0.998 | 1,341 | 0.3% |
Calibration 2 | 218 | 300.0 | 6.22 | 10.0 | 0.999 | 1,353 | 0.3% |
Calibration 3 | 218 | 300.0 | 6.19 | 10.0 | 0.998 | 1,344 | 0.3% |
100% | 218 | 300.0 | 6.10 | 10.0 | 0.997 | 1,324 | 0.4% |
90% | 218 | 300.0 | 5.48 | 10.0 | 0.997 | 1,191 | 0.4% |
80% | 218 | 300.0 | 4.90 | 10.0 | 0.996 | 1,064 | 0.4% |
70% | 218 | 300.0 | 4.34 | 10.0 | 0.995 | 942 | 0.4% |
60% | 219 | 300.0 | 3.85 | 10.0 | 0.994 | 836 | 0.5% |
50% | 219 | 300.0 | 3.50 | 5.0 | 0.994 | 761 | 0.3% |
40% | 219 | 300.0 | 3.17 | 5.0 | 0.994 | 688 | 0.3% |
30% | 219 | 300.0 | 2.84 | 5.0 | 0.993 | 618 | 0.4% |
20% | 219 | 300.0 | 2.52 | 5.0 | 0.992 | 547 | 0.4% |
10% | 219 | 300.0 | 2.17 | 5.0 | 0.989 | 471 | 0.5% |
Active Idle | 219 | 300.0 | 1.47 | 5.0 | 0.975 | 315 | 0.6% |
