ASUSTeK Computer Inc. RS720-E9-RS8 SPECpower_ssj2008 = 14,066 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Jun 11, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Jul 3, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.9% 5,862,238 412 14,242
90% 89.6% 5,256,219 330 15,934
80% 79.9% 4,686,850 285 16,435
70% 70.0% 4,105,903 249 16,466
60% 59.9% 3,514,746 214 16,440
50% 50.0% 2,934,551 188 15,622
40% 40.0% 2,348,998 165 14,194
30% 30.0% 1,758,959 149 11,831
20% 20.0% 1,172,897 129 9,125
10% 10.0% 589,346 109 5,428
Active Idle 0 62.4 0
∑ssj_ops / ∑power = 14,066

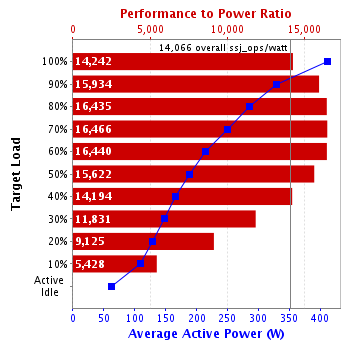

Graph of results
System Under Test
Set: 'RS720-E9-RS8'
Set Identifier: RS720-E9-RS8
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS720-E9-RS8
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8280L
CPU Characteristics: 28-Core, 2.7GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y ECC RDIMM; slots DIMM_A1, DIMMM_B1, DIMMM_C1, DIMMM_D1, DIMMM_E1, DIMMM_F1, DIMMM_G1, DIMMM_H1, DIMMM_J1, DIMMM_K1, DIMMM_L1, DIMMM_M1
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: Delta DPS-850AB-3 Rev.C
Disk Drive: 1 x 960GB Intel DC S3520 SATA 2.5 SSD P/N: 03B01-00160400
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=0
JVM Affinity: numactl -C [(0,56),(1,57),(2,58),(3,59),(7,63),(8,64),(9,65),(14,70),(15,71),(16,72),(17,73),(21,77),(22,78),(23,79),(4,60),(5,61),(6,62),(10,66),(11,67),(12,68),(13,69),(18,74),(19,75),(20,76),(24,80),(25,81),(26,82),(27,83),(28,84),(29,85),(30,86),(31,87),(35,91),(36,92),(37,93),(42,98),(43,99),(44,100),(45,101),(49,105),(50,106),(51,107),(32,88),(33,89),(34,90),(38,94),(39,95),(40,96),(41,97),(46,102),(47,103),(48,104),(52,108),(53,109),(54,110),(55,111)] --membind=[0-3]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 5102
Management Firmware Version: 1.13.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS200-E9-PS2
CPU Description: 1 x E3-1240L V5
Memory amount (GB): 64
Software
Operating System (OS): Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Good Will Instrument Co., Ltd.
Model: GPM-8212
Serial Number: GCR150073
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: GCR150073
Date of Calibration: 24-Apr-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: RS-232
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm.
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 412 21.4
90% 330 21.3
80% 285 21.2
70% 249 21.2
60% 214 21.2
50% 188 21.2
40% 165 21.1
30% 149 21.1
20% 129 21.1
10% 109 21.1
Active Idle 62.4 21.2
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 21.1 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,817,431
Calibration 2     5,864,893
Calibration 3     5,871,087
ssj_ops@calibrated=5,867,990
100% 99.9% 5,867,990 5,862,238
90% 89.6% 5,281,191 5,256,219
80% 79.9% 4,694,392 4,686,850
70% 70.0% 4,107,593 4,105,903
60% 59.9% 3,520,794 3,514,746
50% 50.0% 2,933,995 2,934,551
40% 40.0% 2,347,196 2,348,998
30% 30.0% 1,760,397 1,758,959
20% 20.0% 1,173,598 1,172,897
10% 10.0% 586,799 589,346
Active Idle   0 0

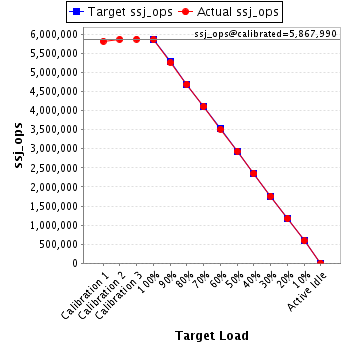

Graph of results
