Supermicro Inc. SuperServer SYS-6029P-WTR ssj_ops@100% = 5,545,677
ssj_ops@100% per JVM = 99,030
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: San Jose, CA, USA Test Date: Apr 15, 2019
Hardware Availability: Apr-2019 Software Availability: Apr-2019 Publication: Jul 23, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,609,203
Calibration 2     5,552,589
Calibration 3     5,561,157
ssj_ops@calibrated=5,556,873
100% 99.8% 5,556,873 5,545,677
90% 88.8% 5,001,186 4,936,465
80% 78.8% 4,445,498 4,379,026
70% 68.9% 3,889,811 3,827,490
60% 59.5% 3,334,124 3,304,232
50% 49.9% 2,778,437 2,773,736
40% 40.0% 2,222,749 2,220,617
30% 30.0% 1,667,062 1,666,549
20% 20.1% 1,111,375 1,114,696
10% 10.0% 555,687 552,954
Active Idle   0 0
Graph of results
System Under Test
Set: 'X11DDW-L'
Set Identifier: X11DDW-L
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro Inc.
Model: SuperServer SYS-6029P-WTR
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8280 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V; CPU1/2 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: PWS-802A-1R (S/N:P802ACH19A00324)
Disk Drive: 1 x Samsung SATA III 480 GB SSD (S/N:MZ7KM480HAHP-00005)
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-Port Intel X722 Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server Enterprise 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000];start /NODE [1,3] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: X11DDW9_112
Management Firmware Version: SMT_X11AST2500_164
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4054519, KB4493446 applied to the test system in Apr-2019.
Boot Firmware Settings
  • Power Technology: Custom
  • Power Performance Tuning: BIOS Controls EPB
  • ENERGY_PERF_BIAS_CFG: Max Power Efficient
  • Management Firmware Settings
  • Fan mode: Set Fan to PUE2
  • System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    WIN-8JPLLAQK682.001 99,933
    WIN-8JPLLAQK682.002 98,520
    WIN-8JPLLAQK682.003 99,554
    WIN-8JPLLAQK682.004 101,296
    WIN-8JPLLAQK682.005 101,335
    WIN-8JPLLAQK682.006 101,937
    WIN-8JPLLAQK682.007 98,406
    WIN-8JPLLAQK682.008 100,757
    WIN-8JPLLAQK682.009 102,055
    WIN-8JPLLAQK682.010 99,776
    WIN-8JPLLAQK682.011 97,585
    WIN-8JPLLAQK682.012 101,857
    WIN-8JPLLAQK682.013 99,715
    WIN-8JPLLAQK682.014 99,479
    WIN-8JPLLAQK682.015 100,392
    WIN-8JPLLAQK682.016 99,245
    WIN-8JPLLAQK682.017 98,513
    WIN-8JPLLAQK682.018 97,793
    WIN-8JPLLAQK682.019 97,862
    WIN-8JPLLAQK682.020 100,513
    WIN-8JPLLAQK682.021 99,946
    WIN-8JPLLAQK682.022 100,250
    WIN-8JPLLAQK682.023 99,965
    WIN-8JPLLAQK682.024 100,298
    WIN-8JPLLAQK682.025 99,400
    WIN-8JPLLAQK682.026 98,116
    WIN-8JPLLAQK682.027 98,687
    WIN-8JPLLAQK682.028 98,890
    WIN-8JPLLAQK682.029 99,135
    WIN-8JPLLAQK682.030 100,257
    WIN-8JPLLAQK682.031 97,910
    WIN-8JPLLAQK682.032 97,212
    WIN-8JPLLAQK682.033 98,401
    WIN-8JPLLAQK682.034 100,251
    WIN-8JPLLAQK682.035 98,381
    WIN-8JPLLAQK682.036 100,978
    WIN-8JPLLAQK682.037 98,280
    WIN-8JPLLAQK682.038 99,047
    WIN-8JPLLAQK682.039 97,886
    WIN-8JPLLAQK682.040 97,838
    WIN-8JPLLAQK682.041 97,755
    WIN-8JPLLAQK682.042 96,414
    WIN-8JPLLAQK682.043 97,952
    WIN-8JPLLAQK682.044 97,023
    WIN-8JPLLAQK682.045 98,108
    WIN-8JPLLAQK682.046 96,225
    WIN-8JPLLAQK682.047 97,294
    WIN-8JPLLAQK682.048 98,487
    WIN-8JPLLAQK682.049 99,351
    WIN-8JPLLAQK682.050 98,356
    WIN-8JPLLAQK682.051 98,791
    WIN-8JPLLAQK682.052 99,050
    WIN-8JPLLAQK682.053 96,980
    WIN-8JPLLAQK682.054 98,952
    WIN-8JPLLAQK682.055 100,129
    WIN-8JPLLAQK682.056 97,155
    ssj_ops@100% 5,545,677
    ssj_ops@100% per JVM 99,030
    Graph of per-instance results
    JVM 'WIN-8JPLLAQK682.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     101,620
    Calibration 2     100,005
    Calibration 3     100,631
    ssj_ops@calibrated=100,318
    100% 99.6% 100,318 99,933
    90% 87.9% 90,286 88,176
    80% 78.4% 80,254 78,643
    70% 68.1% 70,223 68,349
    60% 58.8% 60,191 58,975
    50% 50.9% 50,159 51,064
    40% 39.4% 40,127 39,494
    30% 29.9% 30,095 30,004
    20% 20.5% 20,064 20,546
    10% 9.8% 10,032 9,795
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,249
    Calibration 2     98,326
    Calibration 3     99,284
    ssj_ops@calibrated=98,805
    100% 99.7% 98,805 98,520
    90% 88.2% 88,924 87,160
    80% 78.6% 79,044 77,668
    70% 69.0% 69,163 68,155
    60% 58.9% 59,283 58,193
    50% 49.8% 49,402 49,235
    40% 39.5% 39,522 39,060
    30% 29.7% 29,641 29,296
    20% 19.9% 19,761 19,692
    10% 10.0% 9,880 9,907
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,529
    Calibration 2     99,527
    Calibration 3     100,396
    ssj_ops@calibrated=99,962
    100% 99.6% 99,962 99,554
    90% 88.1% 89,965 88,034
    80% 78.6% 79,969 78,543
    70% 68.6% 69,973 68,547
    60% 59.0% 59,977 58,950
    50% 49.7% 49,981 49,636
    40% 39.8% 39,985 39,757
    30% 30.5% 29,988 30,474
    20% 20.3% 19,992 20,253
    10% 9.9% 9,996 9,882
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,732
    Calibration 2     100,452
    Calibration 3     100,716
    ssj_ops@calibrated=100,584
    100% 100.7% 100,584 101,296
    90% 88.0% 90,526 88,468
    80% 78.7% 80,467 79,120
    70% 68.7% 70,409 69,087
    60% 58.9% 60,350 59,277
    50% 50.5% 50,292 50,787
    40% 39.8% 40,234 40,053
    30% 30.5% 30,175 30,639
    20% 19.9% 20,117 19,969
    10% 9.5% 10,058 9,561
    Active Idle   0 0
    Graph of results

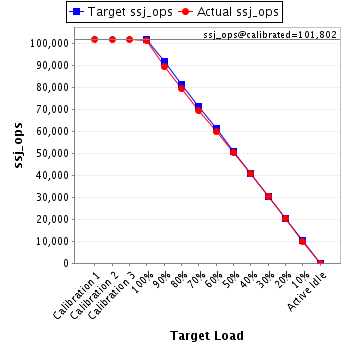

    JVM 'WIN-8JPLLAQK682.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     101,945
    Calibration 2     101,718
    Calibration 3     101,886
    ssj_ops@calibrated=101,802
    100% 99.5% 101,802 101,335
    90% 87.7% 91,622 89,328
    80% 77.9% 81,441 79,303
    70% 68.2% 71,261 69,444
    60% 58.7% 61,081 59,765
    50% 49.5% 50,901 50,343
    40% 40.0% 40,721 40,711
    30% 30.0% 30,541 30,590
    20% 19.8% 20,360 20,183
    10% 9.7% 10,180 9,875
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     101,006
    Calibration 2     102,150
    Calibration 3     101,740
    ssj_ops@calibrated=101,945
    100% 100.0% 101,945 101,937
    90% 88.3% 91,750 89,999
    80% 78.6% 81,556 80,098
    70% 68.4% 71,361 69,681
    60% 59.2% 61,167 60,358
    50% 49.8% 50,972 50,805
    40% 40.3% 40,778 41,041
    30% 29.4% 30,583 29,979
    20% 20.3% 20,389 20,697
    10% 10.1% 10,194 10,249
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     98,735
    Calibration 2     97,980
    Calibration 3     98,060
    ssj_ops@calibrated=98,020
    100% 100.4% 98,020 98,406
    90% 87.9% 88,218 86,137
    80% 78.4% 78,416 76,882
    70% 68.8% 68,614 67,473
    60% 59.0% 58,812 57,847
    50% 50.1% 49,010 49,090
    40% 40.3% 39,208 39,485
    30% 30.0% 29,406 29,390
    20% 20.7% 19,604 20,300
    10% 10.1% 9,802 9,872
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     102,151
    Calibration 2     101,398
    Calibration 3     101,205
    ssj_ops@calibrated=101,301
    100% 99.5% 101,301 100,757
    90% 87.4% 91,171 88,494
    80% 78.0% 81,041 79,010
    70% 68.4% 70,911 69,319
    60% 58.7% 60,781 59,484
    50% 50.1% 50,651 50,768
    40% 40.3% 40,520 40,844
    30% 29.7% 30,390 30,098
    20% 20.1% 20,260 20,320
    10% 9.7% 10,130 9,854
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     102,236
    Calibration 2     100,527
    Calibration 3     101,246
    ssj_ops@calibrated=100,886
    100% 101.2% 100,886 102,055
    90% 88.2% 90,798 88,979
    80% 78.5% 80,709 79,172
    70% 68.8% 70,620 69,460
    60% 58.5% 60,532 59,030
    50% 49.7% 50,443 50,140
    40% 39.7% 40,355 40,024
    30% 29.8% 30,266 30,075
    20% 20.4% 20,177 20,540
    10% 10.1% 10,089 10,233
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,907
    Calibration 2     98,894
    Calibration 3     99,640
    ssj_ops@calibrated=99,267
    100% 100.5% 99,267 99,776
    90% 87.5% 89,340 86,834
    80% 78.3% 79,414 77,699
    70% 68.5% 69,487 68,003
    60% 58.7% 59,560 58,307
    50% 49.8% 49,634 49,407
    40% 40.6% 39,707 40,344
    30% 29.4% 29,780 29,175
    20% 20.0% 19,853 19,835
    10% 10.4% 9,927 10,308
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,801
    Calibration 2     98,339
    Calibration 3     99,219
    ssj_ops@calibrated=98,779
    100% 98.8% 98,779 97,585
    90% 88.6% 88,901 87,487
    80% 78.8% 79,023 77,864
    70% 69.0% 69,145 68,113
    60% 59.5% 59,267 58,790
    50% 49.0% 49,390 48,370
    40% 40.6% 39,512 40,109
    30% 30.5% 29,634 30,102
    20% 20.2% 19,756 19,929
    10% 10.0% 9,878 9,870
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,967
    Calibration 2     101,620
    Calibration 3     101,736
    ssj_ops@calibrated=101,678
    100% 100.2% 101,678 101,857
    90% 87.6% 91,510 89,021
    80% 78.2% 81,342 79,511
    70% 68.4% 71,174 69,573
    60% 59.2% 61,007 60,154
    50% 49.9% 50,839 50,726
    40% 39.1% 40,671 39,712
    30% 30.0% 30,503 30,498
    20% 20.0% 20,336 20,307
    10% 9.6% 10,168 9,791
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     101,353
    Calibration 2     100,229
    Calibration 3     100,761
    ssj_ops@calibrated=100,495
    100% 99.2% 100,495 99,715
    90% 87.7% 90,445 88,179
    80% 78.3% 80,396 78,690
    70% 68.6% 70,346 68,935
    60% 58.8% 60,297 59,068
    50% 49.6% 50,247 49,888
    40% 40.2% 40,198 40,377
    30% 29.7% 30,148 29,867
    20% 20.1% 20,099 20,213
    10% 9.8% 10,049 9,829
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,581
    Calibration 2     99,584
    Calibration 3     100,151
    ssj_ops@calibrated=99,867
    100% 99.6% 99,867 99,479
    90% 87.6% 89,881 87,524
    80% 78.1% 79,894 78,023
    70% 68.1% 69,907 68,056
    60% 58.8% 59,920 58,734
    50% 49.8% 49,934 49,732
    40% 39.5% 39,947 39,483
    30% 29.7% 29,960 29,663
    20% 20.1% 19,973 20,067
    10% 9.5% 9,987 9,525
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,171
    Calibration 2     99,589
    Calibration 3     99,444
    ssj_ops@calibrated=99,517
    100% 100.9% 99,517 100,392
    90% 88.2% 89,565 87,735
    80% 78.1% 79,613 77,722
    70% 68.6% 69,662 68,235
    60% 58.6% 59,710 58,272
    50% 50.0% 49,758 49,767
    40% 39.5% 39,807 39,319
    30% 29.9% 29,855 29,795
    20% 20.0% 19,903 19,932
    10% 9.5% 9,952 9,425
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     101,019
    Calibration 2     100,012
    Calibration 3     99,557
    ssj_ops@calibrated=99,785
    100% 99.5% 99,785 99,245
    90% 88.6% 89,806 88,376
    80% 78.6% 79,828 78,450
    70% 68.5% 69,849 68,386
    60% 59.2% 59,871 59,036
    50% 50.4% 49,892 50,293
    40% 40.5% 39,914 40,402
    30% 30.0% 29,935 29,933
    20% 20.3% 19,957 20,285
    10% 9.8% 9,978 9,751
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.017' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,642
    Calibration 2     99,662
    Calibration 3     99,275
    ssj_ops@calibrated=99,469
    100% 99.0% 99,469 98,513
    90% 88.1% 89,522 87,609
    80% 78.3% 79,575 77,891
    70% 68.4% 69,628 68,058
    60% 59.1% 59,681 58,775
    50% 49.7% 49,734 49,415
    40% 39.5% 39,788 39,318
    30% 30.1% 29,841 29,918
    20% 20.2% 19,894 20,114
    10% 10.2% 9,947 10,135
    Active Idle   0 0
    Graph of results

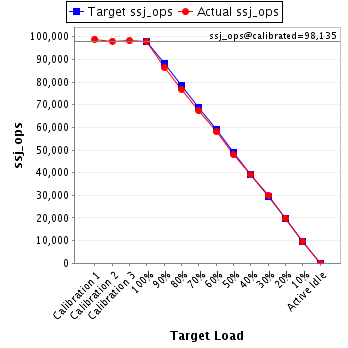

    JVM 'WIN-8JPLLAQK682.018' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     98,958
    Calibration 2     98,080
    Calibration 3     98,190
    ssj_ops@calibrated=98,135
    100% 99.7% 98,135 97,793
    90% 88.2% 88,322 86,509
    80% 78.4% 78,508 76,947
    70% 68.6% 68,695 67,347
    60% 59.2% 58,881 58,117
    50% 48.9% 49,068 47,947
    40% 39.7% 39,254 38,998
    30% 30.6% 29,441 30,042
    20% 20.1% 19,627 19,686
    10% 9.9% 9,814 9,724
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.019' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,708
    Calibration 2     98,369
    Calibration 3     98,818
    ssj_ops@calibrated=98,593
    100% 99.3% 98,593 97,862
    90% 88.3% 88,734 87,078
    80% 78.3% 78,875 77,190
    70% 68.4% 69,015 67,407
    60% 59.1% 59,156 58,315
    50% 49.5% 49,297 48,759
    40% 40.6% 39,437 40,058
    30% 30.0% 29,578 29,593
    20% 19.8% 19,719 19,552
    10% 9.9% 9,859 9,787
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.020' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     102,195
    Calibration 2     101,870
    Calibration 3     101,254
    ssj_ops@calibrated=101,562
    100% 99.0% 101,562 100,513
    90% 88.0% 91,406 89,370
    80% 78.1% 81,250 79,312
    70% 68.5% 71,094 69,547
    60% 59.2% 60,937 60,140
    50% 49.9% 50,781 50,698
    40% 40.1% 40,625 40,686
    30% 30.0% 30,469 30,484
    20% 20.0% 20,312 20,290
    10% 10.0% 10,156 10,124
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.021' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,802
    Calibration 2     99,584
    Calibration 3     99,709
    ssj_ops@calibrated=99,647
    100% 100.3% 99,647 99,946
    90% 88.2% 89,682 87,857
    80% 78.5% 79,717 78,192
    70% 68.8% 69,753 68,537
    60% 59.0% 59,788 58,744
    50% 49.9% 49,823 49,701
    40% 40.4% 39,859 40,244
    30% 29.6% 29,894 29,499
    20% 19.8% 19,929 19,735
    10% 9.9% 9,965 9,875
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.022' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,738
    Calibration 2     100,439
    Calibration 3     100,498
    ssj_ops@calibrated=100,468
    100% 99.8% 100,468 100,250
    90% 88.4% 90,422 88,788
    80% 78.9% 80,375 79,273
    70% 68.4% 70,328 68,763
    60% 59.2% 60,281 59,488
    50% 50.2% 50,234 50,464
    40% 40.3% 40,187 40,503
    30% 29.9% 30,141 30,046
    20% 20.2% 20,094 20,295
    10% 10.2% 10,047 10,237
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.023' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     102,071
    Calibration 2     100,813
    Calibration 3     100,463
    ssj_ops@calibrated=100,638
    100% 99.3% 100,638 99,965
    90% 88.1% 90,574 88,665
    80% 78.4% 80,510 78,878
    70% 68.1% 70,446 68,537
    60% 59.1% 60,383 59,519
    50% 50.1% 50,319 50,399
    40% 39.8% 40,255 40,088
    30% 29.6% 30,191 29,834
    20% 19.9% 20,128 20,075
    10% 9.9% 10,064 9,954
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.024' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,683
    Calibration 2     99,413
    Calibration 3     99,664
    ssj_ops@calibrated=99,538
    100% 100.8% 99,538 100,298
    90% 88.1% 89,585 87,737
    80% 78.5% 79,631 78,131
    70% 68.5% 69,677 68,156
    60% 59.1% 59,723 58,823
    50% 49.7% 49,769 49,468
    40% 39.5% 39,815 39,338
    30% 30.0% 29,862 29,890
    20% 19.9% 19,908 19,833
    10% 9.7% 9,954 9,670
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.025' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,454
    Calibration 2     99,441
    Calibration 3     99,591
    ssj_ops@calibrated=99,516
    100% 99.9% 99,516 99,400
    90% 88.4% 89,564 87,958
    80% 77.8% 79,613 77,436
    70% 68.2% 69,661 67,912
    60% 58.7% 59,710 58,382
    50% 50.9% 49,758 50,608
    40% 40.1% 39,806 39,941
    30% 29.5% 29,855 29,335
    20% 19.7% 19,903 19,583
    10% 9.7% 9,952 9,616
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.026' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,925
    Calibration 2     98,590
    Calibration 3     98,687
    ssj_ops@calibrated=98,638
    100% 99.5% 98,638 98,116
    90% 88.5% 88,774 87,251
    80% 78.4% 78,911 77,330
    70% 68.3% 69,047 67,415
    60% 59.0% 59,183 58,236
    50% 49.9% 49,319 49,186
    40% 40.5% 39,455 39,940
    30% 30.1% 29,591 29,656
    20% 20.3% 19,728 19,987
    10% 10.3% 9,864 10,183
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.027' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,677
    Calibration 2     99,015
    Calibration 3     99,101
    ssj_ops@calibrated=99,058
    100% 99.6% 99,058 98,687
    90% 88.5% 89,152 87,621
    80% 78.6% 79,246 77,833
    70% 68.7% 69,340 68,018
    60% 58.8% 59,435 58,266
    50% 49.7% 49,529 49,268
    40% 39.7% 39,623 39,284
    30% 30.2% 29,717 29,876
    20% 20.1% 19,812 19,878
    10% 10.3% 9,906 10,200
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.028' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,252
    Calibration 2     98,467
    Calibration 3     98,600
    ssj_ops@calibrated=98,534
    100% 100.4% 98,534 98,890
    90% 88.6% 88,680 87,303
    80% 78.8% 78,827 77,649
    70% 68.6% 68,974 67,582
    60% 59.5% 59,120 58,591
    50% 49.8% 49,267 49,100
    40% 40.0% 39,414 39,456
    30% 30.3% 29,560 29,839
    20% 20.0% 19,707 19,735
    10% 10.0% 9,853 9,862
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.029' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     101,267
    Calibration 2     98,814
    Calibration 3     98,610
    ssj_ops@calibrated=98,712
    100% 100.4% 98,712 99,135
    90% 88.6% 88,841 87,477
    80% 79.4% 78,970 78,376
    70% 69.6% 69,098 68,694
    60% 60.2% 59,227 59,472
    50% 49.7% 49,356 49,022
    40% 40.2% 39,485 39,712
    30% 29.8% 29,614 29,372
    20% 19.8% 19,742 19,583
    10% 10.0% 9,871 9,825
    Active Idle   0 0
    Graph of results

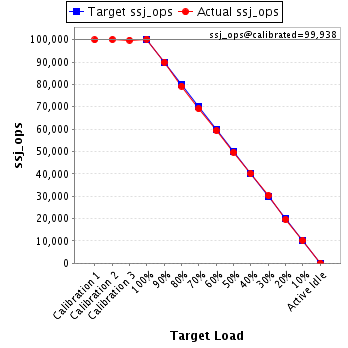

    JVM 'WIN-8JPLLAQK682.030' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,929
    Calibration 2     100,075
    Calibration 3     99,801
    ssj_ops@calibrated=99,938
    100% 100.3% 99,938 100,257
    90% 90.0% 89,944 89,942
    80% 79.3% 79,950 79,276
    70% 69.2% 69,957 69,124
    60% 59.4% 59,963 59,338
    50% 49.7% 49,969 49,665
    40% 40.1% 39,975 40,033
    30% 30.3% 29,981 30,237
    20% 19.6% 19,988 19,583
    10% 10.2% 9,994 10,225
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.031' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,224
    Calibration 2     97,358
    Calibration 3     98,041
    ssj_ops@calibrated=97,699
    100% 100.2% 97,699 97,910
    90% 90.3% 87,929 88,243
    80% 79.0% 78,159 77,192
    70% 69.3% 68,390 67,749
    60% 59.6% 58,620 58,277
    50% 49.9% 48,850 48,715
    40% 39.9% 39,080 38,949
    30% 29.9% 29,310 29,216
    20% 19.9% 19,540 19,473
    10% 10.5% 9,770 10,262
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.032' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,952
    Calibration 2     98,195
    Calibration 3     98,065
    ssj_ops@calibrated=98,130
    100% 99.1% 98,130 97,212
    90% 89.1% 88,317 87,407
    80% 79.3% 78,504 77,784
    70% 69.1% 68,691 67,783
    60% 59.8% 58,878 58,661
    50% 50.7% 49,065 49,740
    40% 40.5% 39,252 39,697
    30% 30.6% 29,439 30,011
    20% 20.5% 19,626 20,132
    10% 9.7% 9,813 9,500
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.033' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     101,022
    Calibration 2     98,592
    Calibration 3     99,134
    ssj_ops@calibrated=98,863
    100% 99.5% 98,863 98,401
    90% 89.8% 88,977 88,821
    80% 79.7% 79,090 78,792
    70% 69.4% 69,204 68,622
    60% 59.8% 59,318 59,080
    50% 49.7% 49,431 49,115
    40% 39.4% 39,545 38,938
    30% 29.8% 29,659 29,496
    20% 19.8% 19,773 19,594
    10% 10.1% 9,886 9,967
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.034' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     101,814
    Calibration 2     100,151
    Calibration 3     100,591
    ssj_ops@calibrated=100,371
    100% 99.9% 100,371 100,251
    90% 89.9% 90,334 90,198
    80% 79.0% 80,297 79,333
    70% 69.6% 70,260 69,852
    60% 59.6% 60,223 59,812
    50% 49.7% 50,185 49,856
    40% 40.1% 40,148 40,270
    30% 29.9% 30,111 29,979
    20% 20.1% 20,074 20,133
    10% 10.1% 10,037 10,137
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.035' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,964
    Calibration 2     99,041
    Calibration 3     99,119
    ssj_ops@calibrated=99,080
    100% 99.3% 99,080 98,381
    90% 89.3% 89,172 88,479
    80% 79.7% 79,264 78,918
    70% 69.6% 69,356 68,963
    60% 60.6% 59,448 59,998
    50% 49.6% 49,540 49,150
    40% 39.7% 39,632 39,299
    30% 29.9% 29,724 29,665
    20% 19.7% 19,816 19,529
    10% 9.8% 9,908 9,720
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.036' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     101,023
    Calibration 2     100,201
    Calibration 3     99,897
    ssj_ops@calibrated=100,049
    100% 100.9% 100,049 100,978
    90% 89.4% 90,044 89,404
    80% 79.0% 80,039 79,014
    70% 69.0% 70,034 69,024
    60% 59.7% 60,029 59,692
    50% 50.1% 50,024 50,079
    40% 39.7% 40,020 39,753
    30% 30.3% 30,015 30,357
    20% 20.6% 20,010 20,649
    10% 10.1% 10,005 10,154
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.037' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,356
    Calibration 2     98,917
    Calibration 3     99,359
    ssj_ops@calibrated=99,138
    100% 99.1% 99,138 98,280
    90% 89.5% 89,224 88,758
    80% 78.9% 79,310 78,244
    70% 69.7% 69,397 69,079
    60% 60.8% 59,483 60,281
    50% 49.5% 49,569 49,094
    40% 40.3% 39,655 39,954
    30% 29.7% 29,741 29,463
    20% 20.0% 19,828 19,844
    10% 9.7% 9,914 9,608
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.038' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,514
    Calibration 2     98,745
    Calibration 3     98,615
    ssj_ops@calibrated=98,680
    100% 100.4% 98,680 99,047
    90% 89.5% 88,812 88,277
    80% 79.3% 78,944 78,231
    70% 69.4% 69,076 68,496
    60% 60.4% 59,208 59,615
    50% 49.9% 49,340 49,208
    40% 39.8% 39,472 39,293
    30% 30.5% 29,604 30,086
    20% 20.1% 19,736 19,797
    10% 10.0% 9,868 9,898
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.039' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     98,800
    Calibration 2     97,513
    Calibration 3     98,010
    ssj_ops@calibrated=97,761
    100% 100.1% 97,761 97,886
    90% 89.5% 87,985 87,487
    80% 78.9% 78,209 77,123
    70% 69.8% 68,433 68,210
    60% 59.2% 58,657 57,861
    50% 49.9% 48,881 48,769
    40% 40.5% 39,105 39,628
    30% 29.2% 29,328 28,586
    20% 20.2% 19,552 19,778
    10% 9.7% 9,776 9,495
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.040' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,458
    Calibration 2     98,320
    Calibration 3     98,484
    ssj_ops@calibrated=98,402
    100% 99.4% 98,402 97,838
    90% 89.9% 88,562 88,503
    80% 79.3% 78,721 78,007
    70% 69.2% 68,881 68,053
    60% 60.5% 59,041 59,573
    50% 50.4% 49,201 49,602
    40% 40.7% 39,361 40,001
    30% 30.2% 29,521 29,707
    20% 19.5% 19,680 19,161
    10% 10.0% 9,840 9,883
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.041' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,595
    Calibration 2     98,429
    Calibration 3     98,593
    ssj_ops@calibrated=98,511
    100% 99.2% 98,511 97,755
    90% 90.0% 88,660 88,656
    80% 78.6% 78,809 77,466
    70% 69.0% 68,958 67,931
    60% 59.2% 59,107 58,356
    50% 51.1% 49,256 50,323
    40% 40.7% 39,405 40,111
    30% 30.6% 29,553 30,166
    20% 20.2% 19,702 19,896
    10% 10.1% 9,851 9,916
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.042' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,224
    Calibration 2     97,314
    Calibration 3     97,113
    ssj_ops@calibrated=97,213
    100% 99.2% 97,213 96,414
    90% 90.1% 87,492 87,593
    80% 79.3% 77,771 77,070
    70% 69.1% 68,049 67,142
    60% 59.8% 58,328 58,085
    50% 49.8% 48,607 48,448
    40% 39.7% 38,885 38,579
    30% 29.3% 29,164 28,532
    20% 20.1% 19,443 19,563
    10% 10.1% 9,721 9,854
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.043' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     98,863
    Calibration 2     98,121
    Calibration 3     97,978
    ssj_ops@calibrated=98,049
    100% 99.9% 98,049 97,952
    90% 89.9% 88,244 88,160
    80% 79.4% 78,439 77,806
    70% 69.3% 68,635 67,936
    60% 60.4% 58,830 59,229
    50% 50.9% 49,025 49,870
    40% 40.0% 39,220 39,235
    30% 30.4% 29,415 29,796
    20% 20.2% 19,610 19,854
    10% 9.9% 9,805 9,683
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.044' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,082
    Calibration 2     98,755
    Calibration 3     98,438
    ssj_ops@calibrated=98,597
    100% 98.4% 98,597 97,023
    90% 89.9% 88,737 88,656
    80% 79.5% 78,877 78,419
    70% 69.8% 69,018 68,831
    60% 60.1% 59,158 59,212
    50% 49.7% 49,298 48,996
    40% 40.3% 39,439 39,747
    30% 29.9% 29,579 29,459
    20% 19.4% 19,719 19,128
    10% 10.1% 9,860 9,979
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.045' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,705
    Calibration 2     98,547
    Calibration 3     98,742
    ssj_ops@calibrated=98,644
    100% 99.5% 98,644 98,108
    90% 89.2% 88,780 87,945
    80% 79.4% 78,915 78,372
    70% 69.2% 69,051 68,284
    60% 60.6% 59,187 59,756
    50% 50.0% 49,322 49,343
    40% 39.8% 39,458 39,306
    30% 30.3% 29,593 29,843
    20% 20.2% 19,729 19,924
    10% 10.0% 9,864 9,866
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.046' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     98,536
    Calibration 2     96,903
    Calibration 3     97,279
    ssj_ops@calibrated=97,091
    100% 99.1% 97,091 96,225
    90% 89.9% 87,382 87,250
    80% 79.6% 77,673 77,283
    70% 69.5% 67,964 67,473
    60% 59.9% 58,255 58,173
    50% 49.6% 48,545 48,123
    40% 39.1% 38,836 37,961
    30% 29.9% 29,127 28,994
    20% 20.1% 19,418 19,553
    10% 10.0% 9,709 9,725
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.047' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     98,845
    Calibration 2     97,309
    Calibration 3     97,380
    ssj_ops@calibrated=97,344
    100% 99.9% 97,344 97,294
    90% 88.8% 87,610 86,423
    80% 78.9% 77,876 76,821
    70% 68.5% 68,141 66,719
    60% 60.4% 58,407 58,785
    50% 49.7% 48,672 48,363
    40% 39.8% 38,938 38,761
    30% 29.9% 29,203 29,100
    20% 20.3% 19,469 19,724
    10% 9.7% 9,734 9,424
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.048' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,510
    Calibration 2     99,020
    Calibration 3     98,992
    ssj_ops@calibrated=99,006
    100% 99.5% 99,006 98,487
    90% 89.5% 89,105 88,565
    80% 79.0% 79,205 78,257
    70% 69.1% 69,304 68,425
    60% 60.1% 59,404 59,480
    50% 50.6% 49,503 50,120
    40% 39.8% 39,602 39,382
    30% 30.2% 29,702 29,861
    20% 19.8% 19,801 19,582
    10% 9.9% 9,901 9,791
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.049' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,949
    Calibration 2     98,734
    Calibration 3     98,887
    ssj_ops@calibrated=98,810
    100% 100.5% 98,810 99,351
    90% 89.6% 88,929 88,568
    80% 79.2% 79,048 78,276
    70% 69.0% 69,167 68,155
    60% 59.8% 59,286 59,109
    50% 50.0% 49,405 49,425
    40% 40.0% 39,524 39,504
    30% 30.0% 29,643 29,655
    20% 19.9% 19,762 19,629
    10% 9.9% 9,881 9,812
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.050' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,343
    Calibration 2     97,938
    Calibration 3     98,637
    ssj_ops@calibrated=98,287
    100% 100.1% 98,287 98,356
    90% 89.5% 88,459 88,000
    80% 79.3% 78,630 77,969
    70% 69.4% 68,801 68,209
    60% 60.0% 58,972 58,972
    50% 50.2% 49,144 49,373
    40% 39.8% 39,315 39,154
    30% 29.5% 29,486 29,016
    20% 20.6% 19,657 20,257
    10% 10.1% 9,829 9,966
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.051' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,556
    Calibration 2     97,809
    Calibration 3     98,192
    ssj_ops@calibrated=98,001
    100% 100.8% 98,001 98,791
    90% 89.7% 88,201 87,949
    80% 79.4% 78,400 77,851
    70% 69.2% 68,600 67,811
    60% 60.5% 58,800 59,280
    50% 49.7% 49,000 48,706
    40% 39.7% 39,200 38,898
    30% 30.3% 29,400 29,661
    20% 19.4% 19,600 19,010
    10% 10.1% 9,800 9,912
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.052' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     100,866
    Calibration 2     99,700
    Calibration 3     99,636
    ssj_ops@calibrated=99,668
    100% 99.4% 99,668 99,050
    90% 89.7% 89,701 89,389
    80% 79.1% 79,734 78,804
    70% 69.1% 69,768 68,919
    60% 59.7% 59,801 59,503
    50% 49.5% 49,834 49,366
    40% 39.8% 39,867 39,687
    30% 29.4% 29,900 29,257
    20% 19.9% 19,934 19,796
    10% 10.0% 9,967 9,945
    Active Idle   0 0
    Graph of results

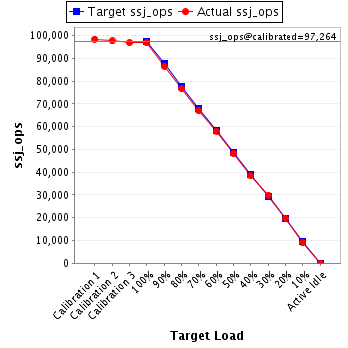

    JVM 'WIN-8JPLLAQK682.053' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     98,434
    Calibration 2     97,637
    Calibration 3     96,891
    ssj_ops@calibrated=97,264
    100% 99.7% 97,264 96,980
    90% 89.0% 87,538 86,607
    80% 78.8% 77,811 76,673
    70% 68.9% 68,085 66,997
    60% 59.7% 58,358 58,076
    50% 49.6% 48,632 48,283
    40% 39.5% 38,906 38,387
    30% 30.7% 29,179 29,849
    20% 20.2% 19,453 19,629
    10% 9.3% 9,726 9,058
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.054' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     98,711
    Calibration 2     99,003
    Calibration 3     99,527
    ssj_ops@calibrated=99,265
    100% 99.7% 99,265 98,952
    90% 89.4% 89,338 88,739
    80% 79.3% 79,412 78,671
    70% 69.3% 69,485 68,786
    60% 59.1% 59,559 58,630
    50% 49.5% 49,632 49,169
    40% 39.9% 39,706 39,559
    30% 30.3% 29,779 30,098
    20% 20.1% 19,853 19,971
    10% 10.1% 9,926 10,008
    Active Idle   0 0
    Graph of results
    JVM 'WIN-8JPLLAQK682.055' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,438
    Calibration 2     99,726
    Calibration 3     99,693
    ssj_ops@calibrated=99,709
    100% 100.4% 99,709 100,129
    90% 89.9% 89,739 89,622
    80% 79.5% 79,768 79,222
    70% 68.9% 69,797 68,698
    60% 59.6% 59,826 59,440
    50% 50.3% 49,855 50,197
    40% 40.2% 39,884 40,081
    30% 29.9% 29,913 29,816
    20% 20.5% 19,942 20,399
    10% 10.3% 9,971 10,272
    Active Idle   0 0
    Graph of results

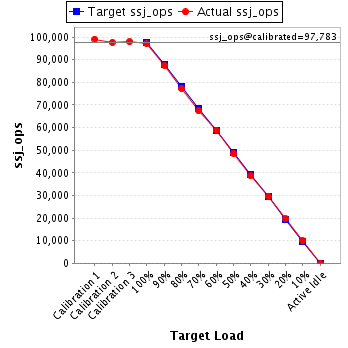

    JVM 'WIN-8JPLLAQK682.056' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     99,117
    Calibration 2     97,631
    Calibration 3     97,935
    ssj_ops@calibrated=97,783
    100% 99.4% 97,783 97,155
    90% 89.7% 88,004 87,670
    80% 79.1% 78,226 77,318
    70% 69.0% 68,448 67,428
    60% 60.2% 58,670 58,851
    50% 49.7% 48,891 48,556
    40% 39.5% 39,113 38,668
    30% 30.4% 29,335 29,679
    20% 20.1% 19,557 19,698
    10% 10.2% 9,778 9,972
    Active Idle   0 0
    Graph of results
