SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| New H3C Technologies Co., Ltd. H3C UniServer R6700 G3 | SPECpower_ssj2008 = 12,747 overall ssj_ops/watt | ||||
| Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Single Node |
| Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | Apr 15, 2019 |
| Hardware Availability: | Dec-2018 | Software Availability: | Dec-2018 | Publication: | May 8, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

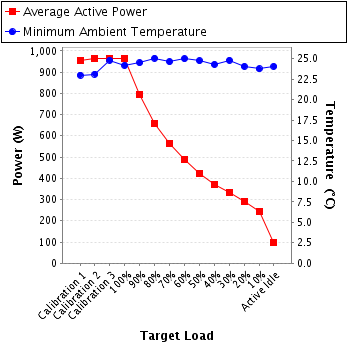

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 952 | 23.0 |
| Calibration 2 | 965 | 23.1 |
| Calibration 3 | 965 | 24.8 |
| 100% | 963 | 24.2 |
| 90% | 793 | 24.5 |
| 80% | 659 | 25.1 |
| 70% | 566 | 24.6 |
| 60% | 489 | 25.0 |
| 50% | 422 | 24.8 |
| 40% | 372 | 24.3 |
| 30% | 332 | 24.8 |
| 20% | 289 | 24.1 |
| 10% | 242 | 23.8 |
| Active Idle | 95.5 | 24.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | CHROMA |
| Model: | 66202 |
| Serial Number: | 662025003870 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 2GB18J02050-0001 |
| Date of Calibration: | 20-Apr-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to PSU 1 and 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | DIGI. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50mm. |

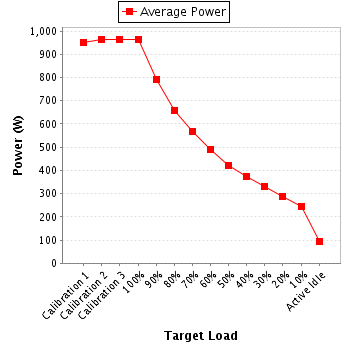

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 232 | 300.0 | 4.13 | 20.0 | 0.995 | 952 | 0.7% |
| Calibration 2 | 233 | 300.0 | 4.17 | 20.0 | 0.995 | 965 | 0.7% |
| Calibration 3 | 231 | 300.0 | 4.19 | 20.0 | 0.995 | 965 | 0.7% |
| 100% | 231 | 300.0 | 4.18 | 20.0 | 0.995 | 963 | 0.7% |
| 90% | 232 | 300.0 | 3.44 | 20.0 | 0.994 | 793 | 0.9% |
| 80% | 232 | 300.0 | 2.87 | 2.0 | 0.991 | 659 | 0.2% |
| 70% | 232 | 300.0 | 2.46 | 2.0 | 0.990 | 566 | 0.2% |
| 60% | 232 | 300.0 | 2.13 | 2.0 | 0.988 | 489 | 0.2% |
| 50% | 232 | 300.0 | 1.85 | 2.0 | 0.984 | 422 | 0.2% |
| 40% | 233 | 300.0 | 1.62 | 2.0 | 0.984 | 372 | 0.3% |
| 30% | 232 | 300.0 | 1.46 | 2.0 | 0.976 | 332 | 0.3% |
| 20% | 232 | 300.0 | 1.28 | 2.0 | 0.971 | 289 | 0.3% |
| 10% | 233 | 300.0 | 1.08 | 2.0 | 0.962 | 242 | 0.3% |
| Active Idle | 233 | 300.0 | 0.487 | 2.0 | 0.842 | 95.5 | 0.7% |
