SPECpower_ssj2008 Host 'SY660-03' Performance Report

SPECpower_ssj2008

Host 'SY660-03' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,851,354 ssj_ops@100% per JVM = 1,481,419
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,903,931
Calibration 2			11,887,363
Calibration 3			11,884,875
ssj_ops@calibrated=11,886,119
100%	99.7%	11,886,119	11,851,354
90%	90.0%	10,697,507	10,693,019
80%	80.1%	9,508,895	9,518,146
70%	69.9%	8,320,283	8,314,321
60%	60.0%	7,131,671	7,135,774
50%	50.0%	5,943,060	5,940,401
40%	39.9%	4,754,448	4,747,511
30%	30.0%	3,565,836	3,562,400
20%	20.0%	2,377,224	2,380,422
10%	10.0%	1,188,612	1,189,942
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

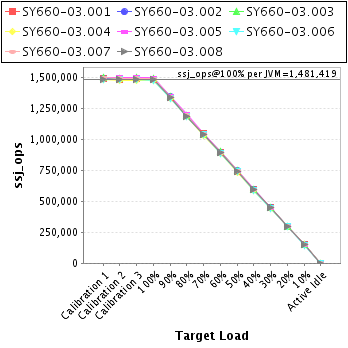

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-03.001	1,480,637
SY660-03.002	1,479,661
SY660-03.003	1,489,737
SY660-03.004	1,470,074
SY660-03.005	1,495,944
SY660-03.006	1,471,455
SY660-03.007	1,485,120
SY660-03.008	1,478,726
ssj_ops@100%	11,851,354
ssj_ops@100% per JVM	1,481,419

JVM 'SY660-03.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,489,039
Calibration 2			1,484,453
Calibration 3			1,485,235
ssj_ops@calibrated=1,484,844
100%	99.7%	1,484,844	1,480,637
90%	90.0%	1,336,360	1,335,918
80%	80.0%	1,187,875	1,187,575
70%	70.2%	1,039,391	1,043,096
60%	60.2%	890,906	894,216
50%	49.9%	742,422	740,611
40%	40.1%	593,938	595,140
30%	30.0%	445,453	445,526
20%	20.2%	296,969	299,563
10%	10.0%	148,484	148,511
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,485,783
Calibration 2			1,491,460
Calibration 3			1,484,972
ssj_ops@calibrated=1,488,216
100%	99.4%	1,488,216	1,479,661
90%	90.1%	1,339,394	1,341,340
80%	80.0%	1,190,573	1,191,041
70%	69.9%	1,041,751	1,040,484
60%	59.8%	892,930	889,577
50%	50.0%	744,108	744,190
40%	39.9%	595,286	593,946
30%	30.0%	446,465	445,780
20%	20.0%	297,643	297,550
10%	10.1%	148,822	149,869
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,495,323
Calibration 2			1,491,483
Calibration 3			1,492,944
ssj_ops@calibrated=1,492,214
100%	99.8%	1,492,214	1,489,737
90%	90.0%	1,342,992	1,342,996
80%	80.0%	1,193,771	1,193,331
70%	69.7%	1,044,550	1,040,788
60%	60.1%	895,328	896,977
50%	50.1%	746,107	747,674
40%	39.9%	596,885	595,630
30%	30.0%	447,664	447,837
20%	20.0%	298,443	298,809
10%	10.0%	149,221	149,741
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

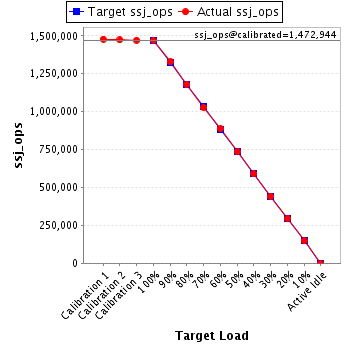

JVM 'SY660-03.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,478,464
Calibration 2			1,473,980
Calibration 3			1,471,908
ssj_ops@calibrated=1,472,944
100%	99.8%	1,472,944	1,470,074
90%	90.2%	1,325,649	1,328,168
80%	80.2%	1,178,355	1,181,225
70%	69.8%	1,031,061	1,027,992
60%	60.2%	883,766	887,066
50%	49.9%	736,472	734,731
40%	40.0%	589,178	589,002
30%	30.1%	441,883	442,982
20%	19.9%	294,589	293,595
10%	10.0%	147,294	147,435
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,495,493
Calibration 2			1,496,926
Calibration 3			1,499,149
ssj_ops@calibrated=1,498,037
100%	99.9%	1,498,037	1,495,944
90%	89.8%	1,348,234	1,345,692
80%	80.3%	1,198,430	1,203,447
70%	69.9%	1,048,626	1,047,364
60%	60.1%	898,822	900,438
50%	49.7%	749,019	744,610
40%	40.1%	599,215	600,530
30%	29.8%	449,411	446,813
20%	20.0%	299,607	299,869
10%	10.0%	149,804	149,720
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

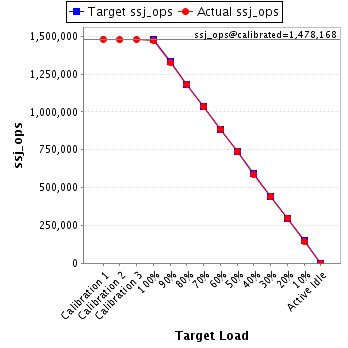

JVM 'SY660-03.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,481,097
Calibration 2			1,477,411
Calibration 3			1,478,924
ssj_ops@calibrated=1,478,168
100%	99.5%	1,478,168	1,471,455
90%	89.8%	1,330,351	1,326,789
80%	80.0%	1,182,534	1,182,755
70%	69.9%	1,034,717	1,033,919
60%	60.0%	886,901	886,321
50%	50.0%	739,084	738,914
40%	39.8%	591,267	588,371
30%	29.8%	443,450	440,349
20%	20.1%	295,634	297,499
10%	9.9%	147,817	146,382
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,494,812
Calibration 2			1,489,523
Calibration 3			1,488,679
ssj_ops@calibrated=1,489,101
100%	99.7%	1,489,101	1,485,120
90%	89.9%	1,340,191	1,338,086
80%	80.1%	1,191,281	1,192,888
70%	69.9%	1,042,371	1,041,266
60%	59.9%	893,461	892,113
50%	50.2%	744,551	747,093
40%	39.7%	595,640	591,516
30%	30.1%	446,730	447,861
20%	19.9%	297,820	296,997
10%	10.0%	148,910	149,578
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,483,920
Calibration 2			1,482,127
Calibration 3			1,483,064
ssj_ops@calibrated=1,482,596
100%	99.7%	1,482,596	1,478,726
90%	90.0%	1,334,336	1,334,030
80%	80.0%	1,186,076	1,185,884
70%	70.1%	1,037,817	1,039,412
60%	60.0%	889,557	889,067
50%	50.1%	741,298	742,578
40%	40.0%	593,038	593,377
30%	30.0%	444,779	445,252
20%	20.0%	296,519	296,539
10%	10.0%	148,260	148,705
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
