SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2018 Standard Performance Evaluation Corporation
| Supermicro Inc. Server 1123US-TR4 | SPECpower_ssj2008 = 10,206 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro Inc. | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro Inc. | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | Aug 24, 2018 |
| Hardware Availability: | Aug-2017 | Software Availability: | Mar-2018 | Publication: | Sep 27, 2018 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

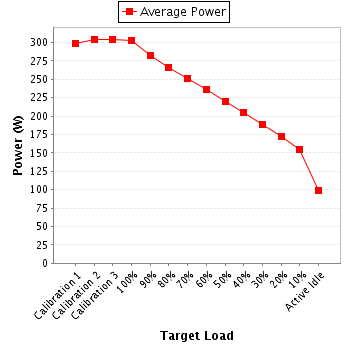

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 299 | 20.6 |
| Calibration 2 | 304 | 20.8 |
| Calibration 3 | 304 | 20.9 |
| 100% | 303 | 21.0 |
| 90% | 282 | 21.0 |
| 80% | 266 | 21.0 |
| 70% | 251 | 20.9 |
| 60% | 236 | 20.9 |
| 50% | 220 | 20.9 |
| 40% | 204 | 20.9 |
| 30% | 189 | 20.9 |
| 20% | 173 | 20.8 |
| 10% | 154 | 20.8 |
| Active Idle | 98.4 | 20.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT310 |
| Serial Number: | C3TA01001E |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Omnio Calibration Lab. Co., Ltd. |
| Calibration Label: | OCL-2351803H15G8 |
| Date of Calibration: | 16-Mar-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 223 | 300.0 | 1.37 | 2.0 | 0.975 | 299 | 0.2% |
| Calibration 2 | 223 | 300.0 | 1.40 | 2.0 | 0.975 | 304 | 0.2% |
| Calibration 3 | 224 | 300.0 | 1.40 | 2.0 | 0.975 | 304 | 0.2% |
| 100% | 223 | 300.0 | 1.39 | 2.0 | 0.975 | 303 | 0.2% |
| 90% | 223 | 300.0 | 1.30 | 2.0 | 0.974 | 282 | 0.3% |
| 80% | 223 | 300.0 | 1.22 | 2.0 | 0.972 | 266 | 0.3% |
| 70% | 224 | 300.0 | 1.16 | 2.0 | 0.969 | 251 | 0.3% |
| 60% | 224 | 300.0 | 1.09 | 2.0 | 0.970 | 236 | 0.3% |
| 50% | 224 | 300.0 | 1.00 | 1.0 | 0.978 | 220 | 0.2% |
| 40% | 224 | 300.0 | 0.934 | 1.0 | 0.977 | 204 | 0.2% |
| 30% | 224 | 300.0 | 0.866 | 1.0 | 0.972 | 189 | 0.2% |
| 20% | 224 | 300.0 | 0.798 | 1.0 | 0.967 | 173 | 0.2% |
| 10% | 224 | 300.0 | 0.719 | 1.0 | 0.959 | 154 | 0.3% |
| Active Idle | 224 | 300.0 | 0.478 | 1.0 | 0.918 | 98.4 | 0.3% |
