Lenovo Global Technology ThinkSystem SD530 ssj_ops@100% = 19,865,096
ssj_ops@100% per Host = 4,966,274
ssj_ops@100% per JVM = 88,683
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Taipei, Taiwan Test Date: Aug 24, 2018
Hardware Availability: Jul-2018 Software Availability: Jan-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,871,358
Calibration 2     20,333,579
Calibration 3     19,982,804
ssj_ops@calibrated=20,158,192
100% 98.5% 20,158,192 19,865,096
90% 90.4% 18,142,373 18,225,506
80% 80.0% 16,126,553 16,128,575
70% 70.0% 14,110,734 14,113,010
60% 60.0% 12,094,915 12,089,103
50% 50.0% 10,079,096 10,084,156
40% 39.9% 8,063,277 8,052,702
30% 30.0% 6,047,458 6,044,094
20% 20.0% 4,031,638 4,035,607
10% 10.0% 2,015,819 2,017,884
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 224 448 768 4 224
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ThinkSystem D2 Enclosure
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1600
Power Supply Details: Lenovo P/N SP50L09213
Network Switch: Lenovo ThinkSystem NE1032T RackSwitch
Network Switch Details: 24x 1/10 Gb Ethernet (RJ-45) fixed ports and 8x SFP+ ports that support 1 GbE and 10 GbE optical transceivers, active optical cables (AOCs), and direct attach copper (DAC) cables
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: Network switch did not measure for Power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware per Node
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD530
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28-Core, 2.10 GHz, 39424 KB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,2,3,6,7,8,9,10,11,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10Gb SFP+
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Lenovo Power Plan V1.0 for Windows Server 2012 R2 in OS
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: TEE123N (Jul 12 2018)
Management Firmware Version: TEI325Q (Jul 19 2018)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Applied the OS patches: KB4056898
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Host Instance Summary
Host ssj_ops@100%
node-1 5,000,511
node-2 4,939,729
node-3 4,957,959
node-4 4,966,897
ssj_ops@100% 19,865,096
ssj_ops@100% per Host 4,966,274
ssj_ops@100% per JVM 88,683
Graph of per-host results
Host 'node-1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,218,480
Calibration 2     5,133,821
Calibration 3     5,017,570
ssj_ops@calibrated=5,075,696
100% 98.5% 5,075,696 5,000,511
90% 90.5% 4,568,126 4,594,122
80% 80.1% 4,060,557 4,065,184
70% 70.1% 3,552,987 3,558,584
60% 59.9% 3,045,417 3,041,909
50% 50.0% 2,537,848 2,538,628
40% 39.9% 2,030,278 2,027,627
30% 30.0% 1,522,709 1,524,878
20% 20.0% 1,015,139 1,014,857
10% 10.0% 507,570 508,341
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node-2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,221,105
Calibration 2     5,081,904
Calibration 3     4,998,744
ssj_ops@calibrated=5,040,324
100% 98.0% 5,040,324 4,939,729
90% 90.4% 4,536,292 4,554,840
80% 79.9% 4,032,259 4,026,550
70% 69.9% 3,528,227 3,524,227
60% 60.0% 3,024,194 3,023,592
50% 50.1% 2,520,162 2,523,272
40% 39.9% 2,016,130 2,011,058
30% 29.9% 1,512,097 1,509,432
20% 20.0% 1,008,065 1,008,969
10% 10.0% 504,032 504,249
Active Idle   0 0

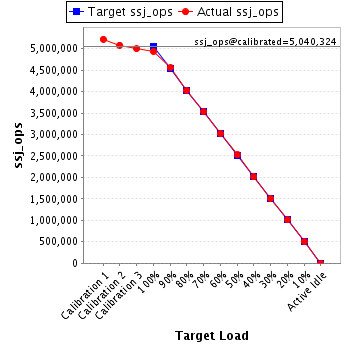

Graph of results
See the Host Performance Report for additional details.
Host 'node-3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,225,704
Calibration 2     5,080,752
Calibration 3     4,969,927
ssj_ops@calibrated=5,025,339
100% 98.7% 5,025,339 4,957,959
90% 90.4% 4,522,805 4,545,256
80% 80.0% 4,020,272 4,022,610
70% 70.1% 3,517,738 3,521,079
60% 60.0% 3,015,204 3,013,484
50% 50.1% 2,512,670 2,515,710
40% 40.0% 2,010,136 2,009,637
30% 29.9% 1,507,602 1,503,693
20% 20.0% 1,005,068 1,005,614
10% 10.0% 502,534 501,240
Active Idle   0 0

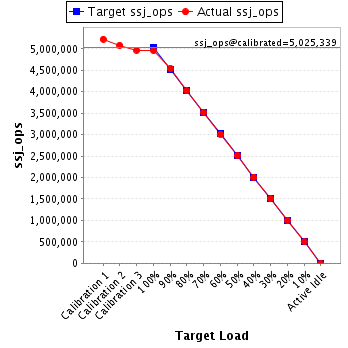

Graph of results
See the Host Performance Report for additional details.
Host 'node-4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,206,069
Calibration 2     5,037,102
Calibration 3     4,996,563
ssj_ops@calibrated=5,016,833
100% 99.0% 5,016,833 4,966,897
90% 90.3% 4,515,149 4,531,288
80% 80.0% 4,013,466 4,014,230
70% 69.9% 3,511,783 3,509,120
60% 60.0% 3,010,100 3,010,118
50% 50.0% 2,508,416 2,506,547
40% 40.0% 2,006,733 2,004,380
30% 30.0% 1,505,050 1,506,091
20% 20.1% 1,003,367 1,006,168
10% 10.0% 501,683 504,054
Active Idle   0 0

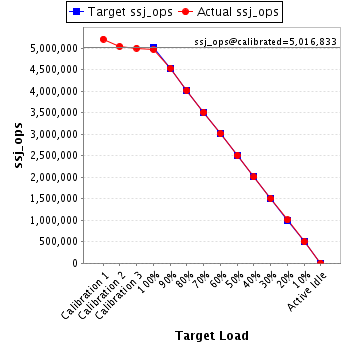

Graph of results
See the Host Performance Report for additional details.
