Hewlett Packard Enterprise ProLiant ML350 Gen10 ssj_ops@100% = 5,653,296
ssj_ops@100% per JVM = 1,413,324
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 28, 2018
Hardware Availability: Jun-2018 Software Availability: Jul-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,657,391
Calibration 2     5,659,140
Calibration 3     5,667,839
ssj_ops@calibrated=5,663,490
100% 99.8% 5,663,490 5,653,296
90% 90.0% 5,097,141 5,095,429
80% 80.0% 4,530,792 4,532,419
70% 69.9% 3,964,443 3,960,040
60% 60.0% 3,398,094 3,399,113
50% 50.0% 2,831,745 2,830,783
40% 40.0% 2,265,396 2,264,764
30% 30.0% 1,699,047 1,700,228
20% 20.0% 1,132,698 1,135,194
10% 10.0% 566,349 565,772
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant ML350 Gen10
Form Factor: Tower
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titatinum Hot Plug Low Halogen Power Supply Kit (865438-B21) 96%
Disk Drive: HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 369i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: none
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP3
OS Version: Kernel 4.4.120-94.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode) version 1.7.0_80
JVM Command-line Options: -server -Xmn23000m -Xms26000m -Xmx26000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=14 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --physcpubind=<node [0-3] cpu-list> --membind=[0-3]
JVM Instances: 4
JVM Initial Heap (MB): 26000
JVM Maximum Heap (MB): 26000
JVM Address Bits: 64
Boot Firmware Version: U41 v1.42 (06/20/2018)
Management Firmware Version: 1.30 May 31 2018
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version:2018.06.0 (26 Jun 2018), HPE Microprocessor Vulnerability ROM Updates (spp_supplement-2018.06.0.2) Version:2018.06.0(9 Jul 2018); ucode-intel-20180312-13.17.1
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
ml350-ssj-sles12.001 1,412,316
ml350-ssj-sles12.002 1,420,940
ml350-ssj-sles12.003 1,412,560
ml350-ssj-sles12.004 1,407,480
ssj_ops@100% 5,653,296
ssj_ops@100% per JVM 1,413,324
Graph of per-instance results
JVM 'ml350-ssj-sles12.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,414,275
Calibration 2     1,416,598
Calibration 3     1,415,199
ssj_ops@calibrated=1,415,898
100% 99.7% 1,415,898 1,412,316
90% 90.1% 1,274,309 1,275,568
80% 80.2% 1,132,719 1,136,249
70% 70.0% 991,129 991,357
60% 60.1% 849,539 851,124
50% 49.9% 707,949 707,086
40% 40.1% 566,359 567,631
30% 30.0% 424,770 425,310
20% 20.0% 283,180 283,582
10% 10.0% 141,590 141,226
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

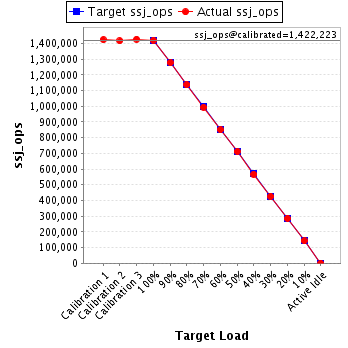

JVM 'ml350-ssj-sles12.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,423,452
Calibration 2     1,416,903
Calibration 3     1,427,544
ssj_ops@calibrated=1,422,223
100% 99.9% 1,422,223 1,420,940
90% 89.8% 1,280,001 1,277,782
80% 80.0% 1,137,779 1,137,480
70% 69.9% 995,556 994,534
60% 59.8% 853,334 849,909
50% 50.1% 711,112 712,104
40% 39.9% 568,889 567,247
30% 30.0% 426,667 426,024
20% 20.1% 284,445 285,745
10% 10.0% 142,222 142,606
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ml350-ssj-sles12.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,411,427
Calibration 2     1,415,614
Calibration 3     1,414,455
ssj_ops@calibrated=1,415,034
100% 99.8% 1,415,034 1,412,560
90% 90.1% 1,273,531 1,275,004
80% 79.9% 1,132,028 1,130,204
70% 69.9% 990,524 988,548
60% 60.1% 849,021 851,015
50% 50.0% 707,517 708,058
40% 39.9% 566,014 565,279
30% 30.0% 424,510 424,523
20% 20.0% 283,007 283,670
10% 10.0% 141,503 141,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ml350-ssj-sles12.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,408,236
Calibration 2     1,410,025
Calibration 3     1,410,642
ssj_ops@calibrated=1,410,334
100% 99.8% 1,410,334 1,407,480
90% 89.8% 1,269,300 1,267,075
80% 80.0% 1,128,267 1,128,487
70% 69.9% 987,233 985,601
60% 60.1% 846,200 847,065
50% 49.9% 705,167 703,536
40% 40.0% 564,133 564,607
30% 30.1% 423,100 424,371
20% 20.0% 282,067 282,197
10% 9.9% 141,033 140,206
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
