Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,720,497
ssj_ops@100% per JVM = 1,430,124
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,734,017
Calibration 2     5,733,422
Calibration 3     5,746,158
ssj_ops@calibrated=5,739,790
100% 99.7% 5,739,790 5,720,497
90% 90.0% 5,165,811 5,165,326
80% 80.1% 4,591,832 4,600,421
70% 70.0% 4,017,853 4,016,109
60% 60.1% 3,443,874 3,451,370
50% 50.0% 2,869,895 2,867,229
40% 39.9% 2,295,916 2,291,538
30% 29.9% 1,721,937 1,718,632
20% 20.0% 1,147,958 1,148,058
10% 10.0% 573,979 574,609
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE03.001 1,428,239
NODE03.002 1,426,232
NODE03.003 1,437,185
NODE03.004 1,428,840
ssj_ops@100% 5,720,497
ssj_ops@100% per JVM 1,430,124

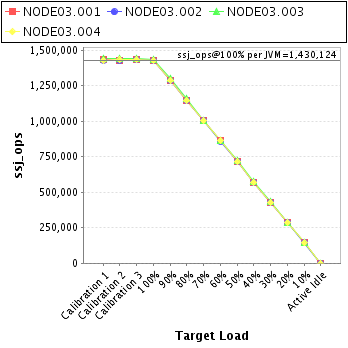

Graph of per-instance results
JVM 'NODE03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,431,457
Calibration 2     1,429,981
Calibration 3     1,434,402
ssj_ops@calibrated=1,432,191
100% 99.7% 1,432,191 1,428,239
90% 90.0% 1,288,972 1,288,347
80% 80.1% 1,145,753 1,147,294
70% 69.9% 1,002,534 1,001,776
60% 60.2% 859,315 862,347
50% 49.9% 716,096 714,399
40% 39.9% 572,877 571,714
30% 29.9% 429,657 428,597
20% 20.1% 286,438 287,445
10% 10.0% 143,219 143,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

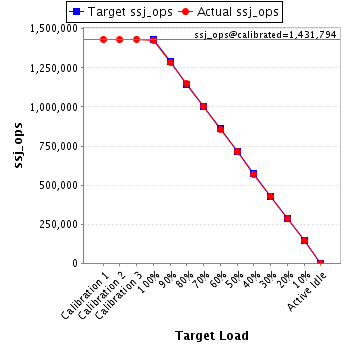

JVM 'NODE03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,430,319
Calibration 2     1,430,023
Calibration 3     1,433,566
ssj_ops@calibrated=1,431,794
100% 99.6% 1,431,794 1,426,232
90% 89.8% 1,288,615 1,286,183
80% 80.2% 1,145,435 1,148,410
70% 70.1% 1,002,256 1,003,072
60% 59.9% 859,076 857,852
50% 50.0% 715,897 715,368
40% 39.9% 572,718 570,866
30% 30.0% 429,538 429,654
20% 20.0% 286,359 286,080
10% 10.0% 143,179 142,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

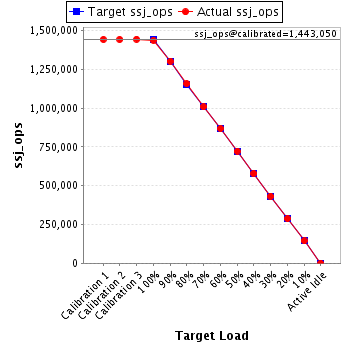

JVM 'NODE03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,441,820
Calibration 2     1,442,087
Calibration 3     1,444,012
ssj_ops@calibrated=1,443,050
100% 99.6% 1,443,050 1,437,185
90% 90.2% 1,298,745 1,302,304
80% 80.2% 1,154,440 1,157,881
70% 69.8% 1,010,135 1,007,895
60% 60.1% 865,830 867,596
50% 50.1% 721,525 722,932
40% 40.0% 577,220 577,410
30% 30.0% 432,915 432,631
20% 19.9% 288,610 286,941
10% 10.0% 144,305 144,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,430,421
Calibration 2     1,431,332
Calibration 3     1,434,178
ssj_ops@calibrated=1,432,755
100% 99.7% 1,432,755 1,428,840
90% 89.9% 1,289,479 1,288,492
80% 80.0% 1,146,204 1,146,835
70% 70.0% 1,002,928 1,003,366
60% 60.3% 859,653 863,576
50% 49.9% 716,377 714,529
40% 39.9% 573,102 571,550
30% 29.9% 429,826 427,751
20% 20.1% 286,551 287,591
10% 10.0% 143,275 143,764
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
