Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,720,994
ssj_ops@100% per JVM = 1,430,249
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,712,558
Calibration 2     5,732,085
Calibration 3     5,745,310
ssj_ops@calibrated=5,738,697
100% 99.7% 5,738,697 5,720,994
90% 90.0% 5,164,828 5,167,435
80% 80.0% 4,590,958 4,591,276
70% 70.0% 4,017,088 4,018,365
60% 59.9% 3,443,218 3,436,964
50% 50.0% 2,869,349 2,868,447
40% 40.0% 2,295,479 2,298,011
30% 30.0% 1,721,609 1,720,403
20% 20.0% 1,147,739 1,148,348
10% 10.0% 573,870 573,984
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE01.001 1,419,388
NODE01.002 1,440,904
NODE01.003 1,426,834
NODE01.004 1,433,869
ssj_ops@100% 5,720,994
ssj_ops@100% per JVM 1,430,249

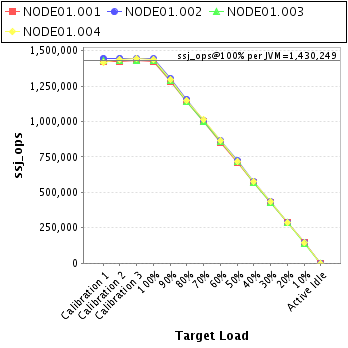

Graph of per-instance results
JVM 'NODE01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,423,890
Calibration 2     1,423,297
Calibration 3     1,427,005
ssj_ops@calibrated=1,425,151
100% 99.6% 1,425,151 1,419,388
90% 89.8% 1,282,636 1,280,072
80% 80.2% 1,140,121 1,142,459
70% 69.9% 997,606 996,833
60% 59.9% 855,091 853,641
50% 50.0% 712,576 712,783
40% 40.1% 570,061 571,864
30% 29.8% 427,545 425,229
20% 20.1% 285,030 285,986
10% 10.1% 142,515 143,420
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,445,451
Calibration 2     1,446,188
Calibration 3     1,446,184
ssj_ops@calibrated=1,446,186
100% 99.6% 1,446,186 1,440,904
90% 90.1% 1,301,567 1,302,816
80% 80.0% 1,156,949 1,156,528
70% 69.8% 1,012,330 1,009,573
60% 59.8% 867,711 864,209
50% 49.9% 723,093 721,759
40% 40.0% 578,474 578,103
30% 29.9% 433,856 432,731
20% 19.9% 289,237 288,414
10% 10.1% 144,619 145,518
Active Idle   0 0

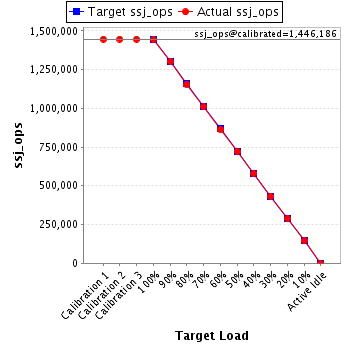

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,427,440
Calibration 2     1,426,410
Calibration 3     1,430,934
ssj_ops@calibrated=1,428,672
100% 99.9% 1,428,672 1,426,834
90% 90.2% 1,285,805 1,288,133
80% 80.0% 1,142,938 1,142,431
70% 70.0% 1,000,070 1,000,585
60% 59.9% 857,203 855,953
50% 50.0% 714,336 714,148
40% 40.0% 571,469 571,244
30% 30.1% 428,602 430,419
20% 20.0% 285,734 286,007
10% 9.9% 142,867 141,755
Active Idle   0 0

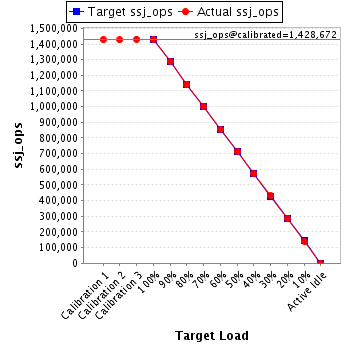

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,415,778
Calibration 2     1,436,190
Calibration 3     1,441,187
ssj_ops@calibrated=1,438,689
100% 99.7% 1,438,689 1,433,869
90% 90.1% 1,294,820 1,296,414
80% 79.9% 1,150,951 1,149,859
70% 70.3% 1,007,082 1,011,374
60% 60.0% 863,213 863,161
50% 50.0% 719,344 719,758
40% 40.1% 575,475 576,801
30% 30.0% 431,607 432,024
20% 20.0% 287,738 287,941
10% 10.0% 143,869 143,291
Active Idle   0 0

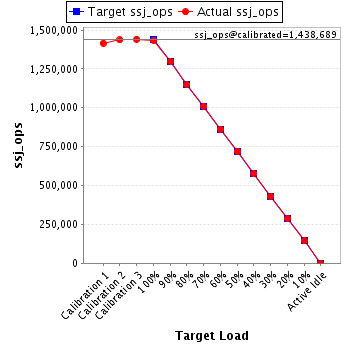

Graph of results
See the JVM Instance Performance Report for additional details.
